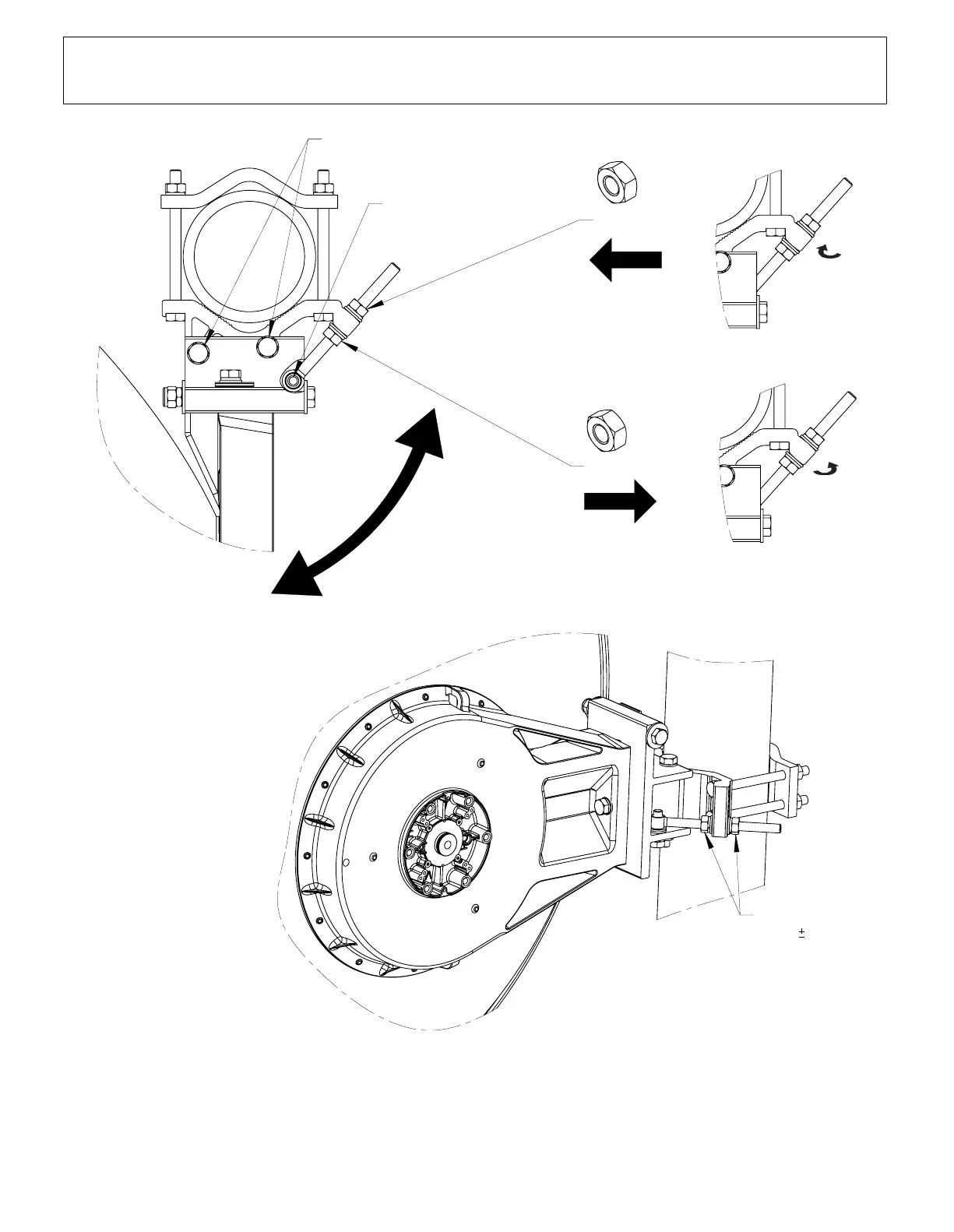

Loosen screws G1
Loosen screws G2
Pan Left
Pan Right
Azimuth adjustment
Adjust eyebolt.
On completion tighten
screws
G1
to 50Nm ± 5% and
screw
G2
to 38Nm ± 5%
Adjustment Range ±15°
Torque to
38Nm
5%
Page 19 of 20
7706805
MOUNT ATTACHMENT AND ALIGNMENT
SECTION 7
INSTALLATION
INSTRUCTIONS
