INS_CNGE11FX3TX8MS[POE][HO] Rev. 11.6.17 PAGE 304
INSTRUCTION MANUAL CNGE11FX3TX8MS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Configuring ERPS on Switch 3

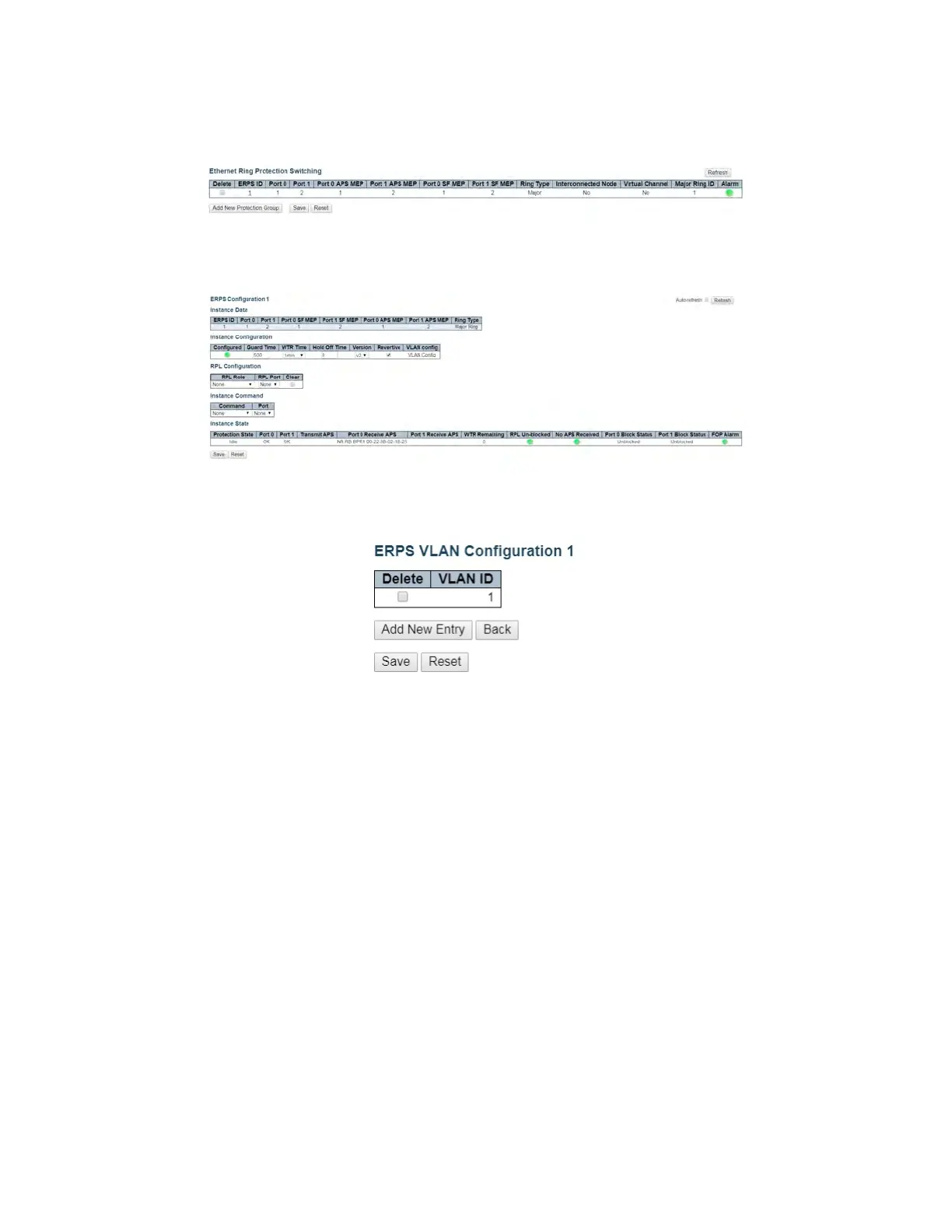

1. On switch 3, click ERPS followed by Add New Protection Group.
Figure 18 – Add New Protection Group (Switch3)
2. Edit ERPS1 by clicking 1. No action is required on switch 3. Keep the RPL owner at none.
Figure 19 – ERPS 1 (Switch 2) Configuration
3. Click VLAN Config to edit the VLAN.
Figure 20 – ERPS VLAN (Switch 3) Configuration
