INS_CNGE11FX3TX8MS[POE][HO] Rev. 11.6.17 PAGE 303
INSTRUCTION MANUAL CNGE11FX3TX8MS[POE][HO]
TECH SUPPORT: 1.888.678.9427

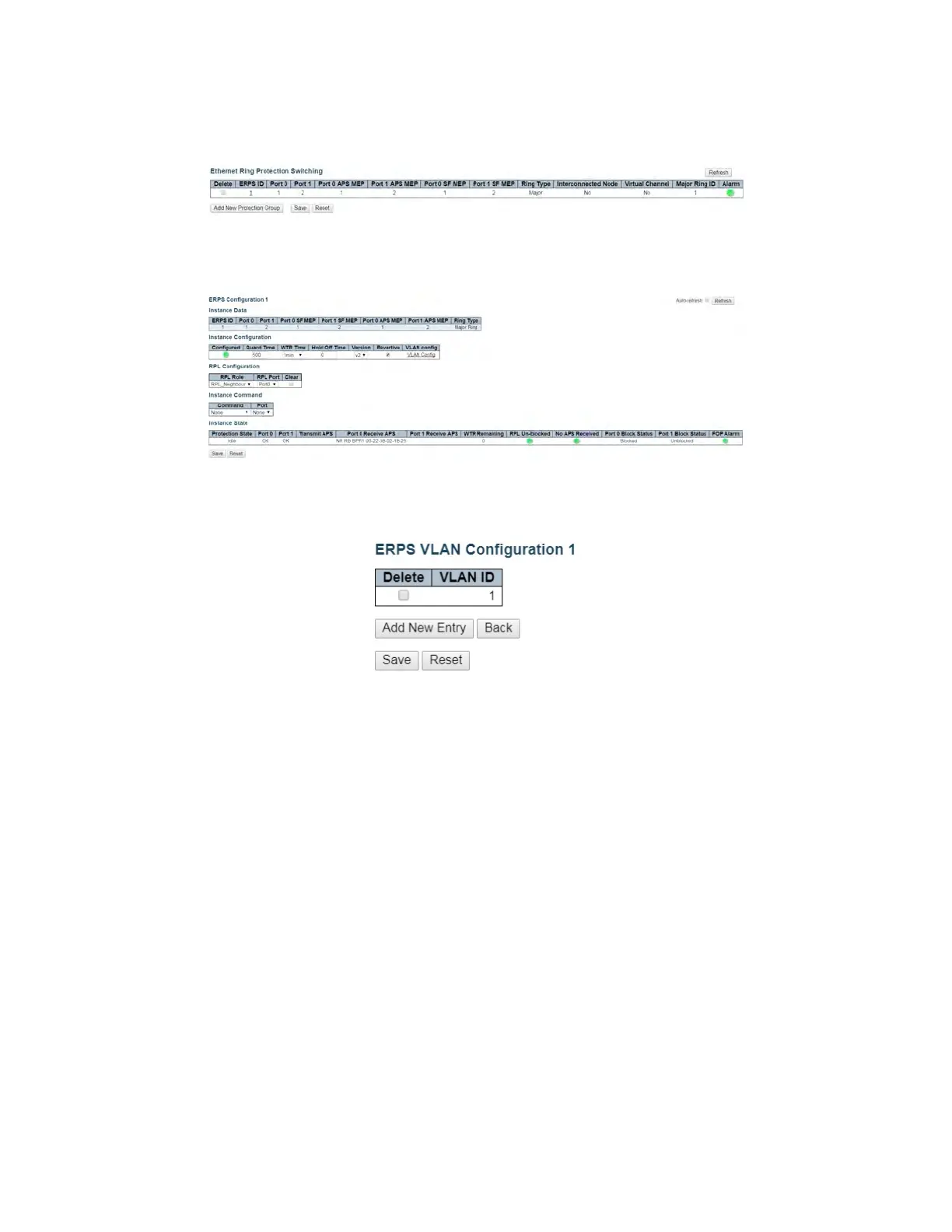

Configuring ERPS on Switch 2, the RPL Neighbor
1. On switch 2, click ERPS followed by Add New Protection Group.
Figure 15 – Add New Protection Group (Switch 2) Configuration
2. Edit ERPS1 by clicking 1. Configure the device as shown, and click Save or Apply.
Figure 16 – ERPS 1 (Switch 2) Configuration
3. Click VLAN Config to edit the VLAN.
Figure 17 – ERPS VLAN (Switch 2) Configuration
