8. ADJUSTMENT
For portalters with diagonal wings, the
standard runners must be replaced by the
ones supplied separately.

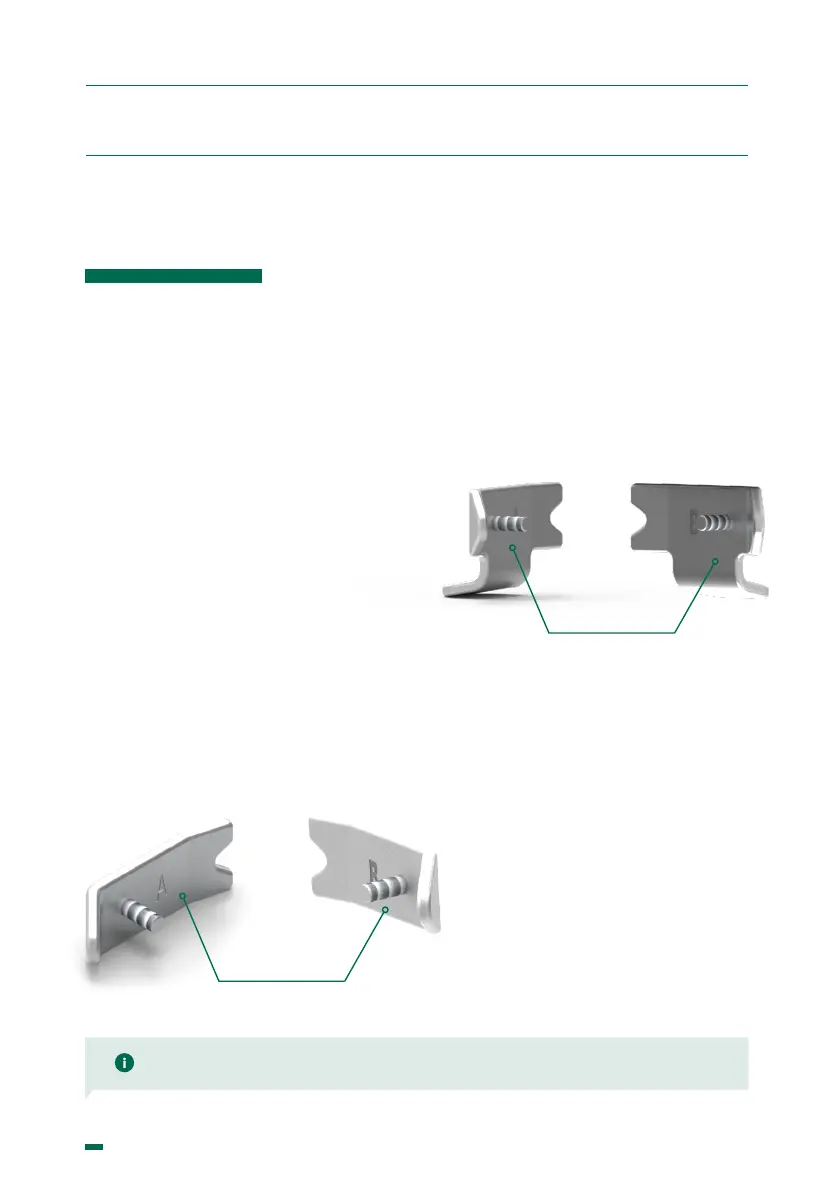

Engraving
indicating
the position
NOTE: The PK holder is not adjustable.
Serial conguration
Engraving
indicating
the position
Serial conguration
8.2. PK MODEL SUPPORT
ADJUSTMENT
The standard conguration is useful for
most portalters on the market. However,
depending on the geometry of each
portalter, it can be adjusted as follows for
a good t:
1. Release the runners, for this, release
the screw that xes them to the holder
with the help of a at-head screwdriver
(Fig.3).
2. The runners have an A and a B
engraved on the inside.
3. Once the runners have been removed,
mount them in the opposite position to
that they were in when they arrived, i.e.
the A where the B was and the B where
the A was to get the adjustment so that
the portalter ts and is held properly.
