12.4. REPLACING THE STAINLESS
STEEL GRILLE
The grinder’s grille ensures uniformity
in the dose and reduces static build-up.
Located inside the mouth of the coffee
outlet (
),it can be replaced as follows:
1. Remove the control knob (
)
loosening the xing worm screw with
the key supplied.
2. Remove the four xing screws of the
cover, using a PH2 Philips screwdriver.
3. Remove the worm screw with the
H3 Allen key and then remove the LEDs
sheet with a Philips PZ2 screwdriver
taking care not to damage the LEDs.
4. Loosen the mouth of coffee outlet
(
) without removing it out with a
Philips PH2 screwdriver.
5. Remove the four xing screws of the
cover, using a PH2 Philips screwdriver.
6. Remove the mouth of the coffee
outlet (
), after loosening the two
xing screws, using a PH2 Philips
screwdriver. This way, you have access
to the stainless steel grill, and can
replace it with a new one. The grille
can be replaced without removing any
screws. MAKE SURE IT IS CORRECTLY
ORIENTED.

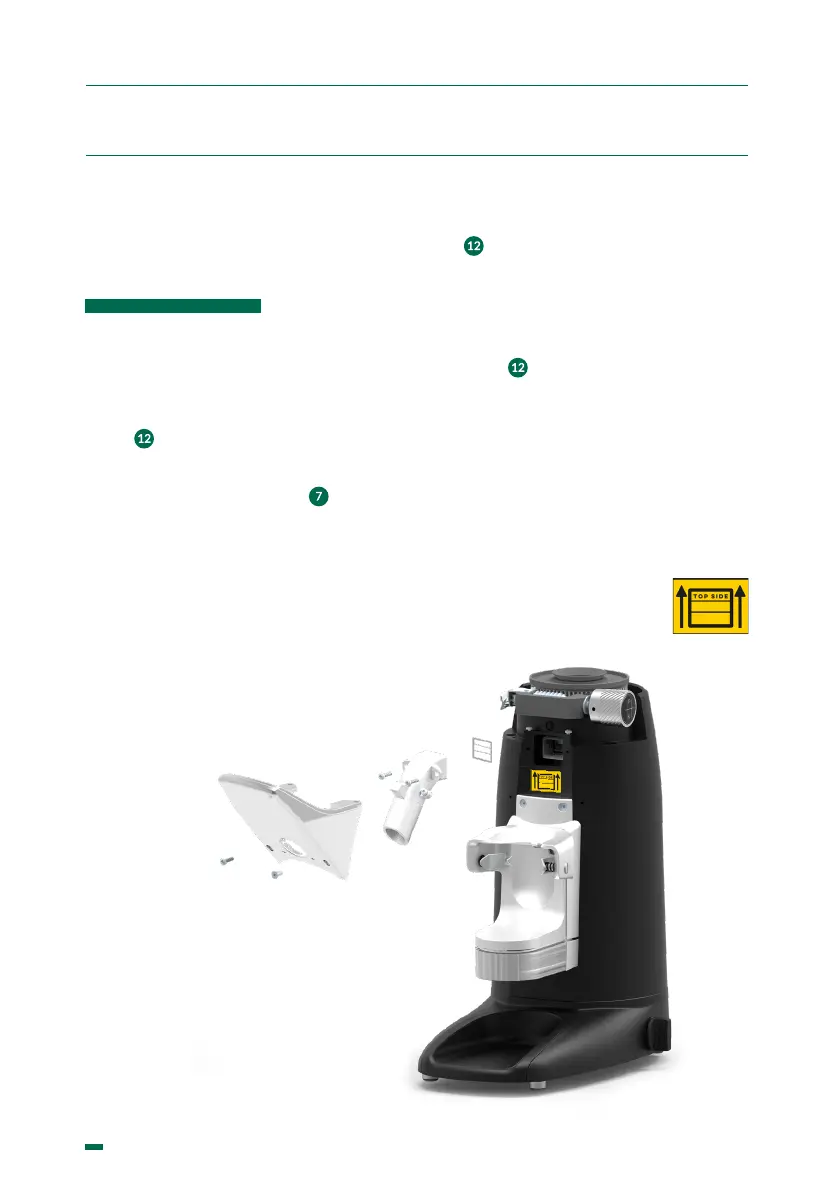

Fig. 9
