C–2 Maintenance and Service Guide
Screw Listing

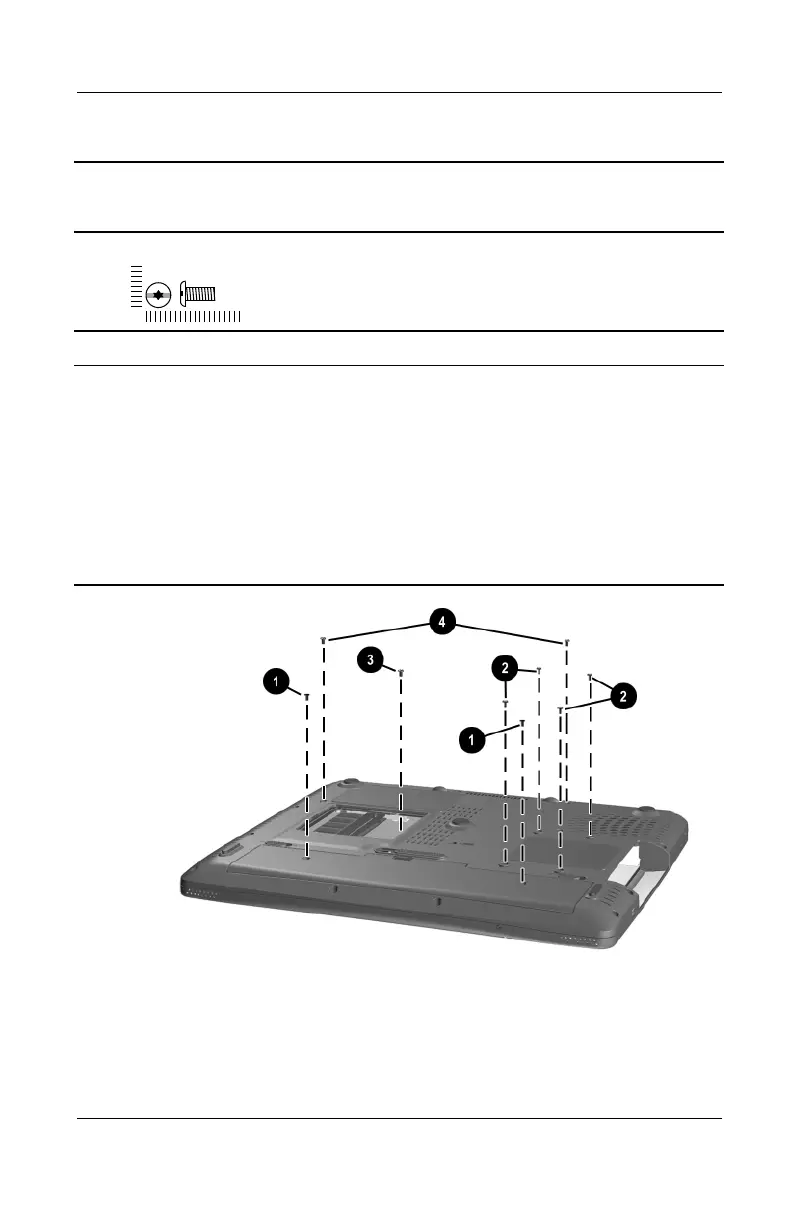

Figure C-1. Torx T8 M2.5 × 7.0 Screw Location
Table C-1
Torx T8 M2.5 × 7.0 Screw
Color Qty. Length Thread
Head
Width
Black 24 7.0 mm 2.5 mm 5.0 mm
Where used:
1 Two screws that secure the battery bay space saver to the notebook
(documented in Section 5.3)
2 Four screws that secure the hard drive to the notebook
(documented in Section 5.3)
3 One screw that secures the optical drive to the notebook
(documented in Section 5.6)
4 Two screws that secure the LED switch cover to the notebook
(documented in Section 5.7)
mm
307503-003.book Page 2 Friday, April 4, 2003 3:37 PM
