Removal and Replacement Procedures
Maintenance and Service Guide 5–5
b. Slide the battery pack lock latches 1 to the right
(Figure 5-2).
c. Slide and hold the battery pack release latch
2 to the
right.
d. Use the notch
3 in the battery pack to swing the front
edge of the battery pack up and back
4.
e. Remove the battery pack.

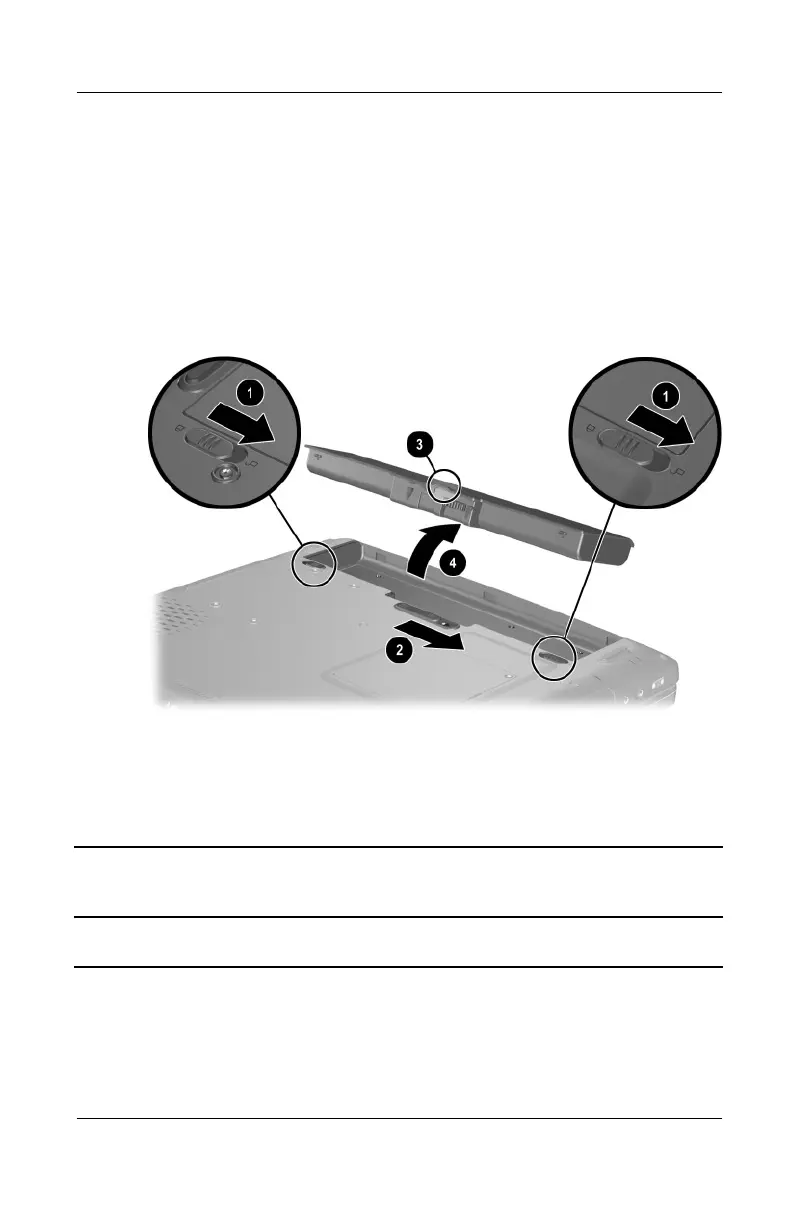

Figure 5-2. Removing the Battery Pack
Reverse the preceding procedure to install the battery pack.
4. Remove the battery bay space saver by following these steps:
a. Turn the notebook bottom side up with the rear panel
facing you.
Battery Bay Space Saver
Spare Part Number Information
For use only with Compaq 800 models 313579-001
