Removal and Replacement Procedures
Maintenance and Service Guide 5–11
6. Spread the retaining tabs 1 securing the memory expansion
board to the system board (Figure 5-8). The memory
expansion board rises at a 45-degree angle.
7. Pull the memory expansion board away from the connector at
a 45-degree angle 2.

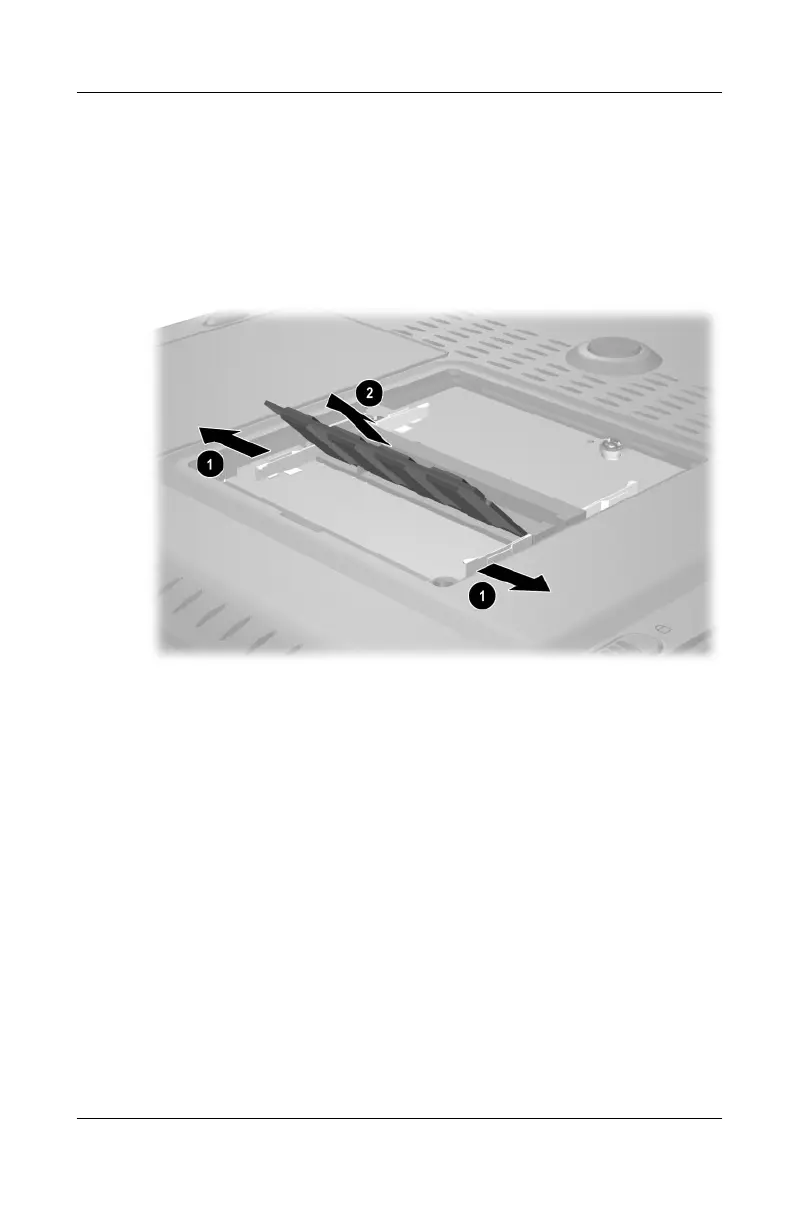

Figure 5-8. Removing a Memory Expansion Board
Reverse the preceding procedure to install a memory expansion
board and the memory expansion compartment cover.
307503-003.book Page 11 Friday, April 4, 2003 3:37 PM
