5–16 Maintenance and Service Guide
Removal and Replacement Procedures
5. Turn the notebook top side up with the front facing you and
open the notebook.
6. Lift the back edge of the keyboard 1 until it rests at a
45-degree angle (Figure 5-13).
7. Slide the keyboard toward the back of the notebook 2 until
the tabs on the front edge of the keyboard are removed from
the slots in the base enclosure.
8. Swing the back edge of the keyboard up and forward 3 and
rest the keyboard on the palm rest.

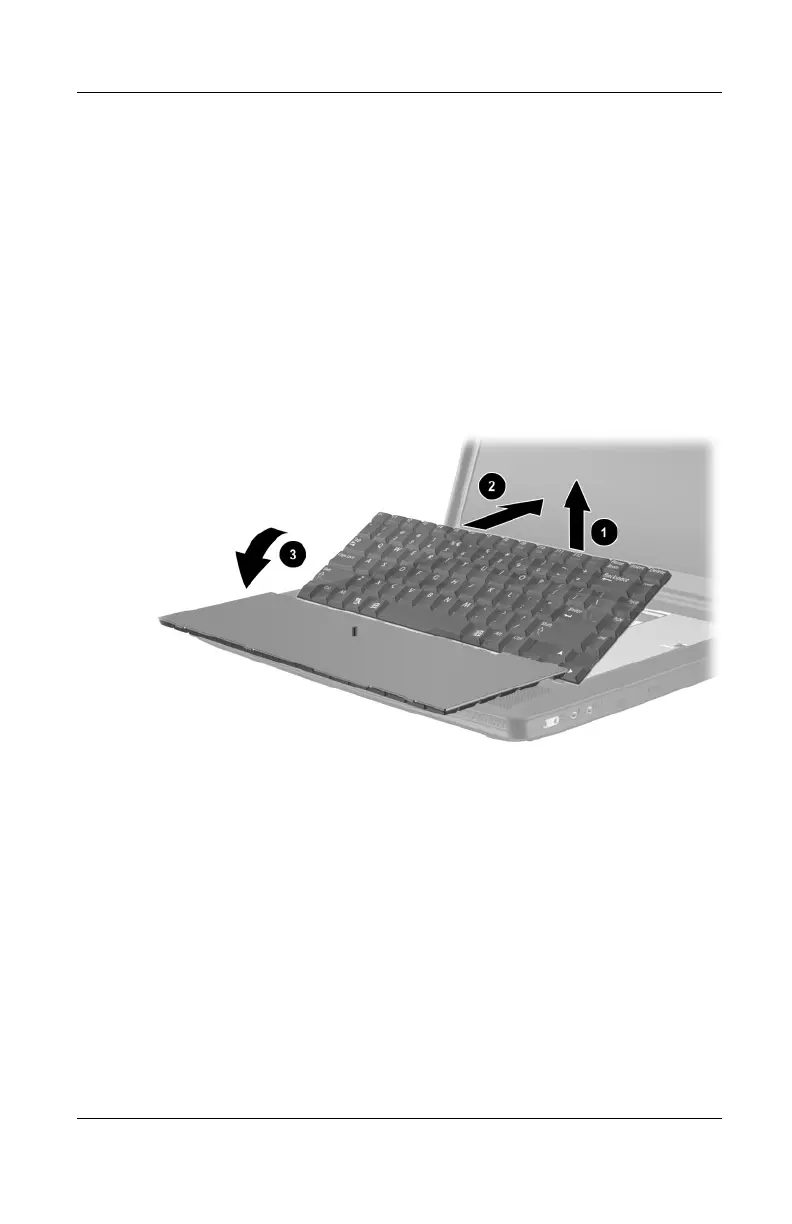

Figure 5-13. Releasing the Keyboard
