9. Release the ZIF connector 1 to which the keyboard cable is
attached and disconnect the keyboard cable 2 from the
system board (Figure 5-14).
10. Remove the keyboard 3.

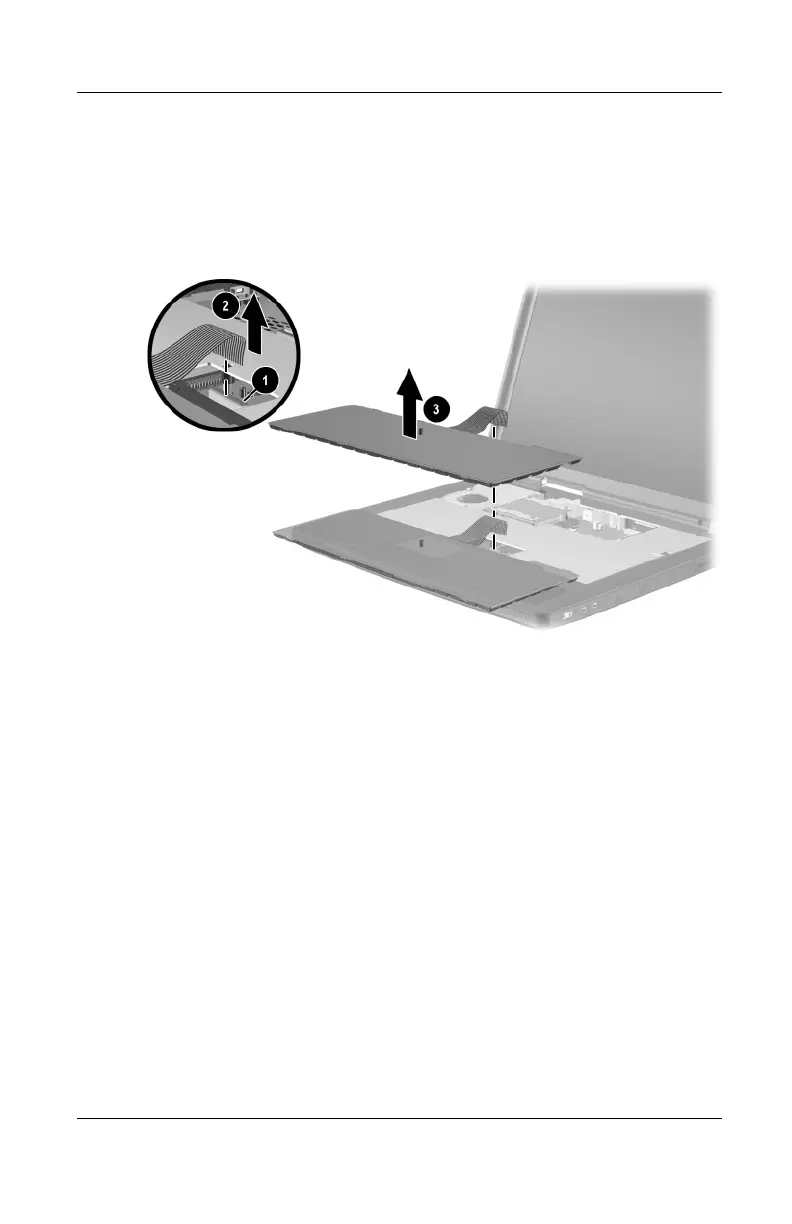

Figure 5-14. Removing the Keyboard
Reverse the preceding procedure to install the keyboard and
keyboard retainer.
