b. If you are installing a diskette drive, connect the data cable (1) and power cable (2) to the back
of the drive.

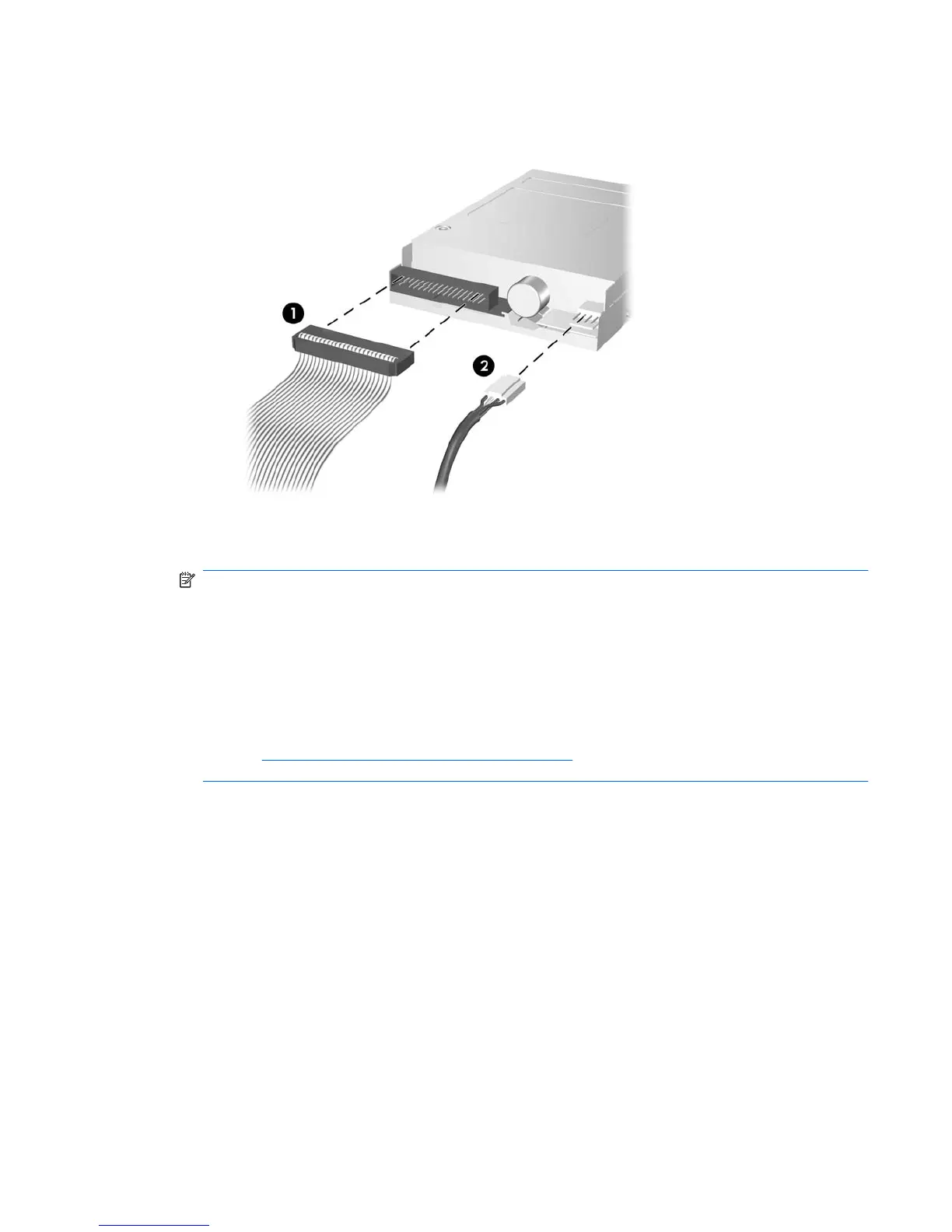

Figure 2-25 Connecting the Diskette Drive Cables
5. If installing a new drive, connect the opposite end of the data cable to the appropriate system board
connector.
NOTE: If you are installing a SATA optical drive, connect the first optical drive to the white SATA
connector on the system board labeled SATA1. Connect a second optical drive to the orange SATA
connector labeled SATA5.
If you are installing a diskette drive, connect it to the connector on the system board labeled
FLOPPY.
If installing a media card reader, connect the USB cable from the media card reader to the USB
connector on the system board labeled MEDIA.
Refer to
System Board Drive Connections on page 25 for an illustration of the system board drive
connectors.
6. Replace the front bezel and computer access panel.
7. Reconnect the power cord and any external devices, then turn on the computer.
8. Lock any security devices that were disengaged when the access panel was removed.
ENWW Installing Additional Drives 31

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
