Input/Output Interfaces
5.9.4 NIC Connector

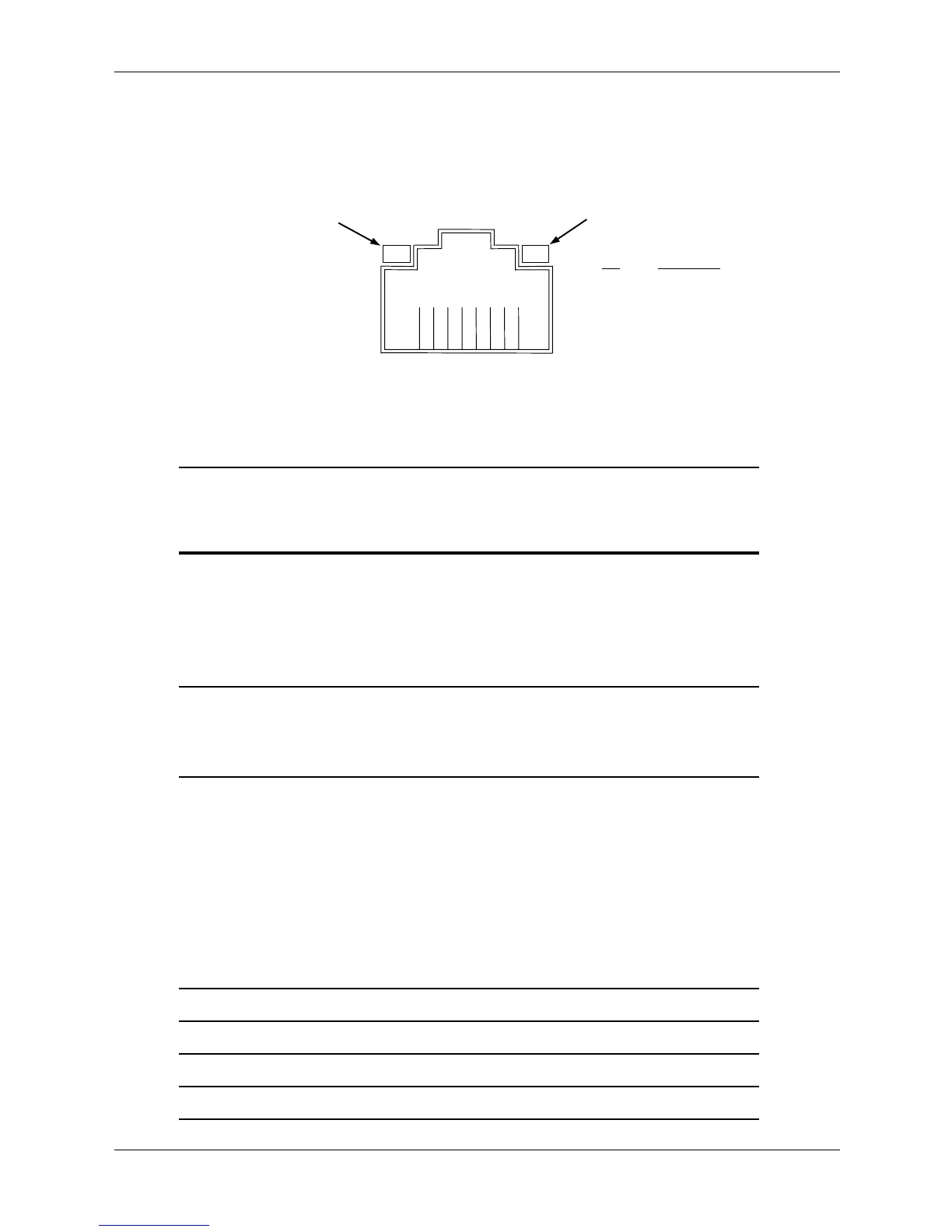

Figure 5-11 shows the RJ-45 connector used for the NIC interface. This connector includes the
two status LEDs as part of the connector assembly.
Figure 5-11. RJ-45 Ethernet TPE Connector (as viewed from rear of chassis)
5.9.5 NIC Specifications
124 38 7 6 5
Pin
Description
1 Transmit+
2 Transmit-
3 Receive+
6 Receive-
Activity LED
Speed LED
Pins 4, 5, 7, 8 not used
Table 5-11.
NIC Specifications
Parameter Compatibility standard orprotocol
Modes Supported 10BASE-T half duplex @ 10 Mb/s
10Base-T full duplex @ 20 Mb/s
100BASE-TX half duplex @ 100 Mb/s
100Base-TX full duplex @ 200 Mb/s
1000BASE-T half duplex @ 1 Gb/s
1000BASE-TX full duplex @ 2 Gb/s
Standards Compliance IEEE 802.1P, 802.1Q
IEEE 802.2
IEEE 802.3, 802.3ab, 802.3ad, 802.3u, 802.3x,
802.3z
OS Driver Support MS-DOS
MS Windows 3.1
MS Windows 95 (pre-OSR2), 98, and 2000
Professional, XP Home, XP Pro, Vista Home, Vista Pro
MS Windows NT 3.51 & 4.0
Novell Netware 3.x, 4.x, 5x
Novell Netware/IntraNetWare
SCO UnixWare 7
Linux 2.2, 2.4
PXE 2.0
Boot ROM Support Intel PRO/100 Boot Agent (PXE 3.0, RPL)
F12 BIOS Support Yes
Bus Inteface PCI Express x1
Power Management Support ACPI, PCI Power Management Spec.

Compaq dc5850 - Microtower PC Specifications

General

Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Microtower
Audio	Integrated High Definition audio
Power Supply	300W
Processor	AMD Athlon X2, AMD Athlon, AMD Sempron
Storage	SATA 3.0 Gb/s Hard Drives
Graphics	Integrated ATI Radeon 3100 graphics
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows Vista
Expansion Slots	1 PCI Express x16, 2 PCI Express x1
Network	Integrated Gigabit Ethernet
Ports	1 serial, 1 parallel, 1 VGA, 1 RJ-45, audio in/out
