Compaq dc5850 - Microtower PC Technical Reference Guide

Technical Reference Guide www.hp.com 6-5
Integrated Graphics Processor
6.4.2 DVI-D Connector

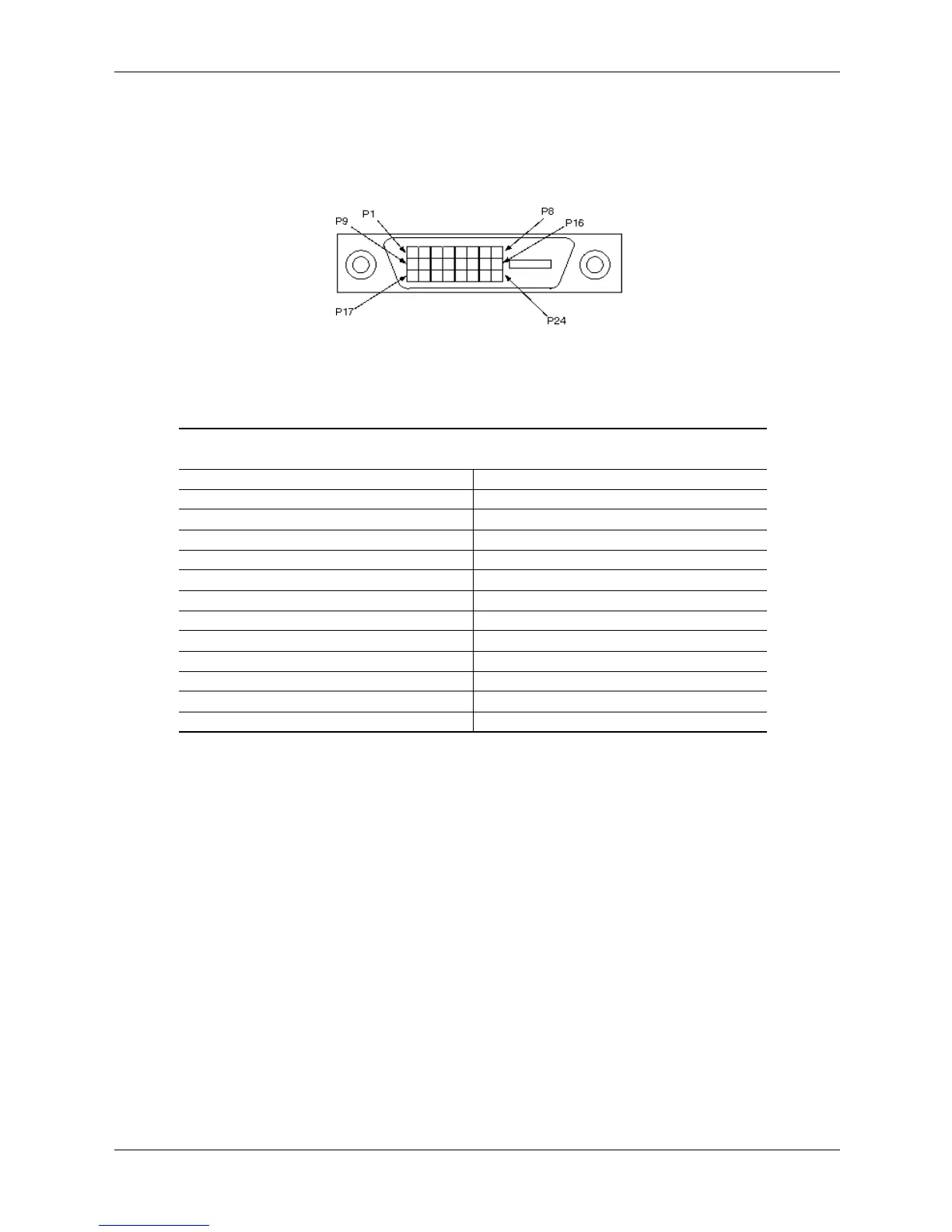

Figure 6-3 shows the DVI-D connector for attaching a digital monitor.
Figure 6-3. Female DVI-D Connector, (as viewed from rear of chassis).
Table 6-2.
DVI-D Monitor Connector Pinout
Pin Signal Pin Signal
1 TMDS Data 2- 13 TMDS Data 3+
2TMDS Data 2+ 145 VDC
3TMDS Dara 2 & 4 shield 15Ground
4 TMDS Data 4- 16 Hot Plug Detect
5 TMDS Data 4+ 17 TMDS Data 0-
6DDV Clock 18TMDS Data 0+
7 DDC Data 19 TMDS Data 0 & 5 shield
8 not used 20 TMDS Data 5-
9 TMDS Data 1- 21 TMDS Data 5+
10 TMDS Data 1+ 22 TMDS Clock shield
11 TMDS Data 1 & 3 shield 23 TMDS Clock +
12 TMDS Data 3- 24 TMDS Clock -

Compaq dc5850 - Microtower PC Specifications

General

Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Microtower
Audio	Integrated High Definition audio
Power Supply	300W
Processor	AMD Athlon X2, AMD Athlon, AMD Sempron
Storage	SATA 3.0 Gb/s Hard Drives
Graphics	Integrated ATI Radeon 3100 graphics
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows Vista
Expansion Slots	1 PCI Express x16, 2 PCI Express x1
Network	Integrated Gigabit Ethernet
Ports	1 serial, 1 parallel, 1 VGA, 1 RJ-45, audio in/out
