System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.

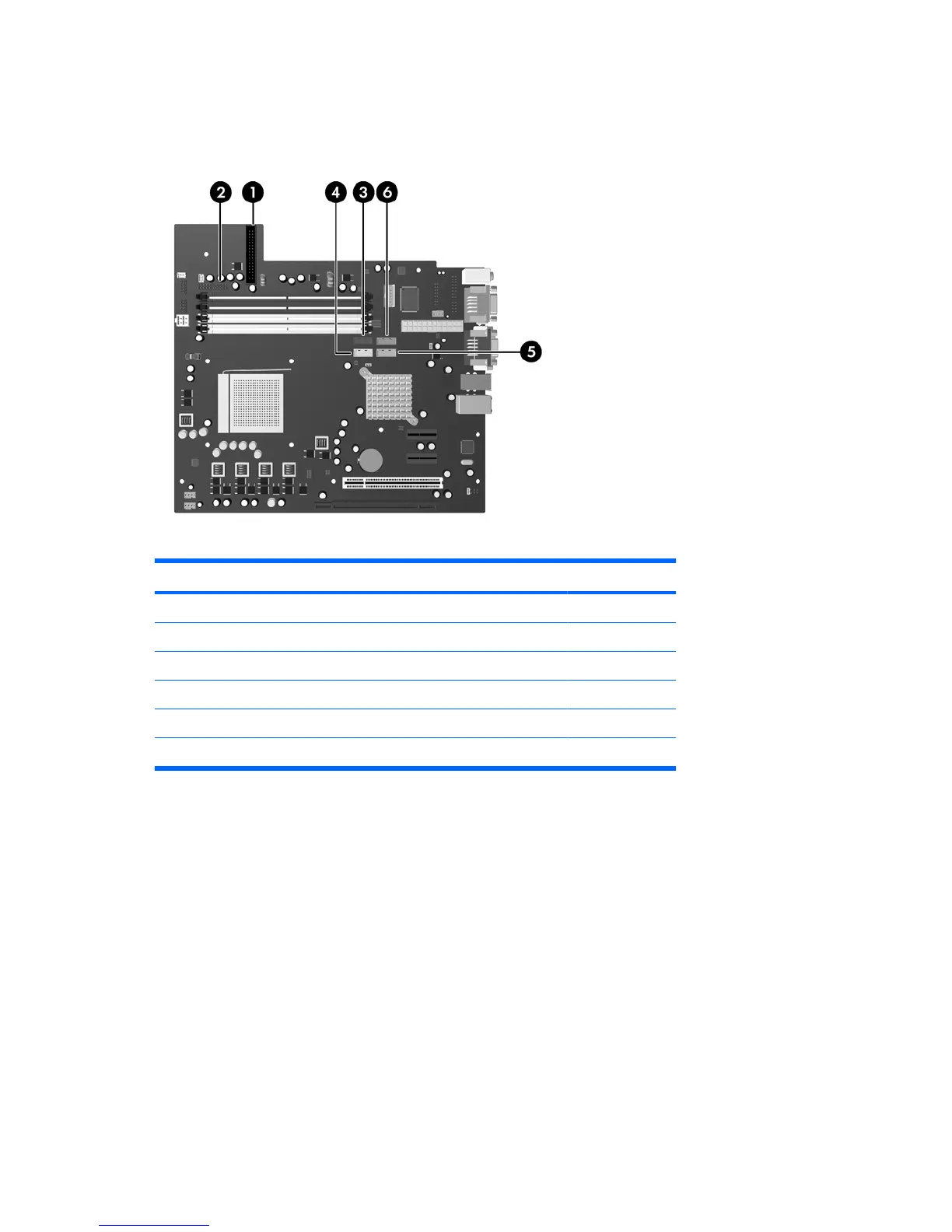

Figure 2-16 System Board Drive Connections
Table 2-2 System Board Drive Connections
No. System Board Connector System Board Label Color
1 Diskette Drive FLPY black
2 Media Card Reader MEDIA black
3 SATA0 SATA0 dark blue
4 SATA1 SATA1 white
5 SATA2 SATA2 light blue
6 SATA3 SATA3 orange
24 Chapter 2 Hardware Upgrades ENWW
