Compaq dc5850 - Microtower PC Hardware Reference Guide

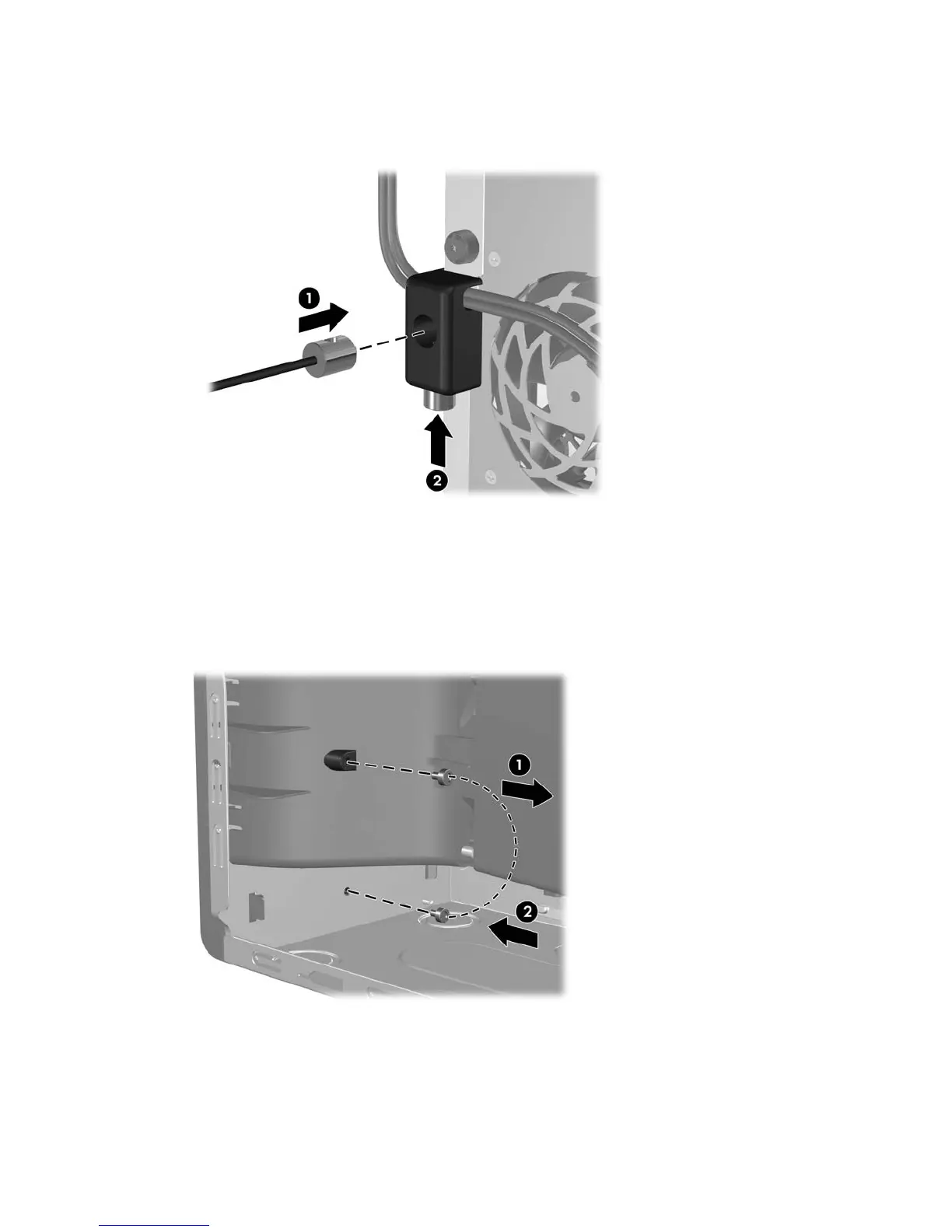

4. Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
Figure C-6 Engaging the Lock
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP.
The security screw is located on the fan duct inside the chassis. To lock the front bezel, remove the
security screw from the fan duct (1) and install it through the chassis frame into the front bezel (2).
Figure C-7 Installing the Front Bezel Security Screw
ENWW Installing a Security Lock 47

Compaq dc5850 - Microtower PC Specifications

General

Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Microtower
Audio	Integrated High Definition audio
Power Supply	300W
Processor	AMD Athlon X2, AMD Athlon, AMD Sempron
Storage	SATA 3.0 Gb/s Hard Drives
Graphics	Integrated ATI Radeon 3100 graphics
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows Vista
Expansion Slots	1 PCI Express x16, 2 PCI Express x1
Network	Integrated Gigabit Ethernet
Ports	1 serial, 1 parallel, 1 VGA, 1 RJ-45, audio in/out
