b. If you are installing a diskette drive, connect the data cable (1) and power cable (2) to the back
of the drive.

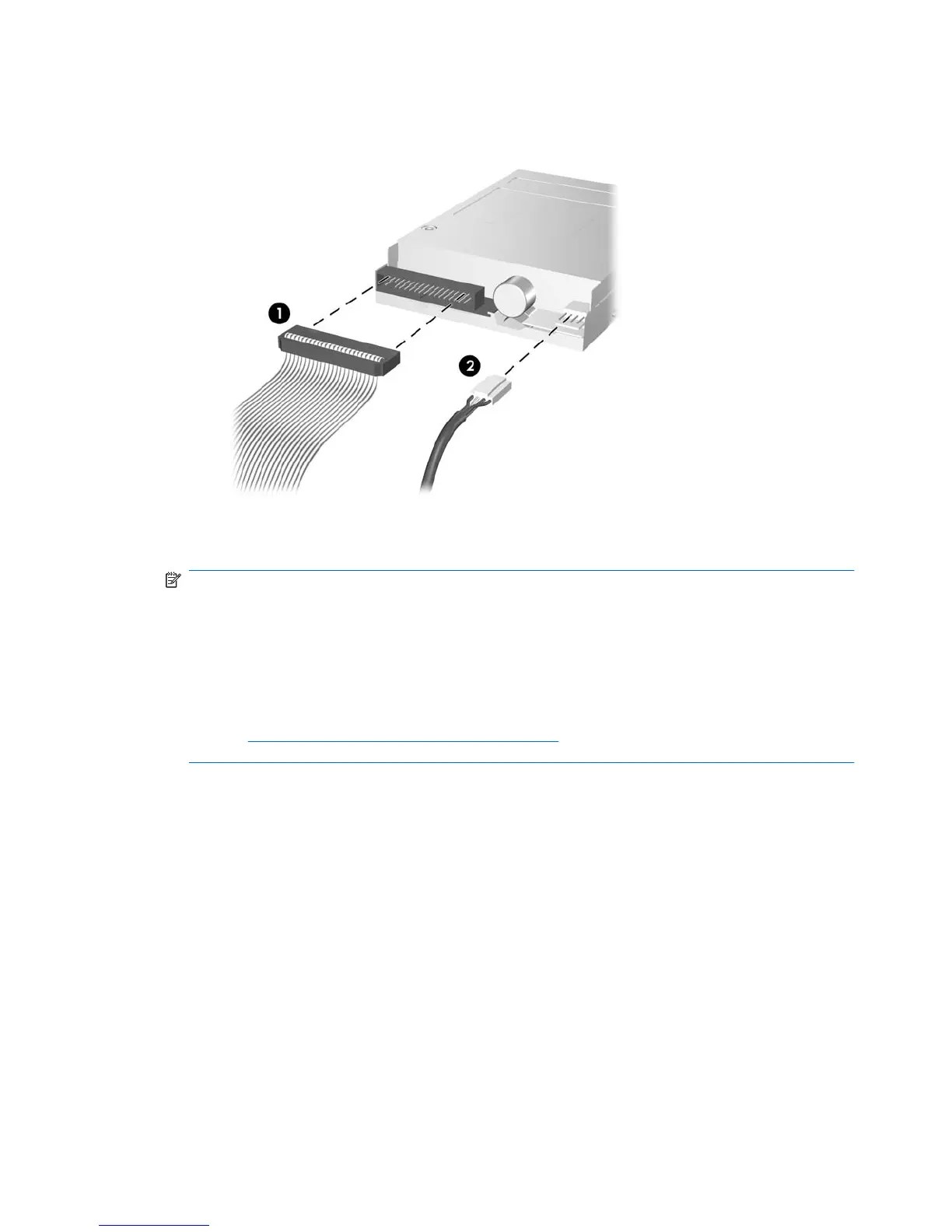

Figure 2-25 Connecting the Diskette Drive Cables
5. If installing a new drive, connect the opposite end of the data cable to the appropriate system board
connector.
NOTE: If you are installing a SATA optical drive, connect the first optical drive to the white SATA
connector on the system board labeled SATA1. Connect a second optical drive to the orange SATA
connector labeled SATA3.
If you are installing a diskette drive, connect it to the connector on the system board labeled FLPY.
If installing a media card reader, connect the USB cable from the media card reader to the USB
connector on the system board labeled MEDIA.
Refer to
System Board Drive Connections on page 24 for an illustration of the system board drive
connectors.
6. Replace the front bezel and computer access panel.
7. Reconnect the power cord and any external devices, then turn on the computer.
8. Lock any security devices that were disengaged when the access panel was removed.
30 Chapter 2 Hardware Upgrades ENWW
