Compaq dc5850 - Microtower PC - Page 38

7. Release the drive by pulling the release tab away from the drive (1) and sliding the drive out of the
bay (2).

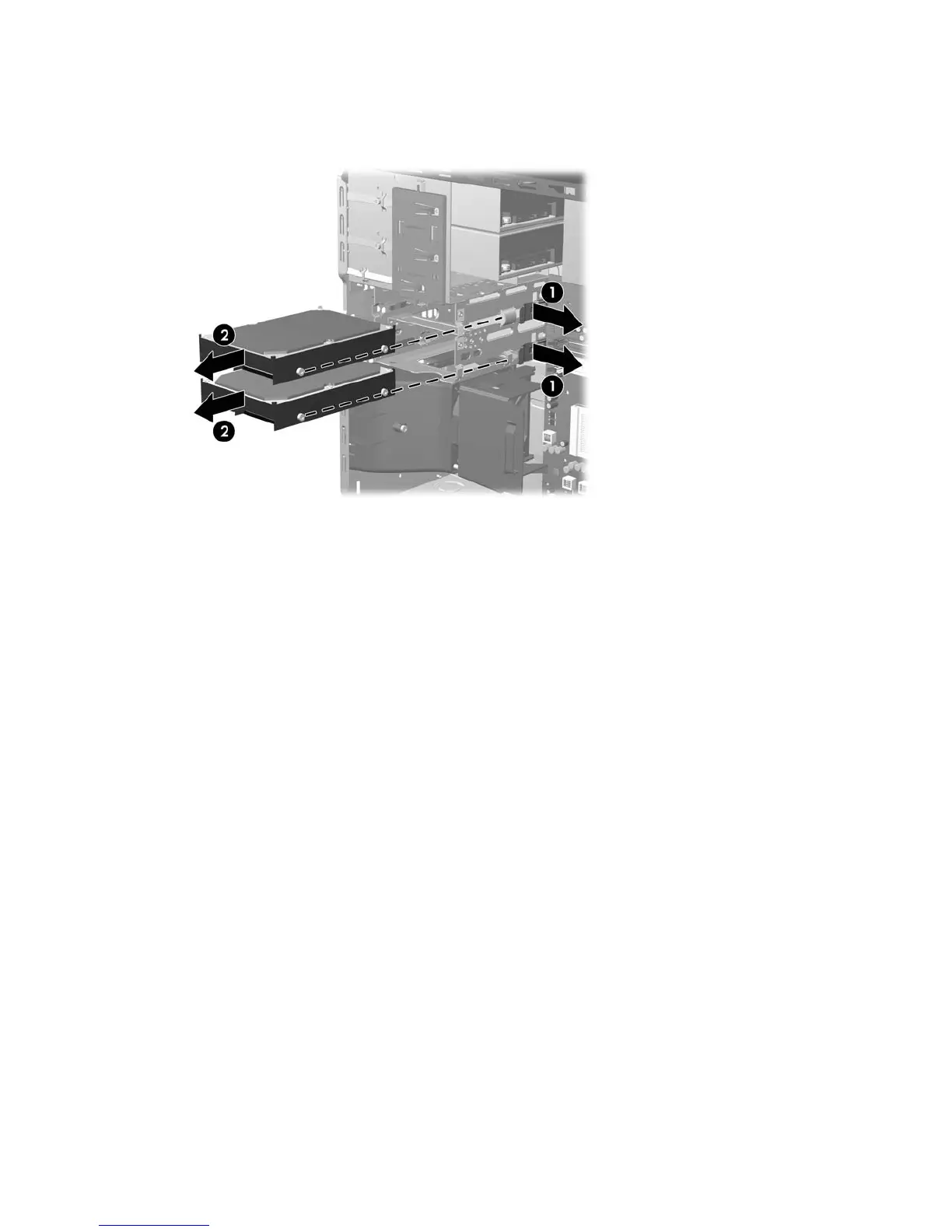

Figure 2-27 Removing a Hard Drive
8. Remove the four guide screws (two on each side) from the old drive. You will need these screws
to install a new drive.
32 Chapter 2 Hardware Upgrades ENWW
