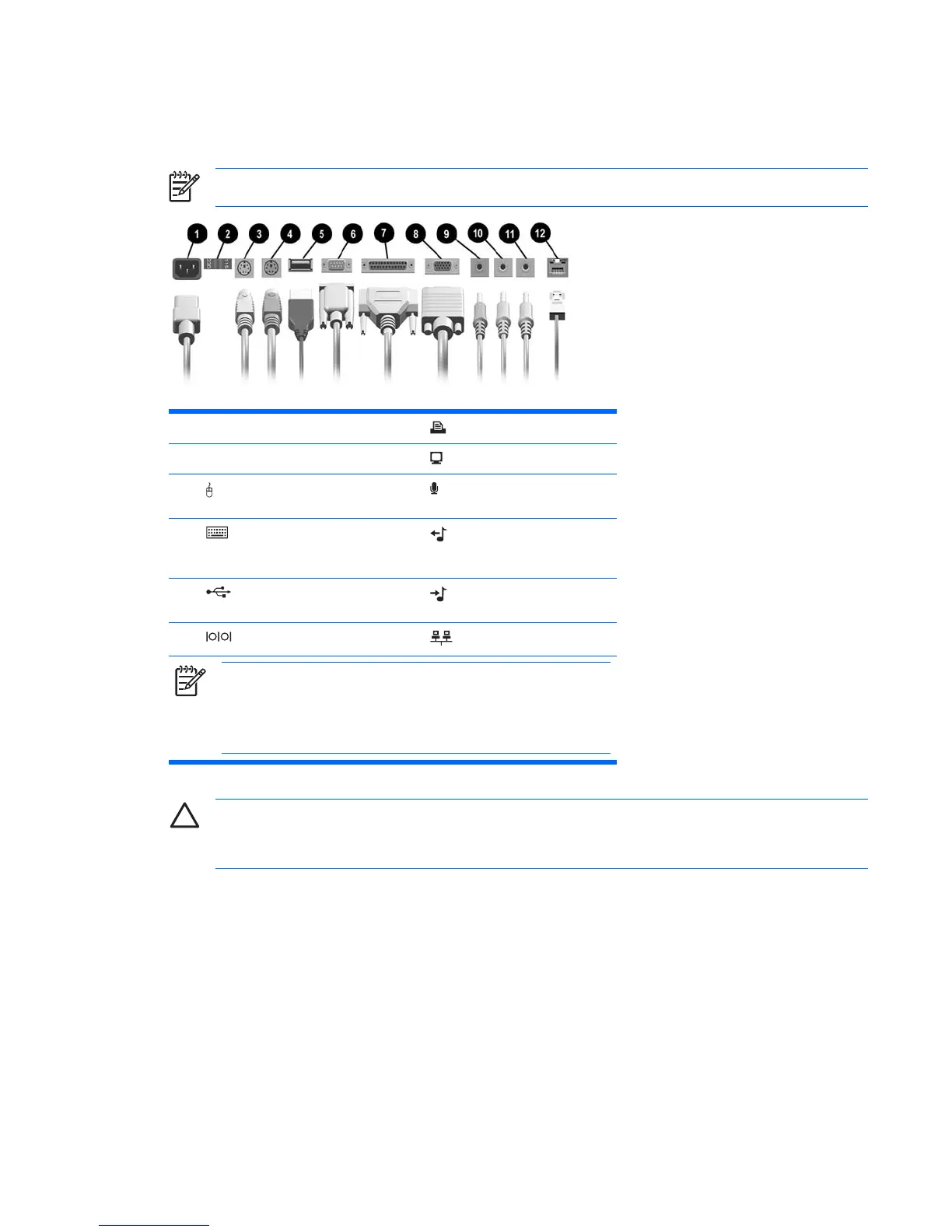

Step 3: Connect External Devices
Connect the monitor, mouse, keyboard, and network cables.
NOTE: Arrangement and number of connectors may vary by model.
1 Power Cord Connector 7 Parallel Connector
2 Voltage Select Switch 8 Monitor Connector
3 PS/2 Mouse Connector
(green)
9 Microphone Connector
(pink)
4 PS/2 Keyboard Connector
(purple)
10 Line-Out Connector for
powered audio devices
(green)
5 Universal Serial Bus (USB) 11 Line-In Audio Connector
(blue)
6 Serial Connector 12 RJ-45 Network Connector
NOTE: If a PCI graphics card is installed, the connectors on the card
and the system board may be used at the same time. Some settings
may need to be changed in Computer Setup to use both connectors. For
information about Boot Order, refer to the Computer Setup (F10) Utility
Guide on the Documentation and Diagnostics CD.
CAUTION: Do not add optional hardware or third-party devices to the computer until the
operating system is successfully installed. Doing so may cause errors and may prevent the
operating system from installing properly.
ENWW Step 3: Connect External Devices 3
