Rear Panel Components

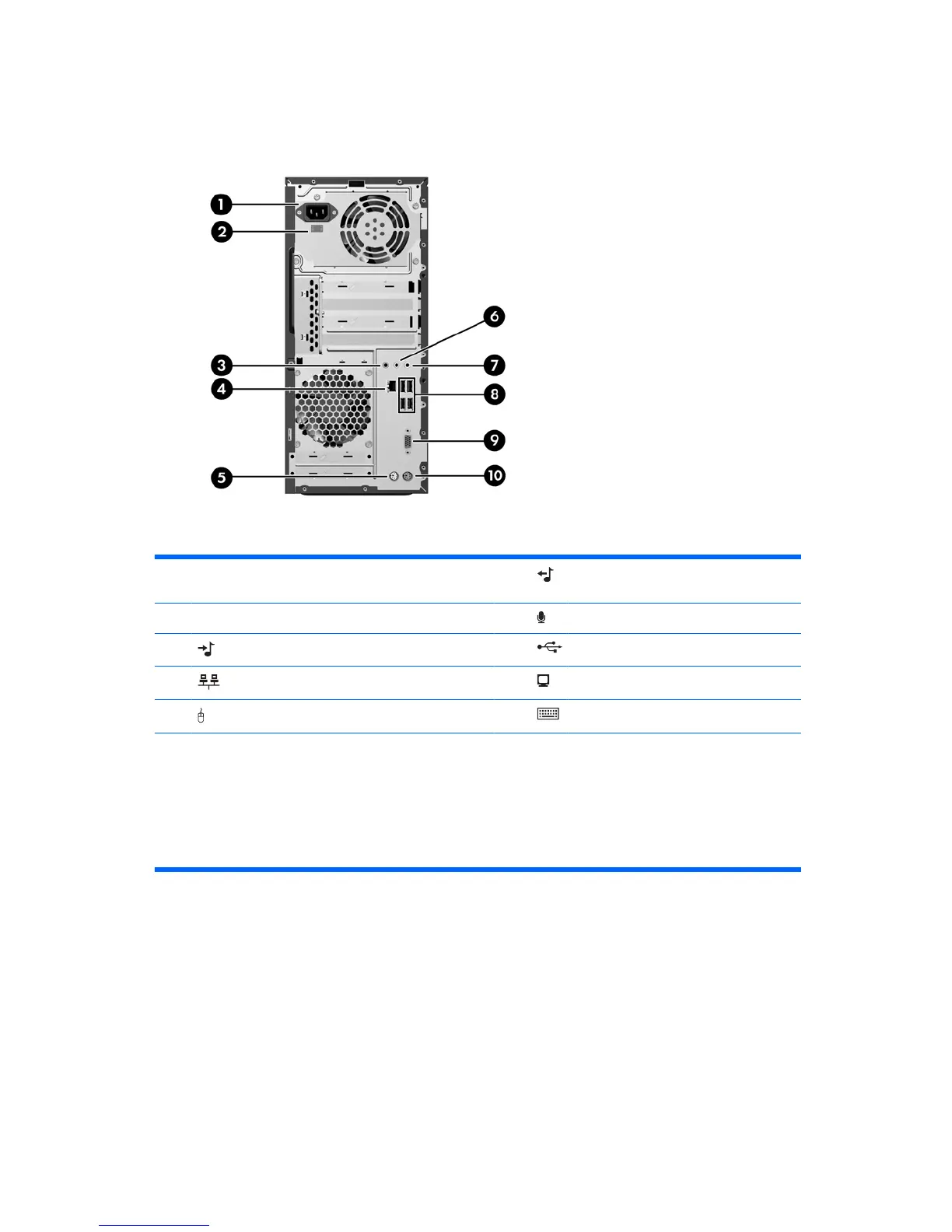

Figure 1-4 Rear Panel Components
Table 1-3 Rear Panel Components
1 Power Cord Connector 6 Line-Out Connector for powered audio
devices (green)
2 Voltage Select Switch 7 Microphone Connector
3 Line-In Audio Connector (blue) 8 Universal Serial Bus (USB)
4 RJ-45 Network Connector 9 VGA Monitor Connector (blue)
5 PS/2 Mouse Connector (green) 10 PS/2 Keyboard Connector (purple)
NOTE: Arrangement and number of connectors may vary by model.
The monitor connector on the system board is inactive when a PCI Express x16 graphics card is installed in the
computer.
If a PCI or PCI Express x1 graphics card is installed, the connectors on the card and the system board may be used
at the same time. Some settings may need to be changed in Computer Setup to use both connectors. For information
about setting the boot VGA controller, refer to the Computer Setup (F10) Utility Guide.
4 Chapter 1 Product Features
