Technical Reference Guide 2–19
System Features
LAN Connector
The 10 Base-T/100 Base-TX LAN connector is located on the rear of the PC.

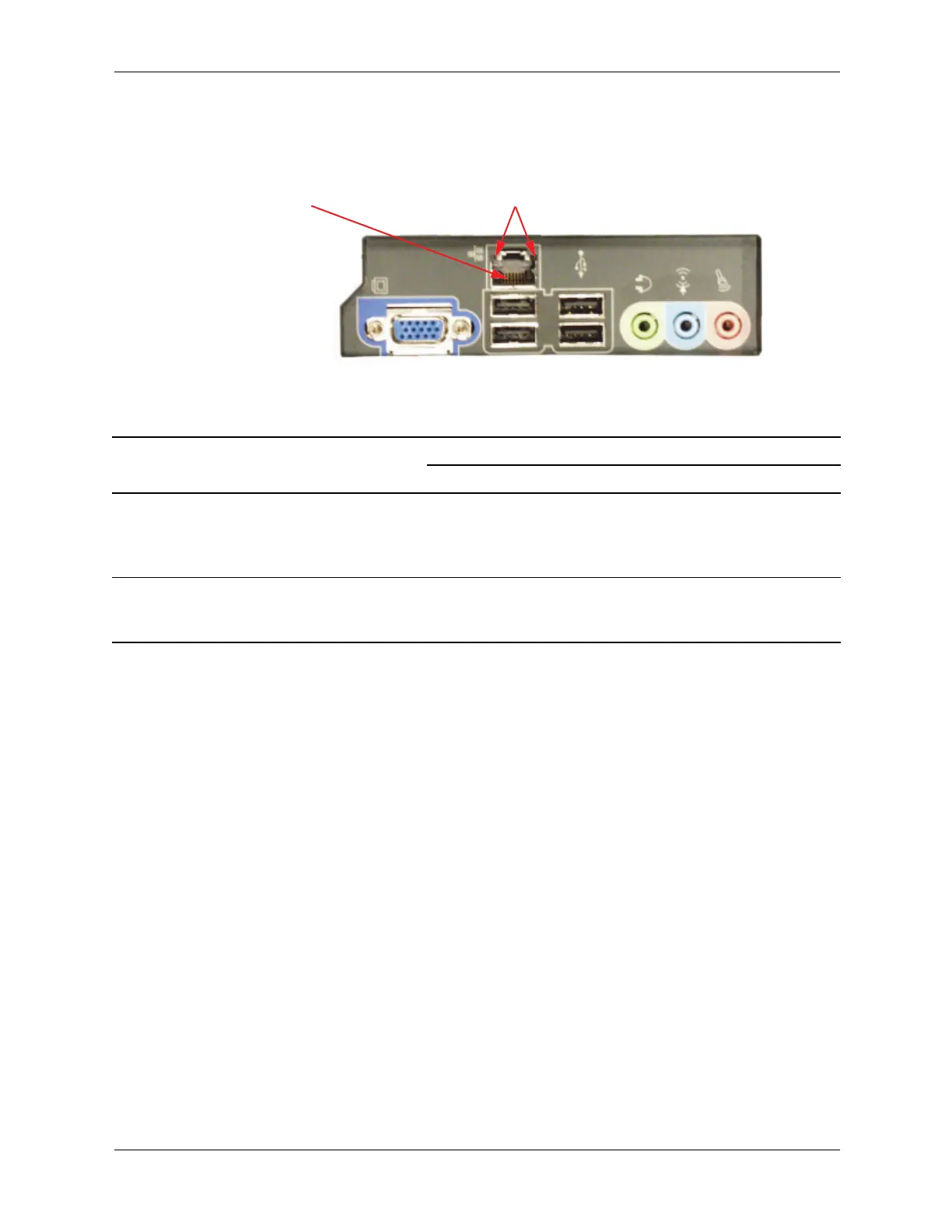

There are two LEDs on the 10 Base-T/100 Base-TX connector as indicated in the graphic above.
The following table provides a status summary of these LEDs.
10 Base-T/100 Base-TX connector
LEDs
LED Description
Status
Flashing On Off
Green Speed LED N/A 100 Base-TX
connection
between NIC
and hub
10 Base-T
connection
between NIC
and hub
Yellow Link Integrity and Activity LED Link integrity OK
and network traffic
present
Link integrity
OK and no
network traffic
No connection
between NIC
and hub
