Serviceability
Installing or Replacing Main Memory
1. Remove the chassis as described under “Removing the Chassis” section.
2. Unclip and swing the drive retaining clip upwards and to the side.
3. Slide the hard drive outwards to access the memory module sockets.
4. Either remove the module you want to replace or locate the empty memory module socket.
5. Make sure that the socket’s clips are open.
6. Align the grooves on the bottom of the module with the corresponding marks on the socket
and push it firmly into place. The clips close automatically.
7. Replace the chassis in the enclosure.

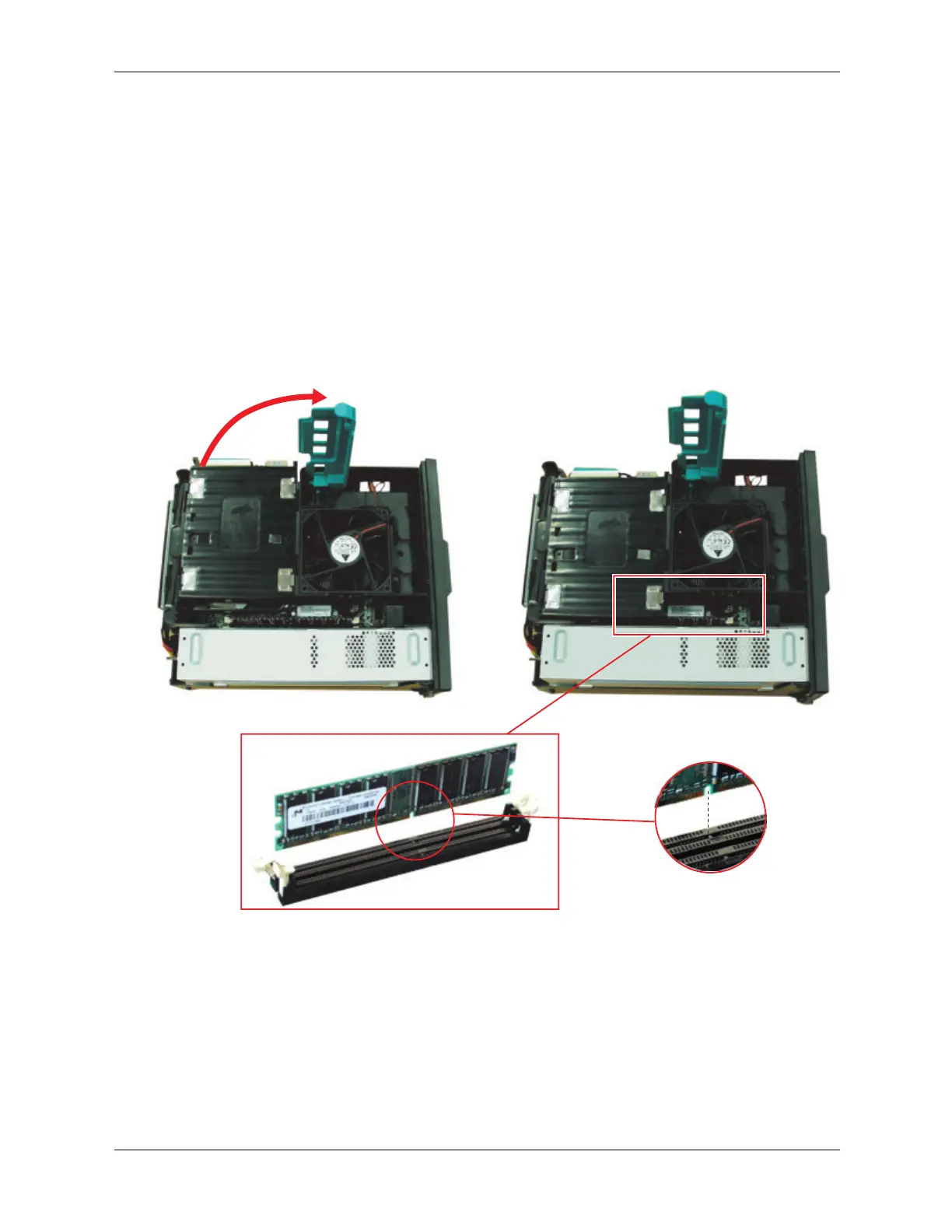

Step 6
