PRODUCT DESCRIPTION

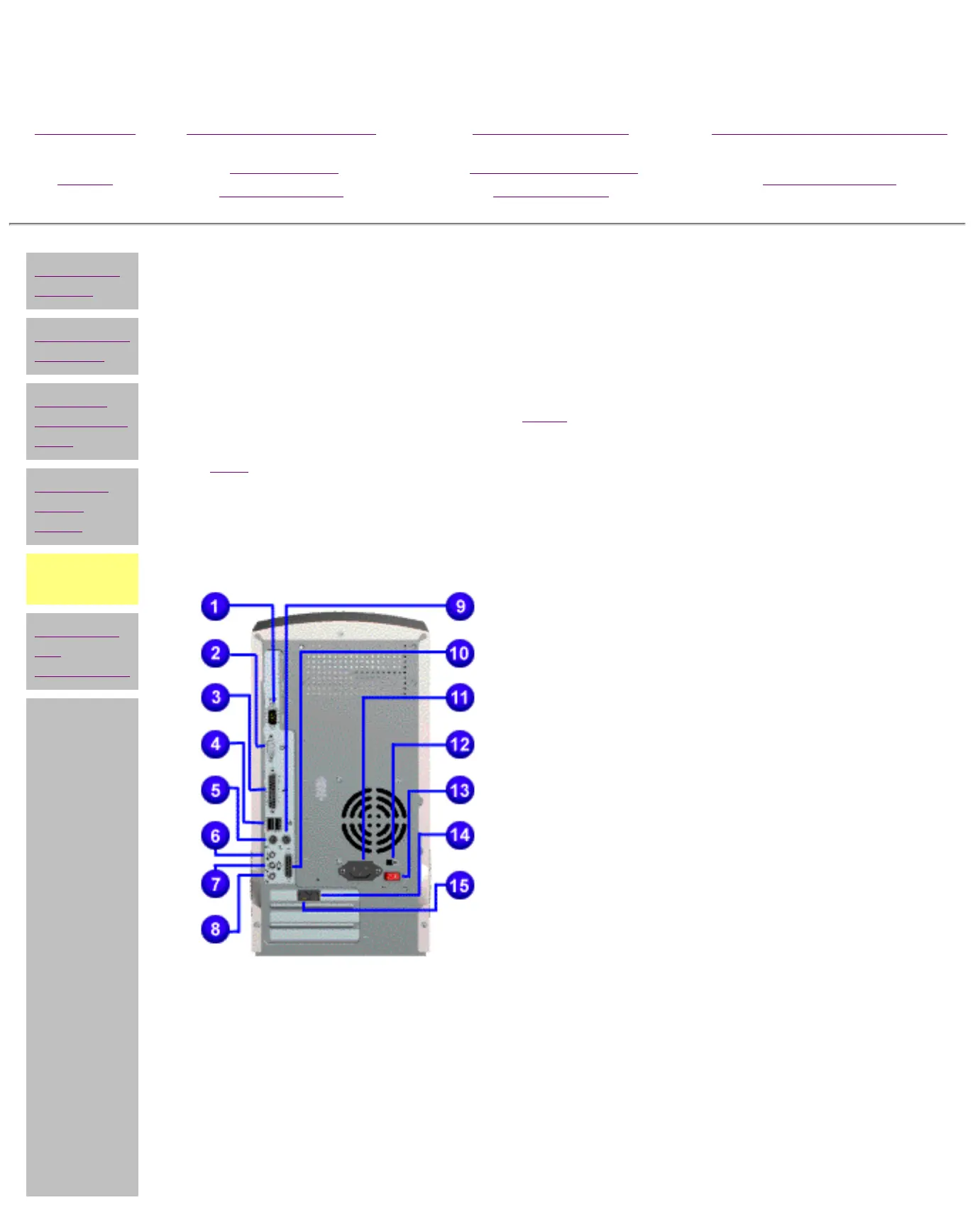

CPU Rear Connectors - 5070, 5184, 5185
Click link to see CPU Rear Connectors for other models.
Click here to jump to connector pin assignments.
1
Serial port
2
VGA monitor
3
Parallel (printer) port
4
Dual USB connectors
5
Keyboard
6
Microphone in
7
Audio line out
8
Speaker or headphone out
9
Mouse
10
MIDI Gamepad / joystick
11
AC
12
Voltage select switch
13
Main power on/off
14
Telephone line to wall outlet (select
models)
15
Telephone line to telephone
