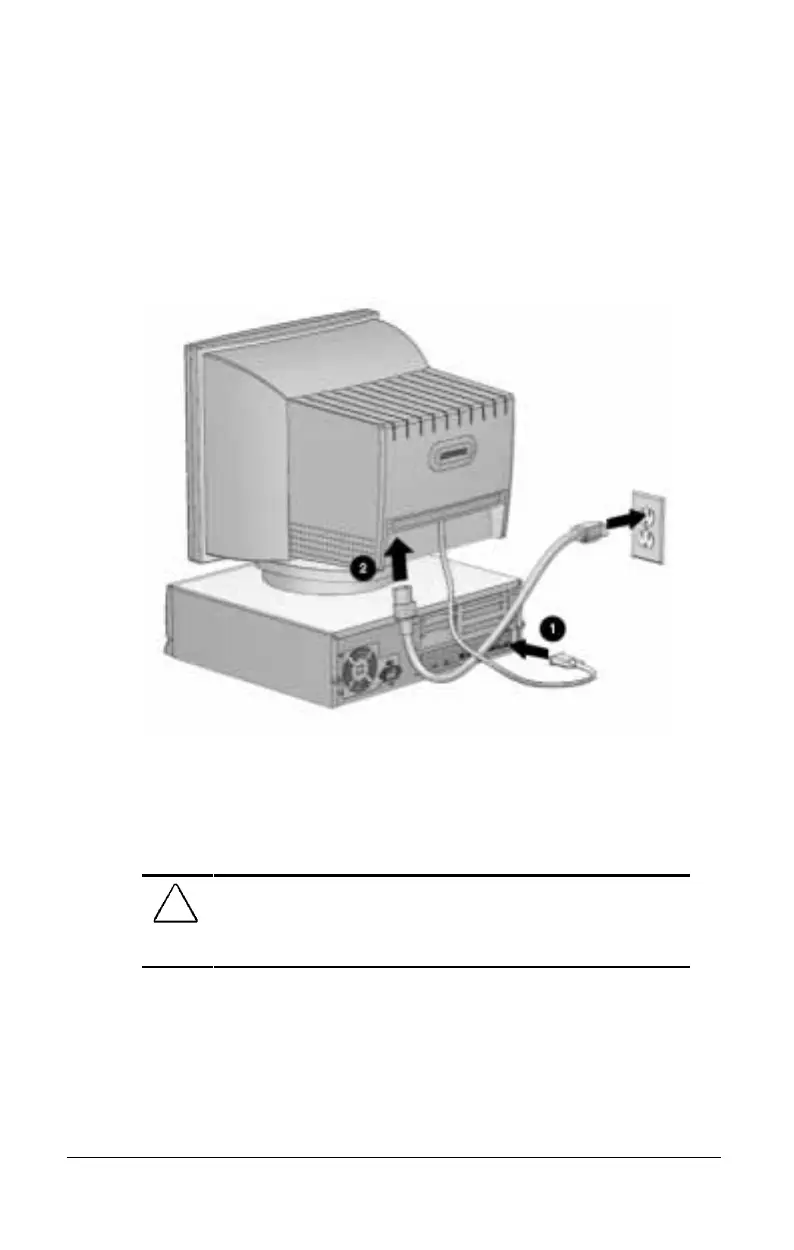

3. Connect the monitor signal cable ➊ to the 15-pin connector on
the rear panel of the computer and tighten the screws.
IMPORTANT: Be sure the signal cable aligns with the 15-pin
connector. Do not force the cable onto the connector or you may
damage the signal cable.
4. Connect the monitor power cord ➋ to the rear panel of the
monitor and plug into an electrical outlet that is easily accessible
and close to the monitor.
!
WARNING: This equipment is designed for connection to a grounded
(earthed) outlet. The grounding type plug is an important safety feature.
To avoid risk of electric shock or damage to your equipment, do not
disable this feature.
5. Replace the door on the rear panel by lining it up with the slots
on the rear panel and sliding it up until it clicks in place.
