5 INSTALLATION OF THE PENDULUM SUPPORT
• If already installed, remove the end plug from the boom.
• Remove the lower impact protection sleeve from its guide.
• Insert the cap and position the pendulum support by striking it.
• Cut the sleeve to the length required to install the pendulum support (FIG. 15).
• Insert the sleeve and secure the pendulum support (FIG. 17).
• Replace the boom end plug.

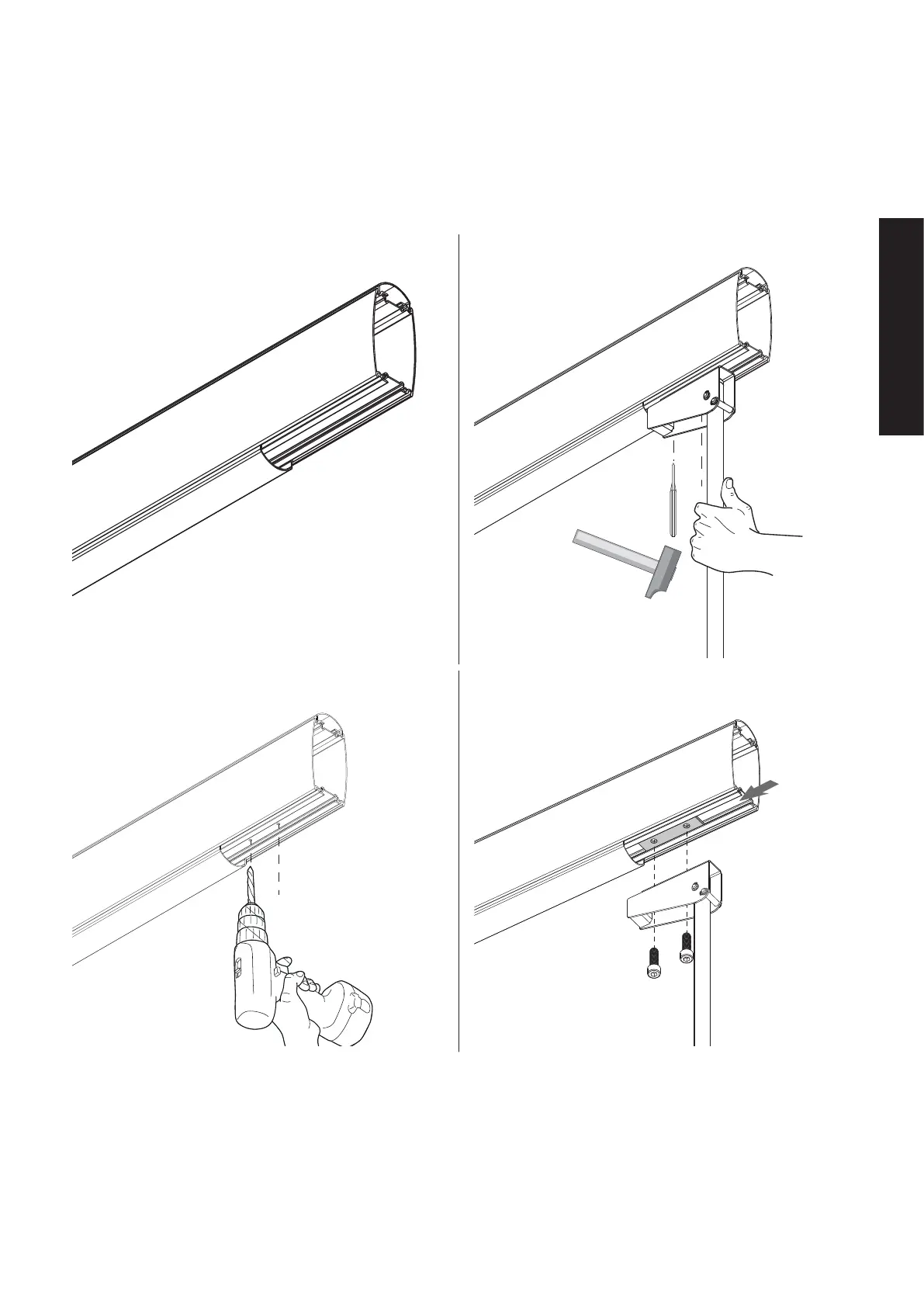

FIG. 15 FIG. 16A
FIG. 16B FIG. 17
