6 INSTALLATION OF THE SKIRT
• Remove the cap from the am and the lower bumper sheath if already tted.

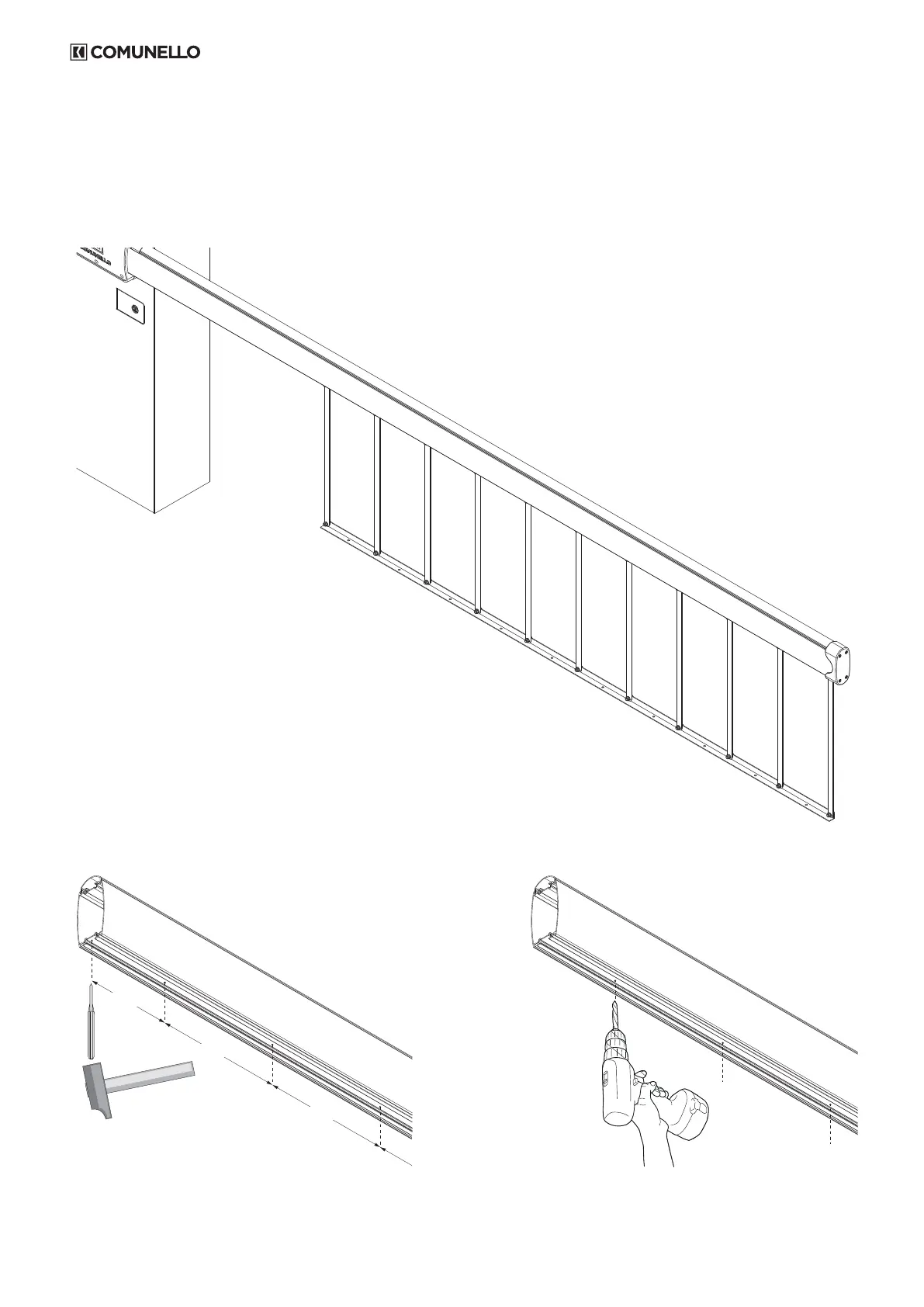

• Mark the points to be drilled with an awl as illustrated in g.19 A.
• Drill the marked points with a Ø 6mm bit as illustrated in g.19 B.
• Secure the skirt to the boom as shown in g.20.
• Replace the boom end plug.
FIG. 18
FIG. 19
100 mm
AB
200 mm
200 mm
