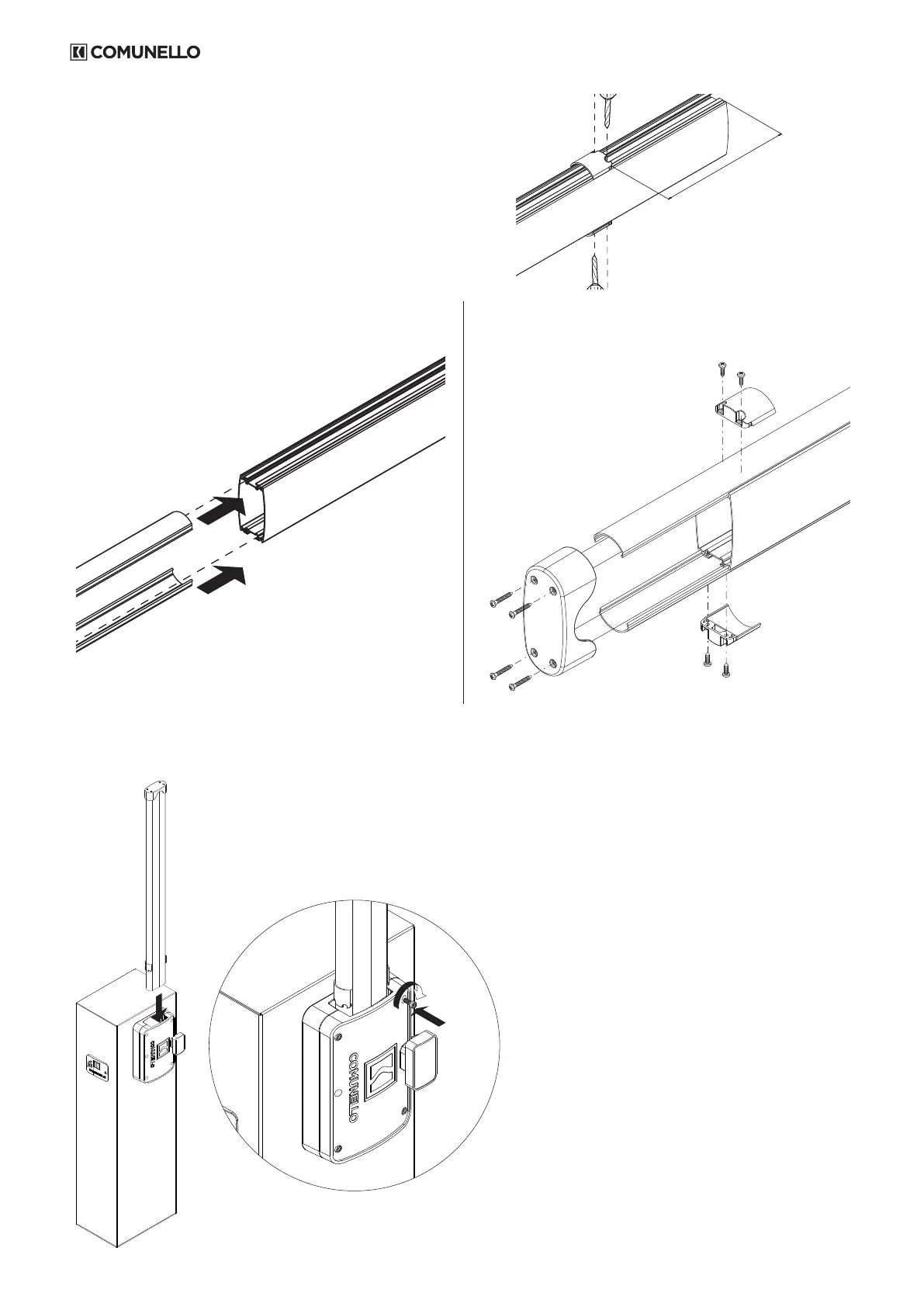

Boom assembly:
• Insert the impact protection strip in the specic guides.
NOTE: the protection strip will be 100 mm too long; push it until it is pressed
against the boom (FIG. 8).
• Secure the plug to one end of the boom as shown in gure 9.
2
2
2
m
m
FIG. 8 FIG. 9
• Insert the boom into the corresponding boom holder and secure it with the 4 screws as shown in gure 10.
FIG. 10
