Comunello CU-230V-1M - ELECTRICAL CONNECTIONS (WIRING DYAGRAM); Power Supply and Motor Wiring; Terminal Block Descriptions; Transformer Connections

18
COMUNELLO ®Copyright 2019 - All rights reserved

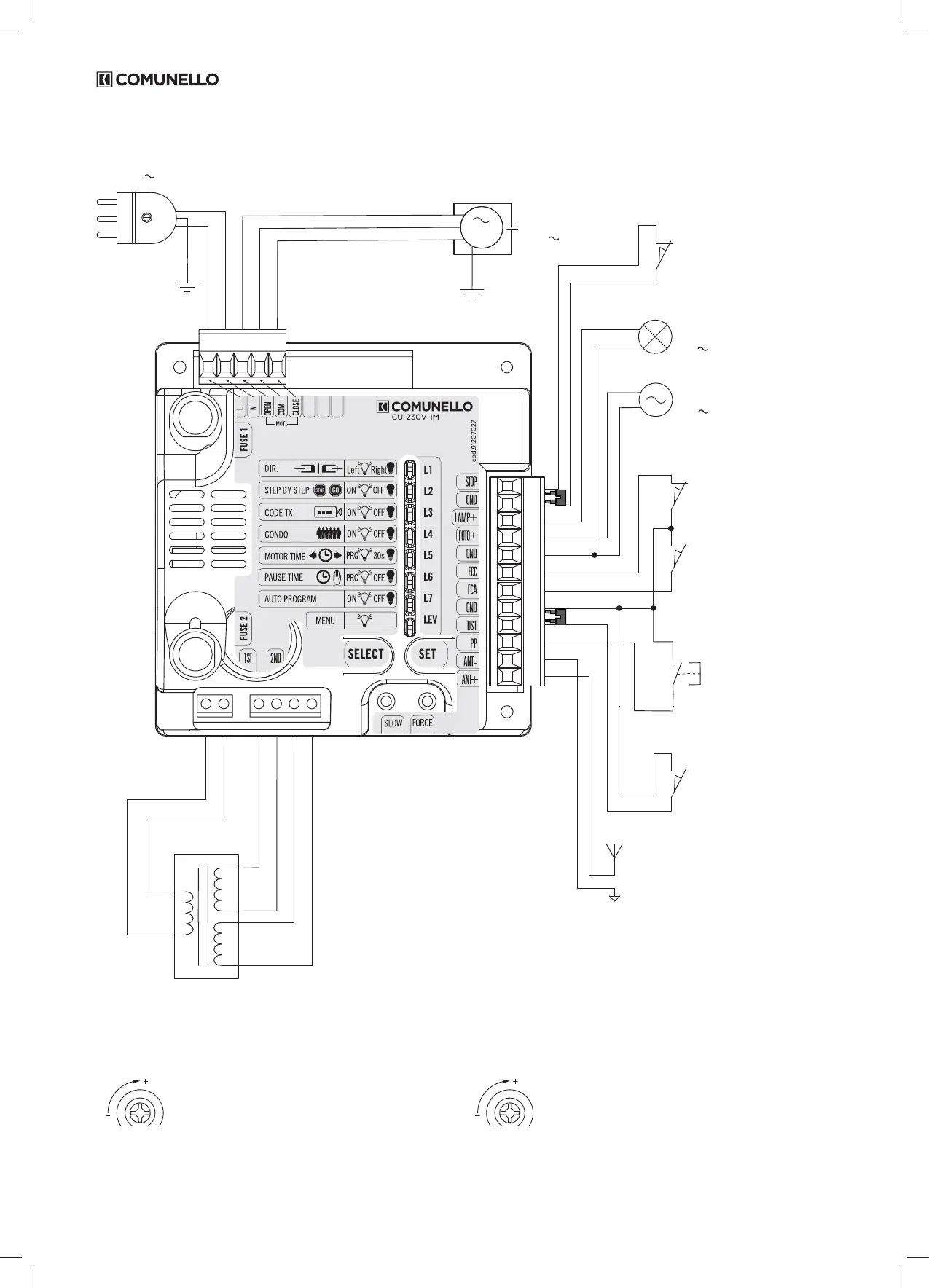

1 ELECTRICAL CONNECTIONS (WIRING DYAGRAM)
F2
SLOW
FORCE
1ST
2ND
CN1
M
CN3
CN4
MOTORE
MOTOR
230V 50HZ
F1
TRASFORMATORE
TRANSFORMER
230 / 24.5V - 0.4A; 12.5V - 0.17A
12.5V
24.5V
LINEA
POWER SUPPLY
2P+T 230V 50Hz
CN2
ANTENNA
PULSANTE APRI-CHIUDI (N.O.)
PUSCH BUTTON (N.O.)
ALIMENTAZIONE FOTOCELLULE
PHOTOCELL POWER
24V 5W
FINECORSA APRI (N.C.)
END OPEN (N.C.)
FINECORSA CHIUDI (N.C.)
END CLOSE (N.C.)
FOTOCELLULA - DS (N.C.)
PHOTOCELL - DS (N.C.)
LAMPEGGIANTE
FLASHING LIGHT
24V 4W
BLOCCO (N.C.)
STOP (N.C.)
FOT+
GND
LAMP
GND
STOP
FCA
DS1
GND
FCC
PP
ANT-
ANT+
L N
OP1 CM1 CL1
2 PONTI PASSO 5mm
2 PCS. PLUG-IN BRIDGES, 5mm PITCH
TRIMMER SLOW: Regulates motor DECELERATION TRIMMER FORCE: It regulates the FORCE of the motor
Turning with a screwdriver toward the + increases the
motor stroke speed during deceleration in 3 STEPS
Turning with a screwdriver toward the + increases the
motor power during its normal stroke
