ENGLISH

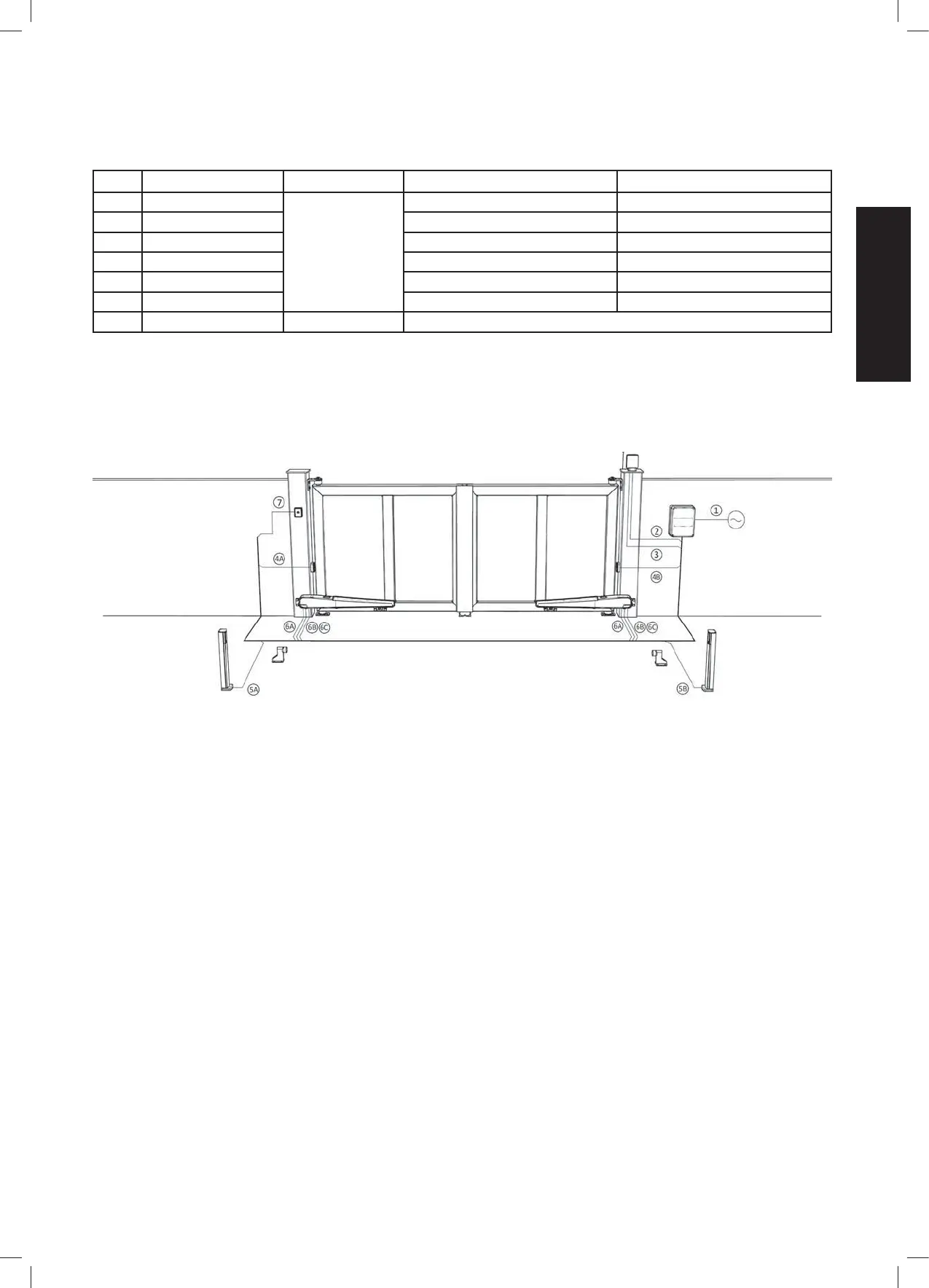

2 WIRES CONNECTION TABLE:

TAB.01

NO. DESCRIPTION CABLE LENGTH from 1m to 20m LENGTH from 20m to 50m

1 Power supply

EN standard 50575,

in the list of harmoni-

zed rules for the Regu-

lation CPR 305/2011,

Com.2016/C 209/03

3G x 1,5 mm2 3G x 2,5 mm2

6A Motor power supply 4G x 1,5 mm2 4G x 2,5 mm2

2 Flashing light 2 x 0.5 mm2 2 x 1.0 mm2

4A, 5A TX photocell 2 x 0.5 mm2 2 x 1.0 mm2

4B, 5B RX photocell 4 x 0.5 mm2 4 x 1.0 mm2

6 Key selecton 3 x 0.5 mm2 3 x 1.0 mm2

3 Antenna RG58 Max. 20 m

The table refers to the example of wiring shown in the FORT model manual for sliding motors.

NOTE: If the cables are of a different length than those shown in the table, the section of the cables must be determined based on the actual absorption of the

connected devices.

The requirements are reported in the EN 50575: 2014 standard:

With the publication of the standard EN 50575, in the list of harmonized standards for Regulation CPR 305/2011, Com. 2016 / C 209/03, also electric cables,

already subject to CE marking for the Low Voltage Directive 2014/35 / EU, must be CE marked also under the CPR Regulation.

In the eventualities of connections with devices connected in parallel on the same power supply line, the sizing of the cables shown in Table 1 must be re-evaluated

on the basis of the absorptions and the actual distances.

3 TECHNICAL SPECIFICATIONS

Power supply: 230 V~ 50Hz 1600W max.

Flashing light output: 24 V~ 4W max.

Motor output: 230 V~ 500 W max.

Photocells power supply: 24 V~ 5 W max.

LV safeties and controls: 24 V DC

Working temperature: -20 ÷ 55 °C

Radio receiver: 433 Mhz

Transmitters: 18 Bit or Rolling Code

Max TX codes stored in memory: 120 (CODE PP or CODE PED/2°CH)

Board dimension: 100 x 105 mm.
