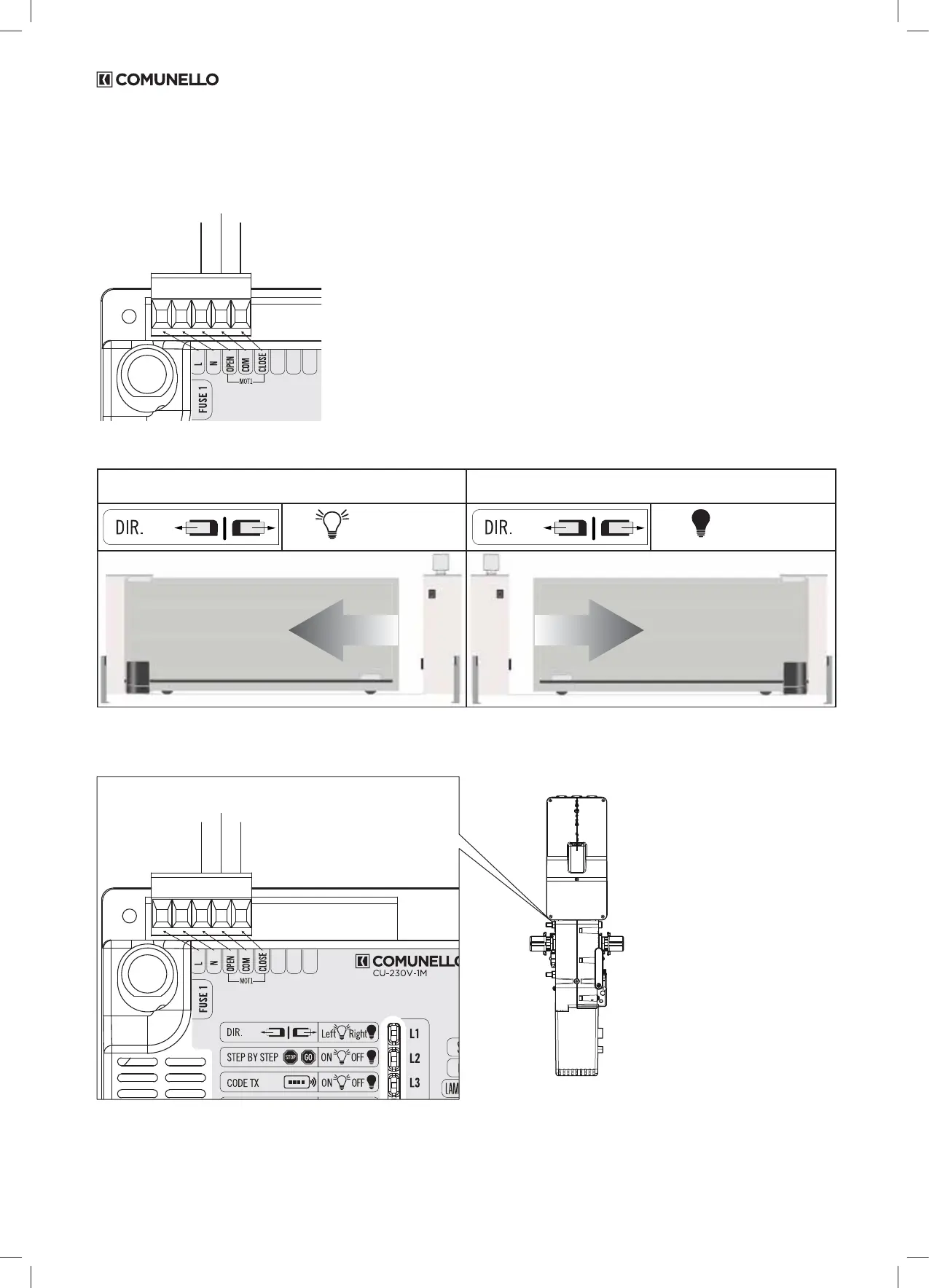

4 CONNECTION OF THE SINGLE MOTOR
4.1 FORT
CN1
F1
BLACK ON
OPEN
BLUE ON
COMMON
BROWN ON
CLOSED
L N
OP1 CM1 CL1
* Capacitor pre-wired between the two phases
Main menu adjustment , LED L1 ON to have an opening towards LEFT
(inner view)
Main menu adjustment , LED L1 OFF to have an opening towards RIGHT
(inner view)
LEFT
RIGHT
4.2 SALIENT
Single motor installation (up to 9 m
2
)
CN1
F1
CN2
BLACK ON
OPEN
BLUE ON
COMMON
BROWN ON
CLOSED
LAMP
GND
STOP
L N
OP1 CM1 CL1
*capacitor wired between the two phases
DO NOT CHANGE THE CONFIGURATION: The automations opens LEFT and closes RIGHT(prole view as in the image)
