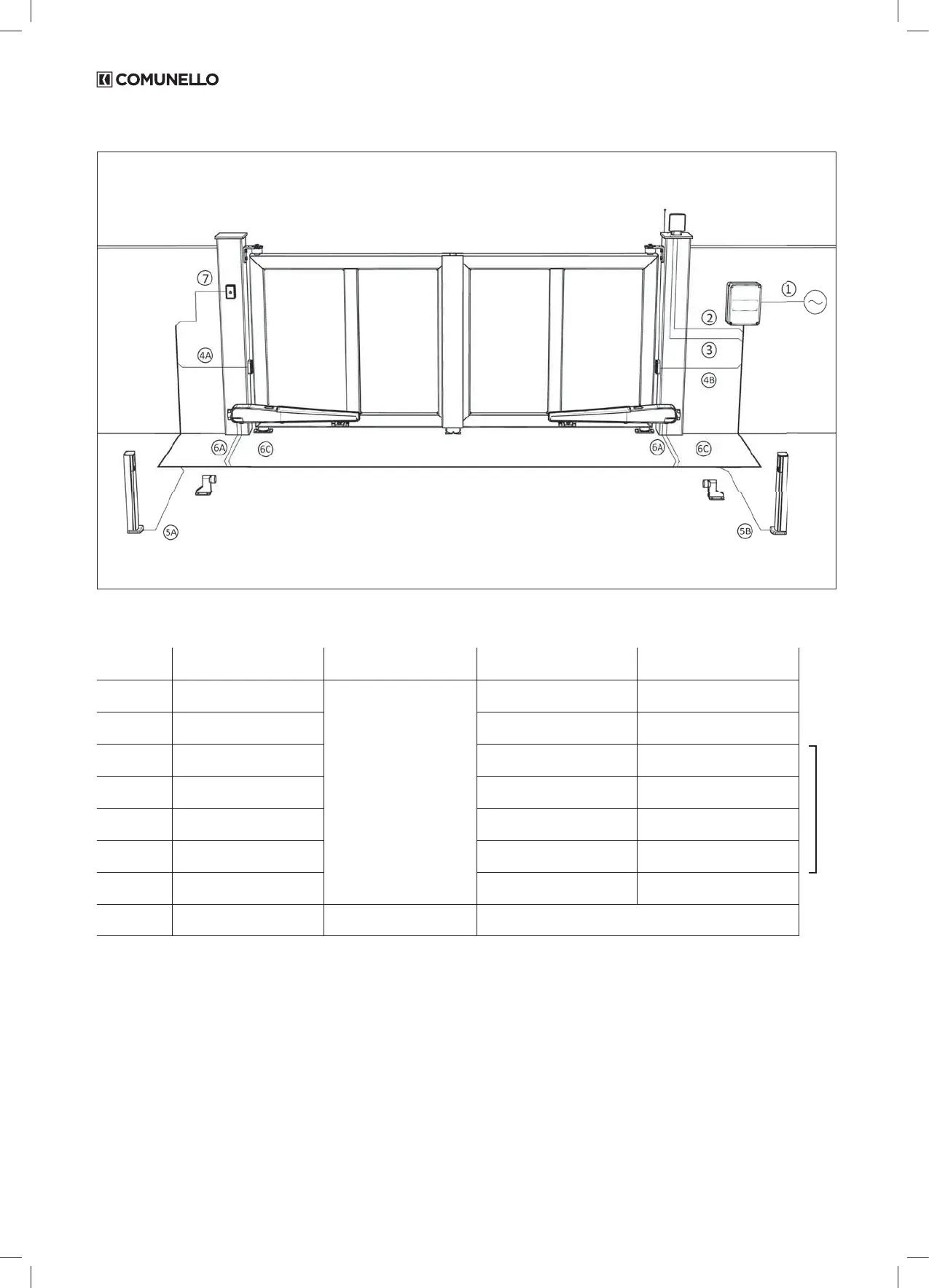

FIG. 4
TABELLA CONNESSIONI CAVI AG01 - WIRES CONNECTION TABLE AG01
ONE 2 M – (QUAD ONE 2 M)
ID Description Cable type Lenght (1m to 20m) Lenght (20m to 50m)
1 Main power supply
HAR EN50575
CPR 305/2011
2x1,5mm2 2x2,5mm2
6A Motor power supply 2x2,5mm2 2x4,0mm2
2 Flashing light 2x0,5mm2 2x1,0mm2
4A , 5A Photocell TX 2x0,5mm2 2x1,0mm2
4B , 5B Photocell RX 2x0,5mm2 2x1,0mm2
7 Key selector 2x0,5mm2 2x1,0mm2
6C Encoder 2x0,5mm2 2x1,0mm2
3 Antenna RG58 max 20m
BUS
To Next Page
