2 MOTORS CONFIGURATION

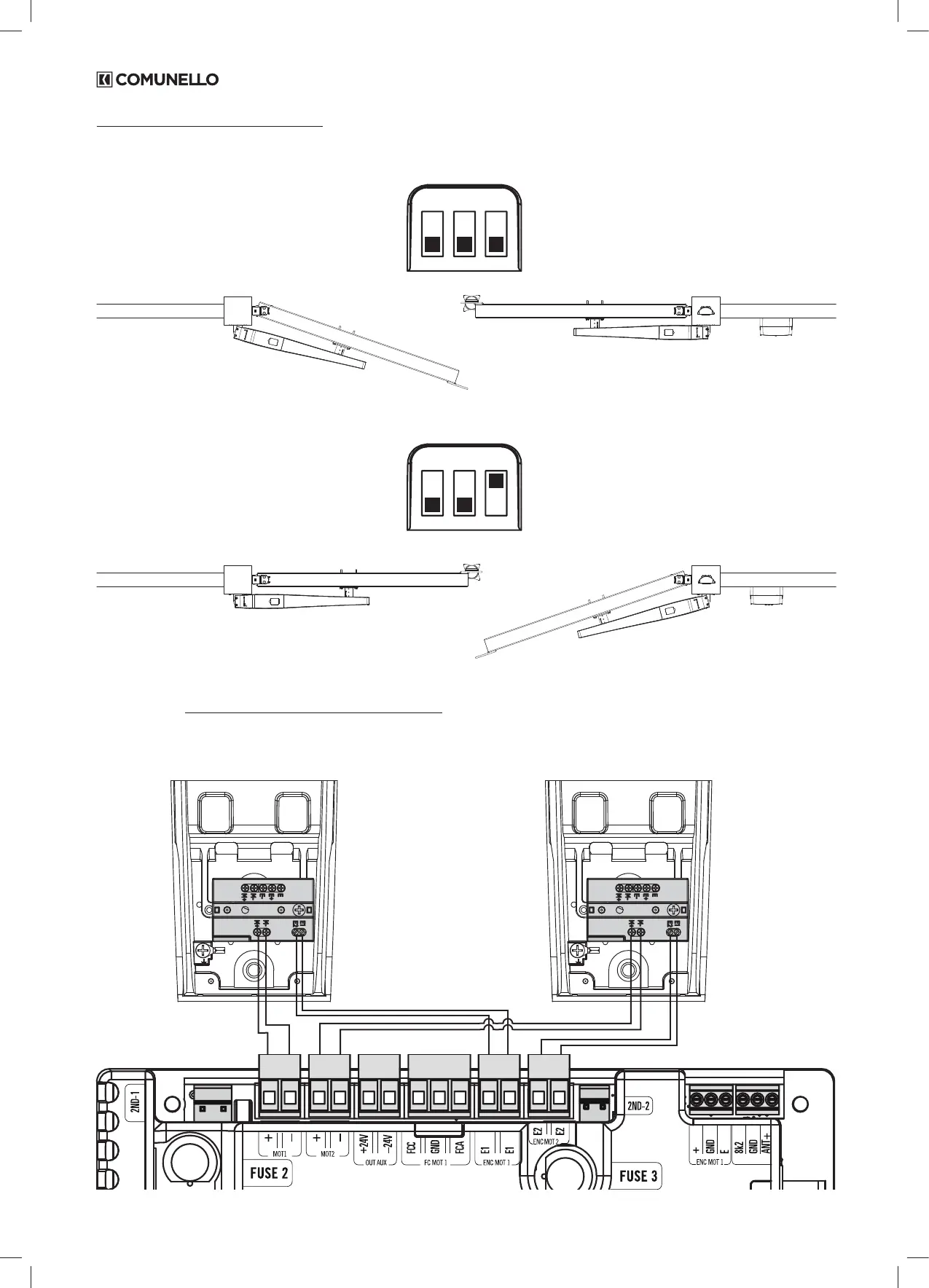

ABACUS - connection diagram of the motors
INV1 INV2 INV1-2
12
12
INV1 INV2 INV1-2
• DELAY OF THE MOTOR n.2
• DELAY OF THE MOTOR n.1
Conguration - MASTER ON THE LEFT, SLAVE ON THE RIGHT
MOT1+ with M+
MOT1- with M1-
MOT2+ with M2+
MOT2- with M2-
