Conair Thermolator TW User Manual

UGH025-0504 Thermolator TW Series
TROUBLESHOOTING 6-27

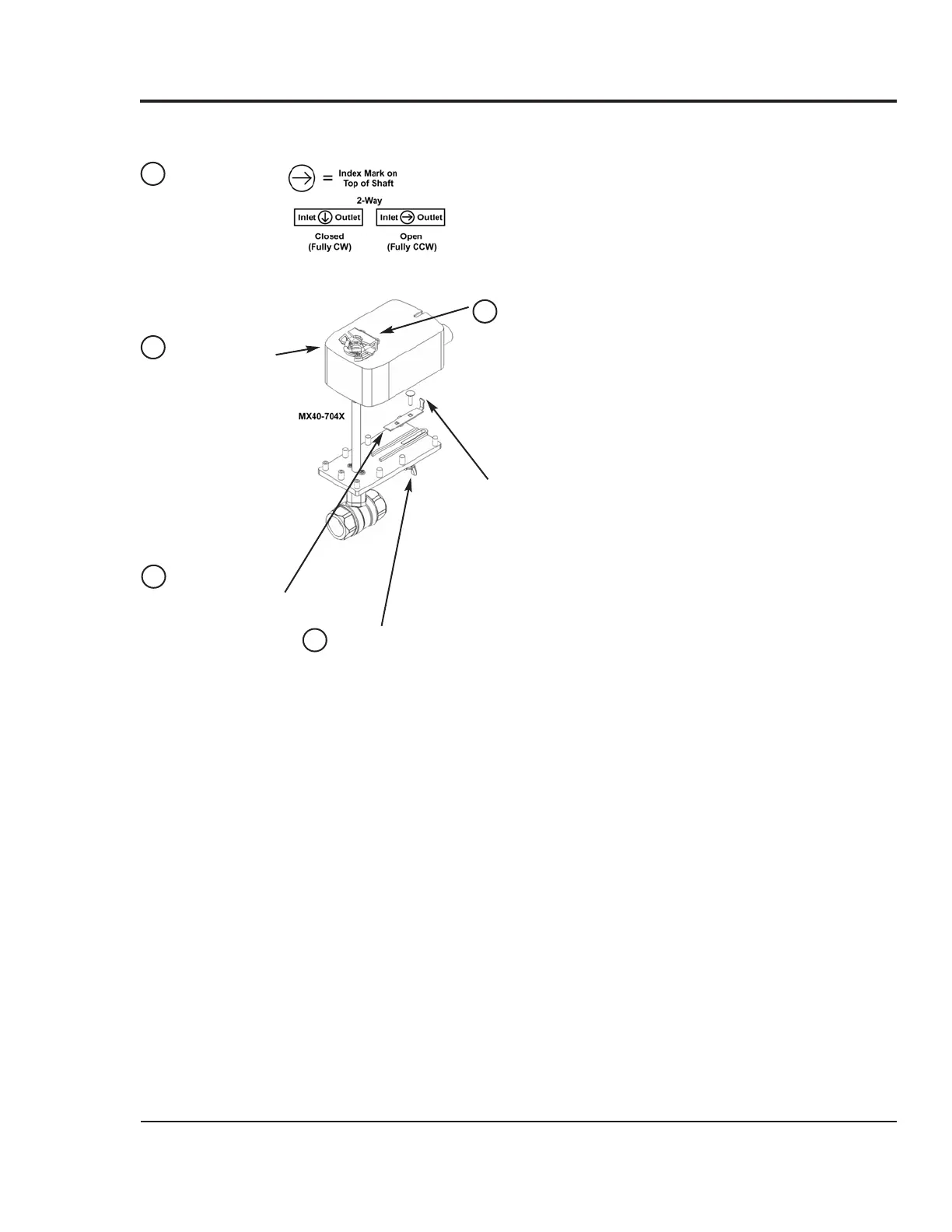

REASSEMBLY
OF
MOTORIZED
VALVES
Verify that the
valve is in the
closed position.
The position of
the ball opening
is indicated by
the index on top
of the shaft.
1
2
Slide the actuator
straight down
over the valve
shaft and onto the
mounting plate,
with the “R” side
facing up. On
MS40-703 mod-
els, the rotation
switch must be in
the “R” position.
Align the actuator
with the mount-
ing plate, then
slide the anti-
rotation clip half
way into the slot
on the bottom of
the actuator.
3
Tighten the wing
nut to secure the
anti-rotation clip
in place. Be care-
ful not to over-
tighten the wing
nut.
4
Clip with 2 Holes
(NYBA-200)
Using a 10 mm
wrench or socket,
evenly tighten the
two nuts on the
shaft clamp,
applying 8 to 10
lb-ft (11 to 14 N-
m) of torque.
5
