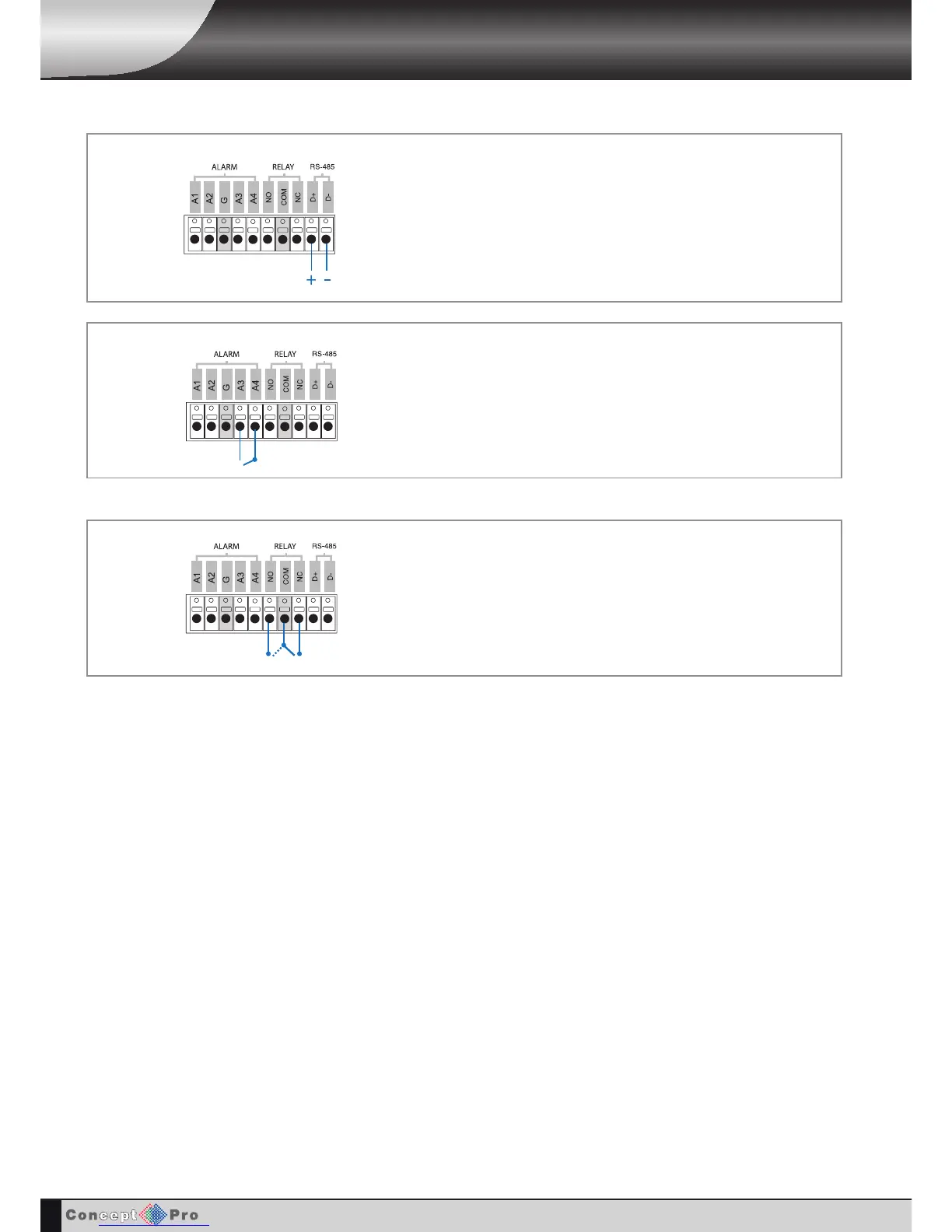

TELEMETRY AND VA-KBDPRO+
Connect RS485D+ to the ‘+’ or ‘A’ terminal of any attached
telemetry devices or VA-KBDPRO+ keyboard. Connect
RS485D- to the ‘-’ or ‘B’ terminals
ALARM INPUTS
Connect voltage free contacts from PIRs, beam break
detectors etc. to the ‘GND’ terminal and ‘INX’ terminals of
choice
RELAY OUTPUT
Connect the ‘COM’ terminal and ‘NO’ or ‘NC’ terminal of
choice to activate low voltage sounders, strobes etc
