Concox GPS Vehicle tracker - Wiring configuration

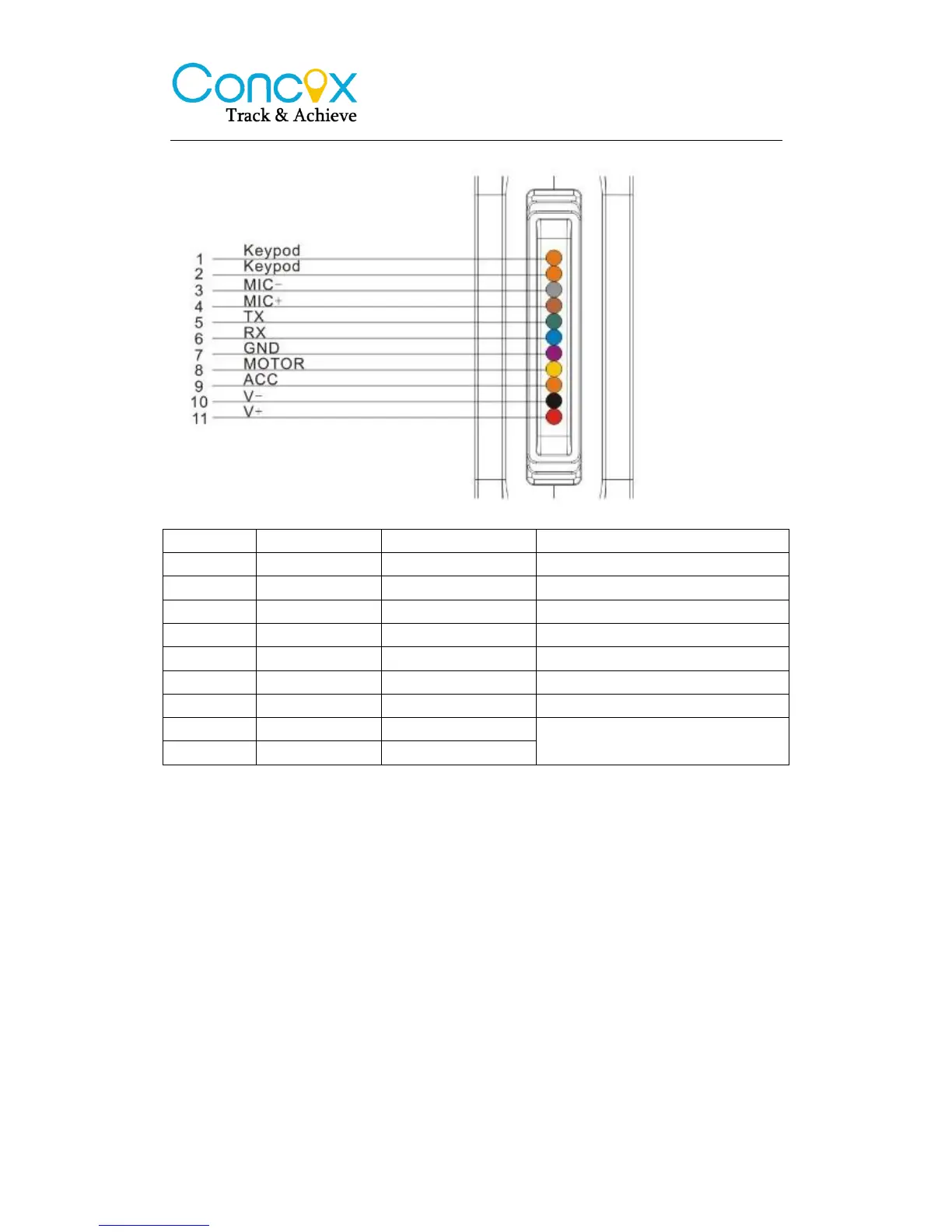

4.3 Wiring configuration
Line No.
Specification
Color
Instruction
1. 2
Keypod
Orange / Orange
Connect to SOS button
3. 4
MIC-,MIC+
Black / Red
Connect to Microphone
5
TX
Green
Sending data (TX) / backup
6
RX
White
Receiving data (RX) / backup
7
GND
Black
Ground wire
8
MOTOR
Yellow
Connect to relay control line
9
ACC
White
Connect to ACC ignition
10
V-
Black(thick)
Negative side of 12V/24V
car storage battery.
11
V+
Red(thick)
Notes of the relay wiring
The relay wiring of pump: oil connectors of both ends are a fine white line (85)
and a fine yellow line (86). The fine white line (85) is connected to vehicle
positive power (+12V). The fine yellow line is connected to the device relay
control line.
Cut off the positive connection line of the pump; then connect in series to the
relay N.C. contact (thick green line 87a) and the other end to relay COM
contact (thick green line 30).
