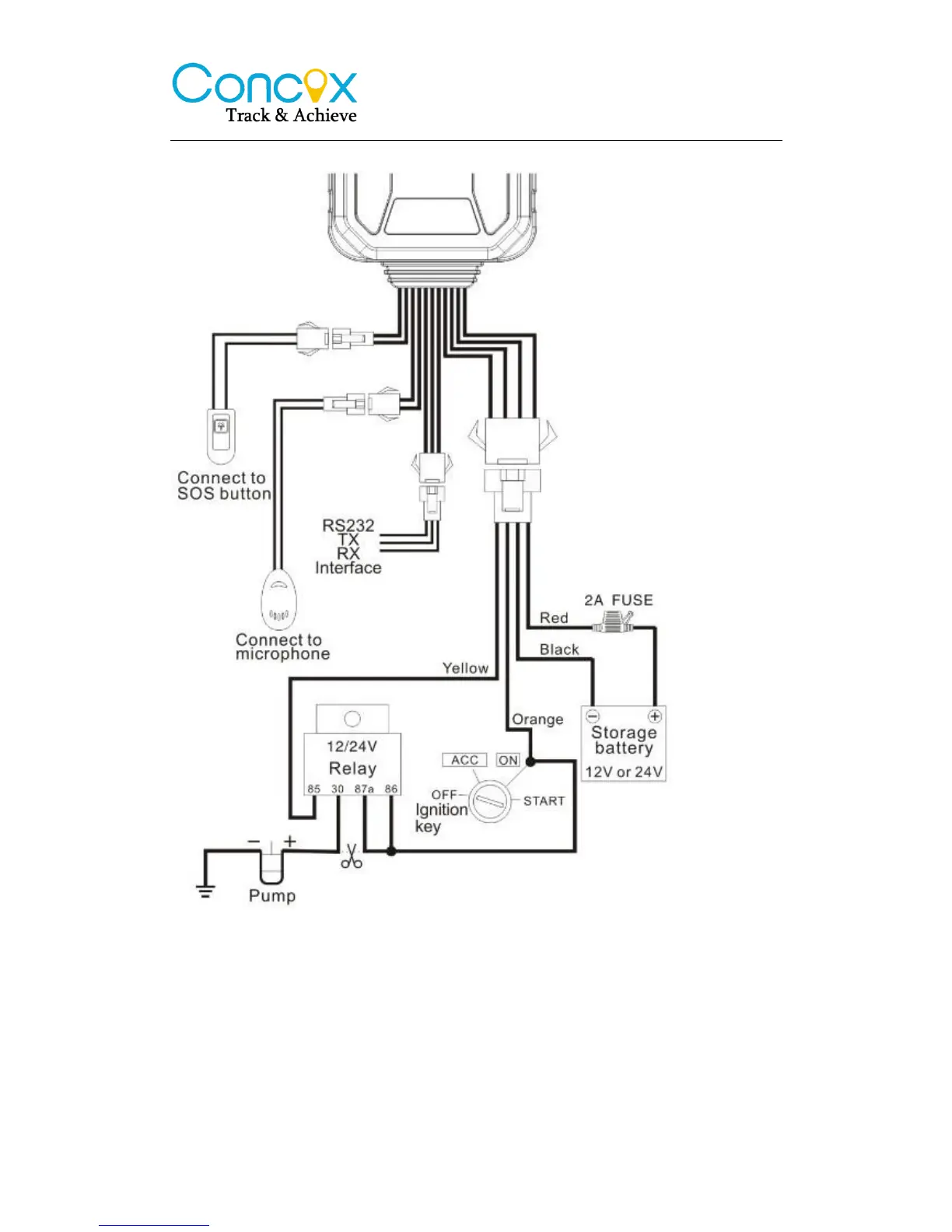

4.4 Device wiring diagram
Please choose the right relay (12V-standard / 24V-optional) for the proper installation.
4.5 Power/ACC/Tele-cutoff(petrol/electricity) control line (4 pin)
1. Your device comes with a power cord and is designed to use only
manufacturer-specified original device. The red line is positive while the black
one is negative (the side should not be connect with ground wire).
2. The ACC line (white) connects to ACC switch of the vehicle. Please be sure
