19 | Nortec SAM-e Installation

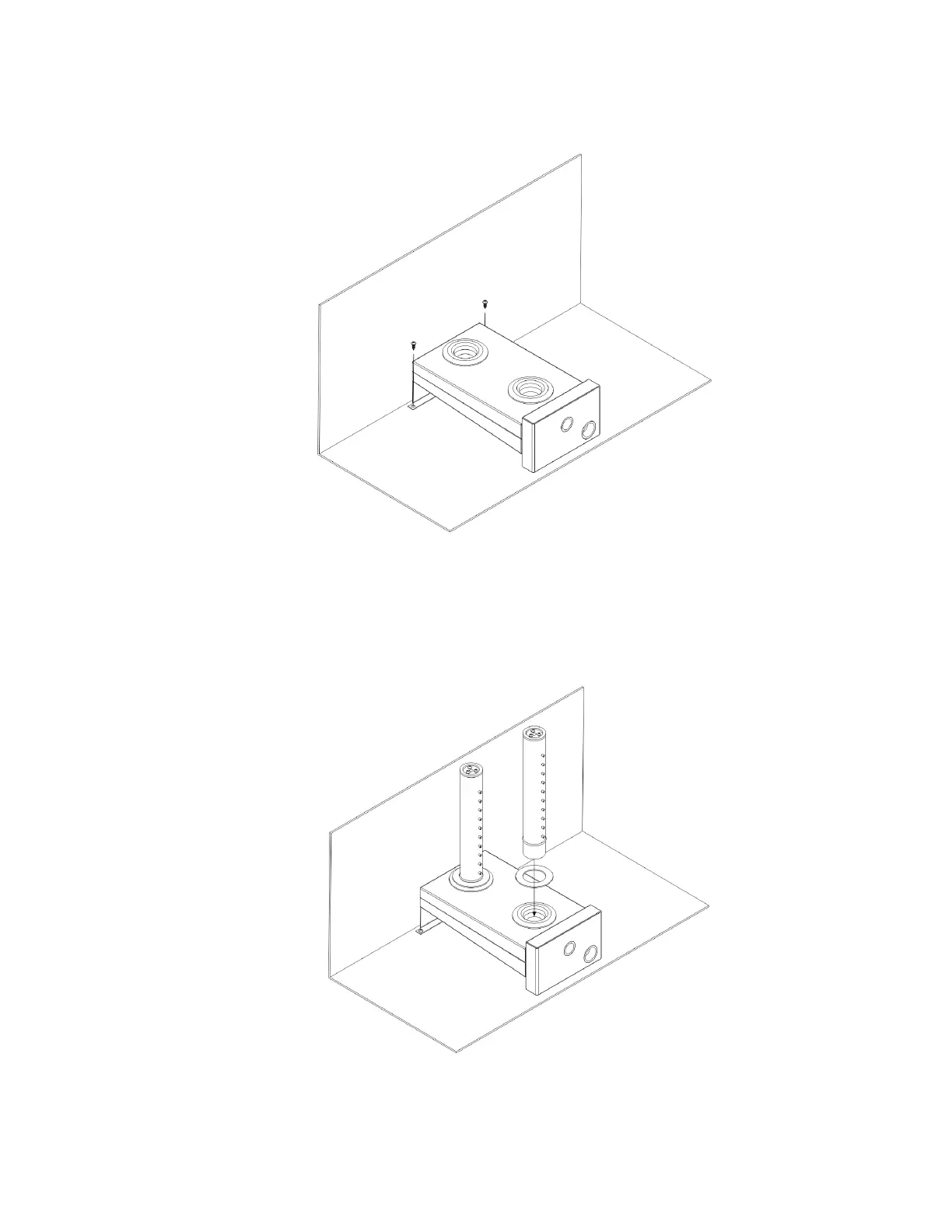

Typical Nortec Mini SAM-e Installation
1
Place header into duct. Use supplied template to cut
holes for steam and condensate parts. Attach
header to duct using field-supplied fasteners.
2
Insert steam tubes with Insertion stop washers,
ensuring nozzles are perpendicular to airflow. Using
water to wet the rubber grommets will facilitate
installation. Seal all ductwork.
