INSTALLATION
6.1
INSTALLATION DIMENSIONS
The the built-in rotary flange may be mounted in both horizontal and vertical pipes.

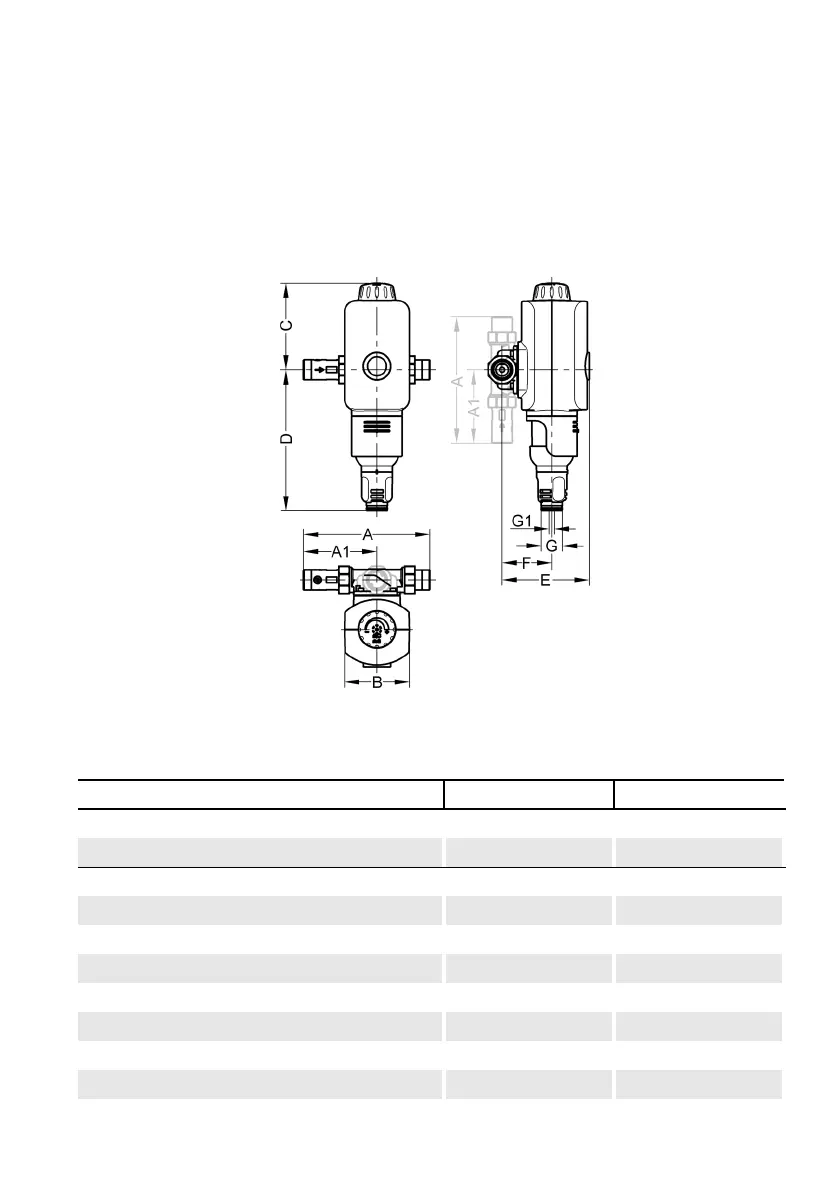

Fig. 3: Installation dimensions
Installation dimensions CLEAR 2.0 RD 1½" CLEAR 2.0 RD 2"
A: Fitting length with screw connection 301 335
A: Fitting length without screw connection 160 164
A1: Length on inlet side 175 195
B: Unit width 154 154
C: Height above pipe centre 207 207
D: Height below pipe centre 335 335
E: Depth to pipe centre 207 215
F: Waste water connection centre to pipe centre 118 126
G: Connection dimension waste water 50 50
G1: Connection dimension waste water (alternative) 13 13
All dimensions in [mm]
