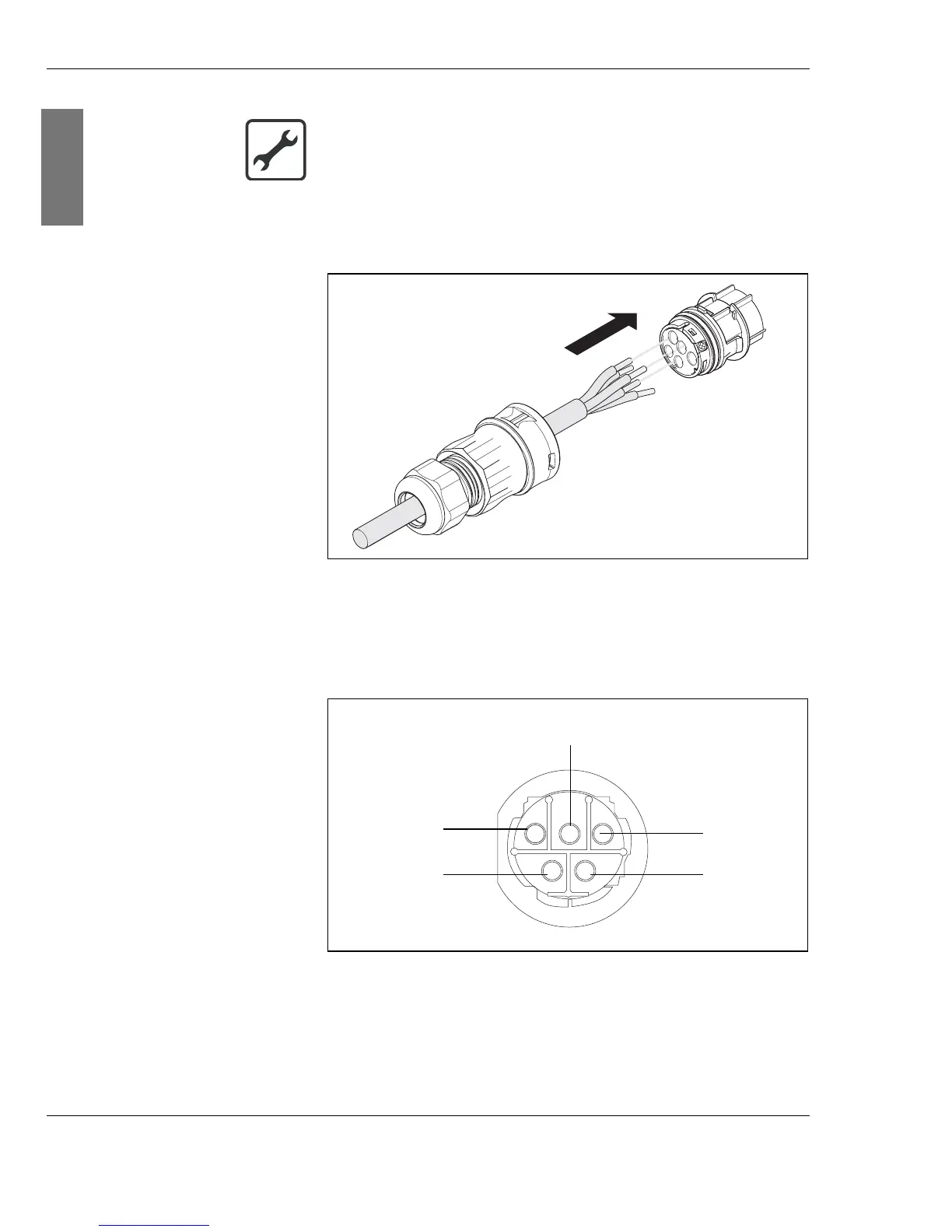

3. Guide the cable through the nut (1) and the cap (2).
Fig. 6-3: Connecting to the end piece
4. Connect the ends of the wire strands to the sockets of the
end piece in accordance with the terminal connecting plan
(3).
Fig. 6-4: End piece terminal connecting plan (3) for stripped
cable
Connecting the mains cable
1. Remove the sheathing from the cable to a length of 35 mm.
2. Strip the cable for a length of 9 mm with a wire stripper.
(3)
(2)
(1)
N
L
2
1
PE (earth)
Neutral
wire
not used
L1 (feed
phase)
not used
