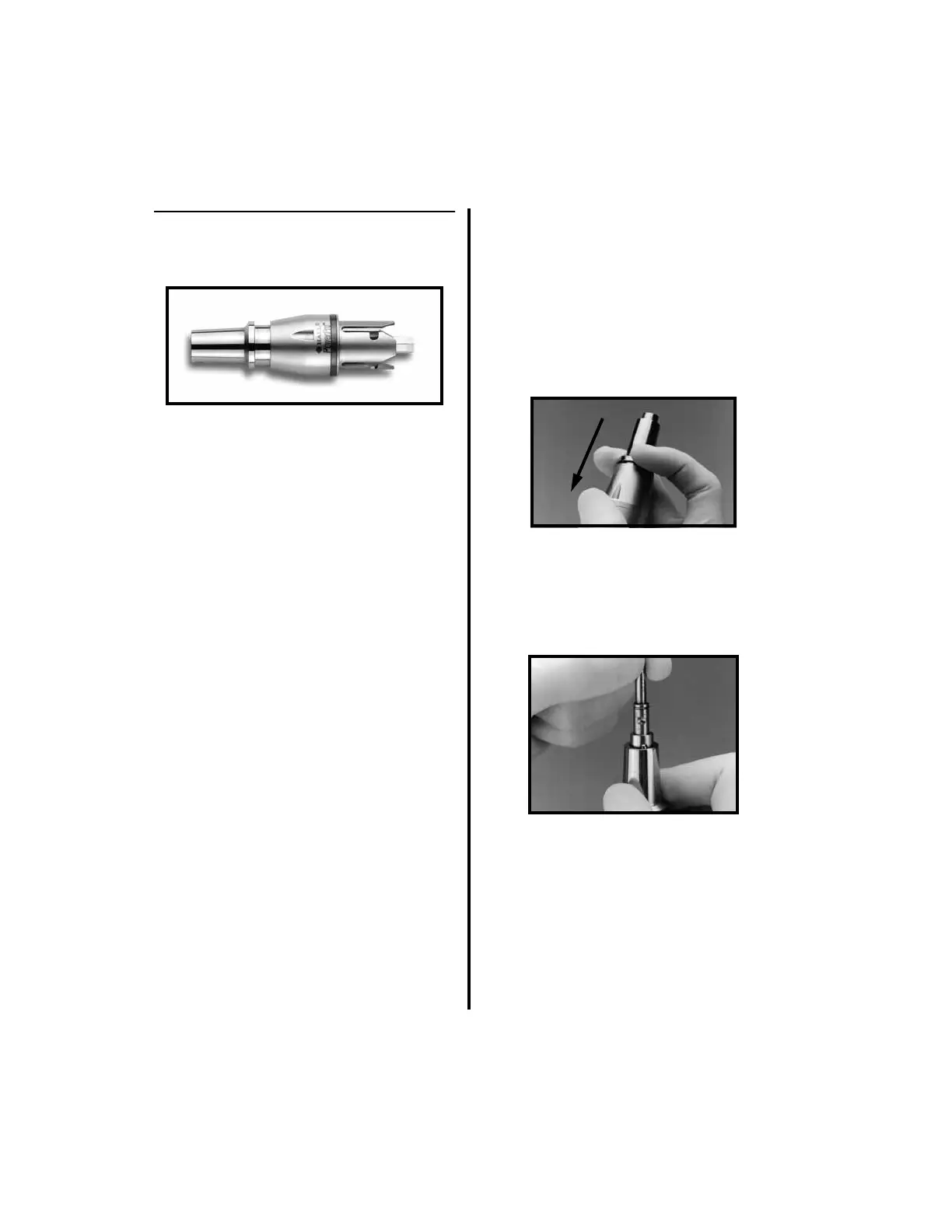

2.1.2.4 Trinkle /AO Attachment
(PRO2029)
Specifications:
Collet: Accepts Trinkle and ASIF/AO
accessories
Cannulation: 3.4 mm
Color Ring: Purple
Trinkle Shank Accessories for the Trinkle/AO
Attachment
1. To attach accessories to the Trinkle/AO
attachment:
(a) Place the handpiece in the safe posi-
tion.
(b) Pull the collet sleeve back.
(c) Align the dimple on the Trinkle shank
with the black arrow on the outer collet
sleeve. Totally insert the Trinkle shank.
The spring-loaded inner sleeve will
retract.
(d) Release the collet sleeve and rotate the
accessory until it is completely
engaged. Pull the accessory firmly to
ensure proper engagement.
(e) To remove the accessory, pull back the
outer collet sleeve and remove the
accessory.
