AO/ASIF Drill Bits for the Trinkle/AO
Attachment

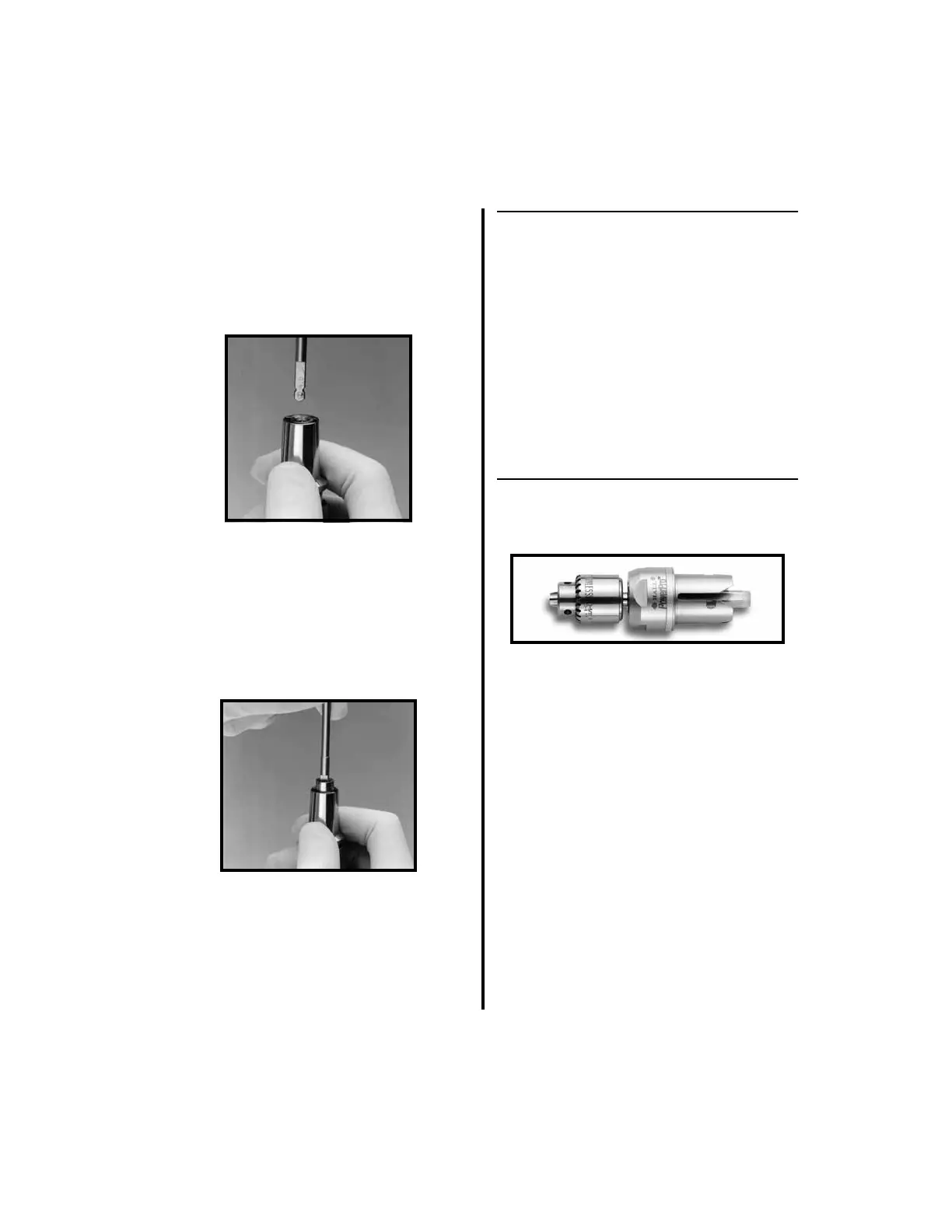

1. Align the flat portion of the drill bit shank
with the black arrow on the outer collet
sleeve.
2. Insert the drill bit shank into the collet as far
as it will go without pulling back the collet
sleeve. Twist the shank to make sure it is
aligned properly, it should not spin in the
collet.
3. Pull back on the collet sleeve while pushing
the shank completely into the collet.
4. Release the collet sleeve. The shank is now
locked into the collet. Pull the drill bit
firmly to verify it is properly seated.
5. To remove the drill bit, pull back on the col-
let sleeve and remove the bit.
2.1.3 Jacobs Chucks
1. To attach accessories to the Jacobs Chuck
attachments:
(a) Place the handpiece in the safe posi-
tion.
(b) Insert the accessory shank into the
chuck. Secure the chuck with the
Jacobs Chuck Key.
2.1.3.1 5/32” Jacobs Chuck
(PRO2030)
Specifications:
Collet: 5/32” Jacobs Chuck
Cannulation: 3.9 mm
Color Ring: Green
Replacement Key: 999-53
