Consew 206RB - Parts List and Diagrams

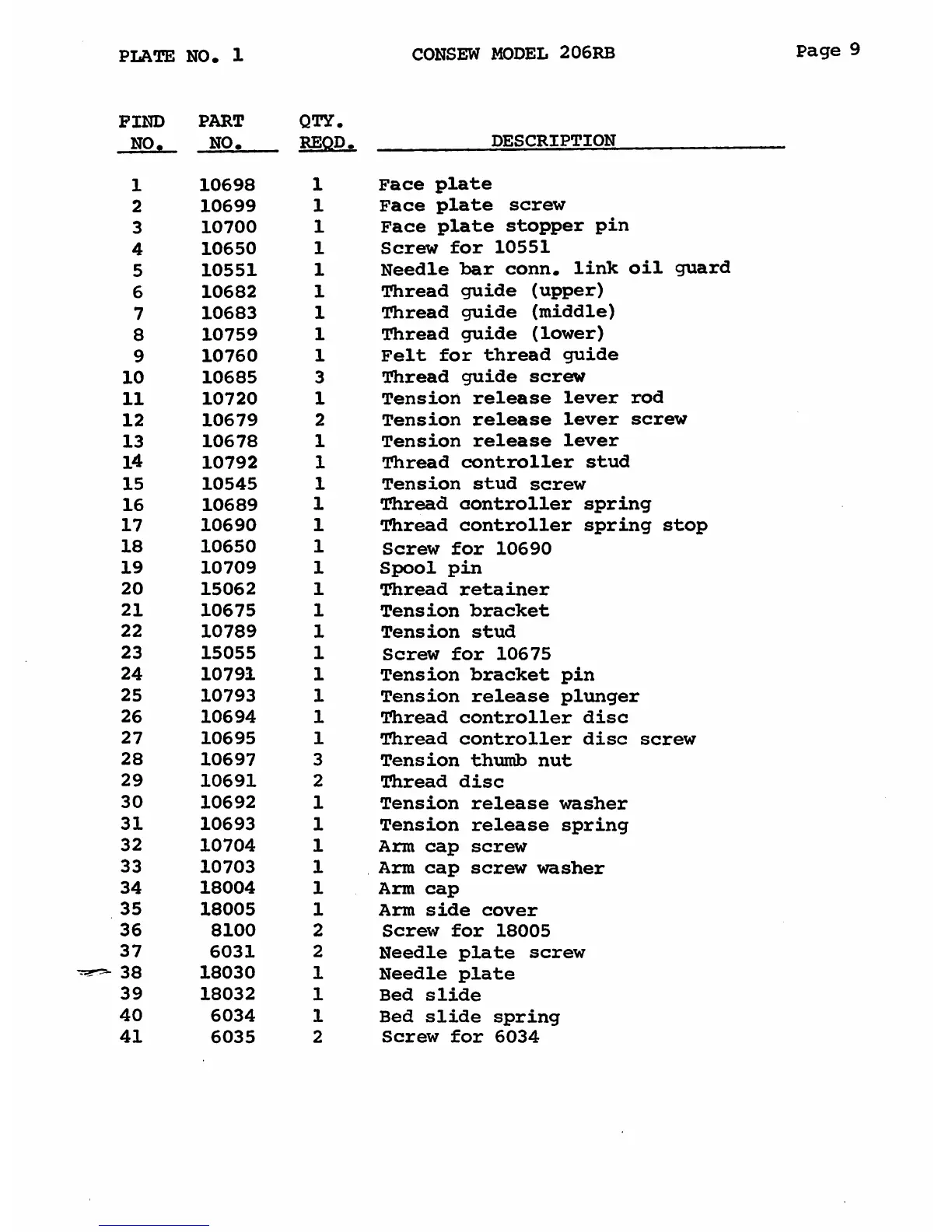

19IATE NO. 1
CONSEW MODEL
206RB
FIND
PART QTY.
NO.
NO.
REQD.
DESCRIPTION
1
10698
1
Face plate
2
10699 1
Face plate screw
3
10700 1
Face plate stopper pin
4
10650 1
Screw for 10551
5
10551
1
Needle bar conn, link oil guard
6
10682 1
Thread guide (upper)
7
10683 1
Thread guide (middle)
8
10759
1
Thread guide (lower)
9
10760
1
Felt for thread guide
10
10685
Thread guide screw
11
10720 1
Tension release lever rod
12
10679
Tension release lever screw
13
10678
1
Tension release lever
14
10792 1
Thread controller stud
15 10545
1 Tension stud screw
16 10689
1
Thread controller spring
17
10690 1 Thread controller spring stop
18 10650 1
Screw for 10690
19
10709 1
Spool pin
20
15062
1 Thread retainer
21
10675 1
Tension bracket
22
10789
1
Tension stud
23
15055
1
Screw for 10675
24 10791
1
Tension bracket pin
25
10793 1 Tension release plunger
26 10694 1
Thread controller disc
27 10695 1
Thread controller disc screw
28
10697
Tension thumb nut
29 10691
Thread disc
30
10692
1
Tension release washer
31
10693
1
Tension release spring
32
10704 1
Arm cap screw
33 10703
1
Arm cap screw washer
34
18004
Ainn cap
35
18005 1
Arm side cover
36 8100 Screw for 18005
37
6031
Needle plate screw
38 18030
1
Needle plate
39
18032
1
Bed slide
40
6034
1
Bed slide spring
41
6035
2
Screw for 6034
page 9
