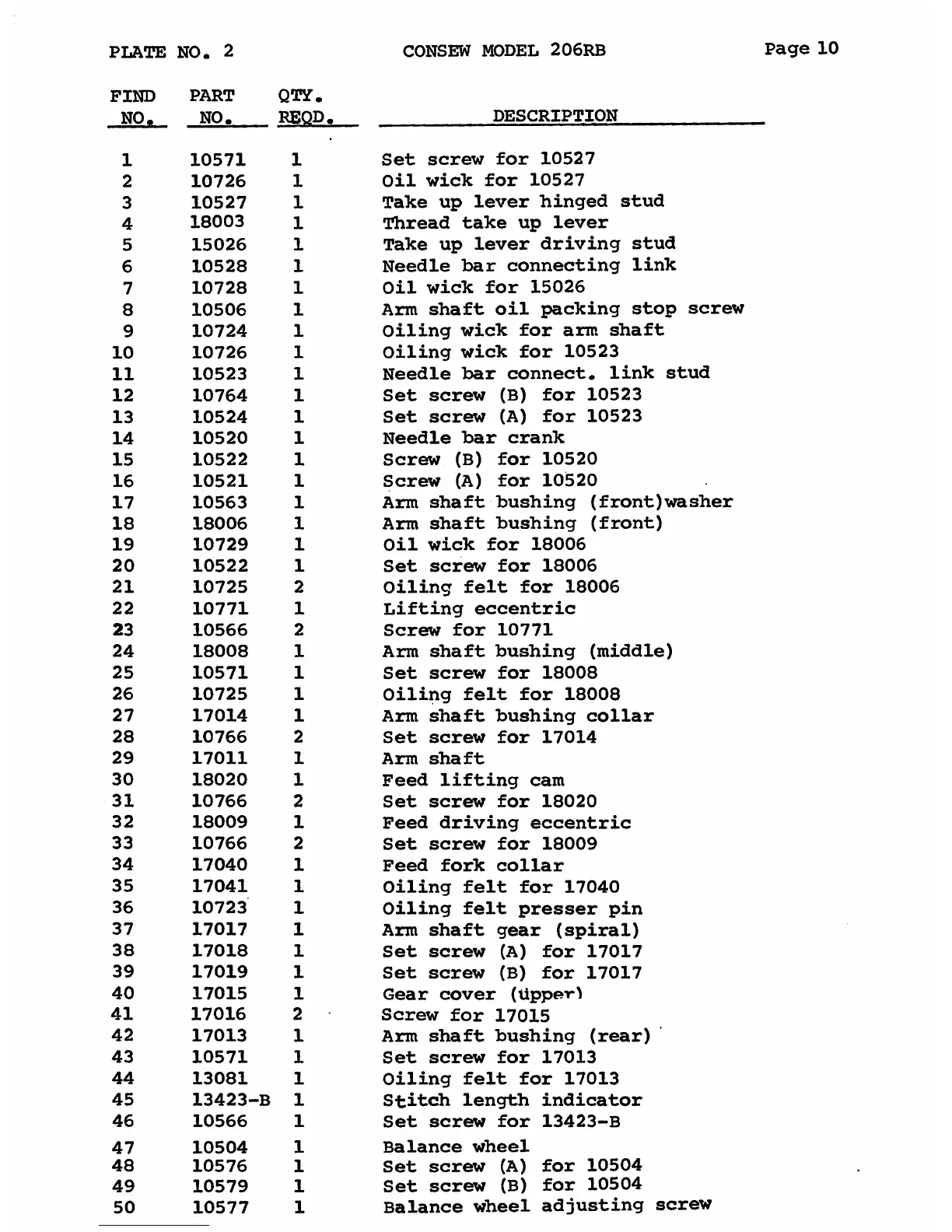

PLATE NO. 2
CONSEW MODEL 206RB
FIND
PART QTJT.
NO.
NO.
RBQD.
DESCRIPTION
1 10571
1
Set screw for 10527
2 10726
1
Oil wick for 10527
3
10527
1
Take up lever hinged stud
4
18003
1
Thread take up lever
5
15026
1 Take up lever driving stud
6
10528 1
Needle bar connecting link
7
10728
1
Oil wick for 15026
8 10506
1
Arm shaft oil packing stop screw
9
10724
1
Oiling wick for arm shaft
10 10726
1
Oiling wick for 10523
11
10523 1 Needle bar connect, link stud
12 10764 1
Set screw (B) for 10523
13
10524
1
Set screw (A) for 10523
14
10520 1 Needle bar crank
15
10522
1
Screw (B) for 10520
16
10521 1 Screw (A) for 10520
17
10563
1 Arm shaft bushing (front)washer
18
18006 1 Arm shaft bushing (front)
19
10729 1
Oil wick for 18006
20
10522 1
Set screw for 18006
21 10725
Oiling felt for 18006
22
10771
1
Lifting eccentric
23 10566 Screw for 10771
24
18008
1 Arm shaft bushing (middle)
25
10571
1
Set screw for 18008
26
10725
1
Oiling felt for 18008
27 17014 1 Arm shaft bushing collar
28
10766 Set screw for 17014
29 17011
1 Arm shaft
30
18020 1 Feed lifting cam
31
10766
Set screw for 18020
32
18009
1 Feed driving eccentric
33
10766
Set screw for 18009
34
17040
1
Feed fork collar
35
17041
1
Oiling felt for 17040
36 10723
1
Oiling felt presser pin
37
17017 1
Arm shaft gear (spiral)
38
17018 1
Set screw (A) for 17017
39
17019
1
Set screw (B) for 17017
40
17015 1
Gear cover (tipper-^
41
17016
Screw for 17015
42
17013 1 Arm shaft bushing (rear)
43
10571 1
Set screw for 17013
44
13081 1
Oiling felt for 17013
45
13423-B
1
Stitch length indicator
46 10566 1
Set screw for 13423-B
47
10504
1
Balance wheel
48
10576
1 Set screw (A) for 10504
49 10579 1 Set screw (B) for 10504
50
10577
1
Balance wheel adjusting screw
Page 10
