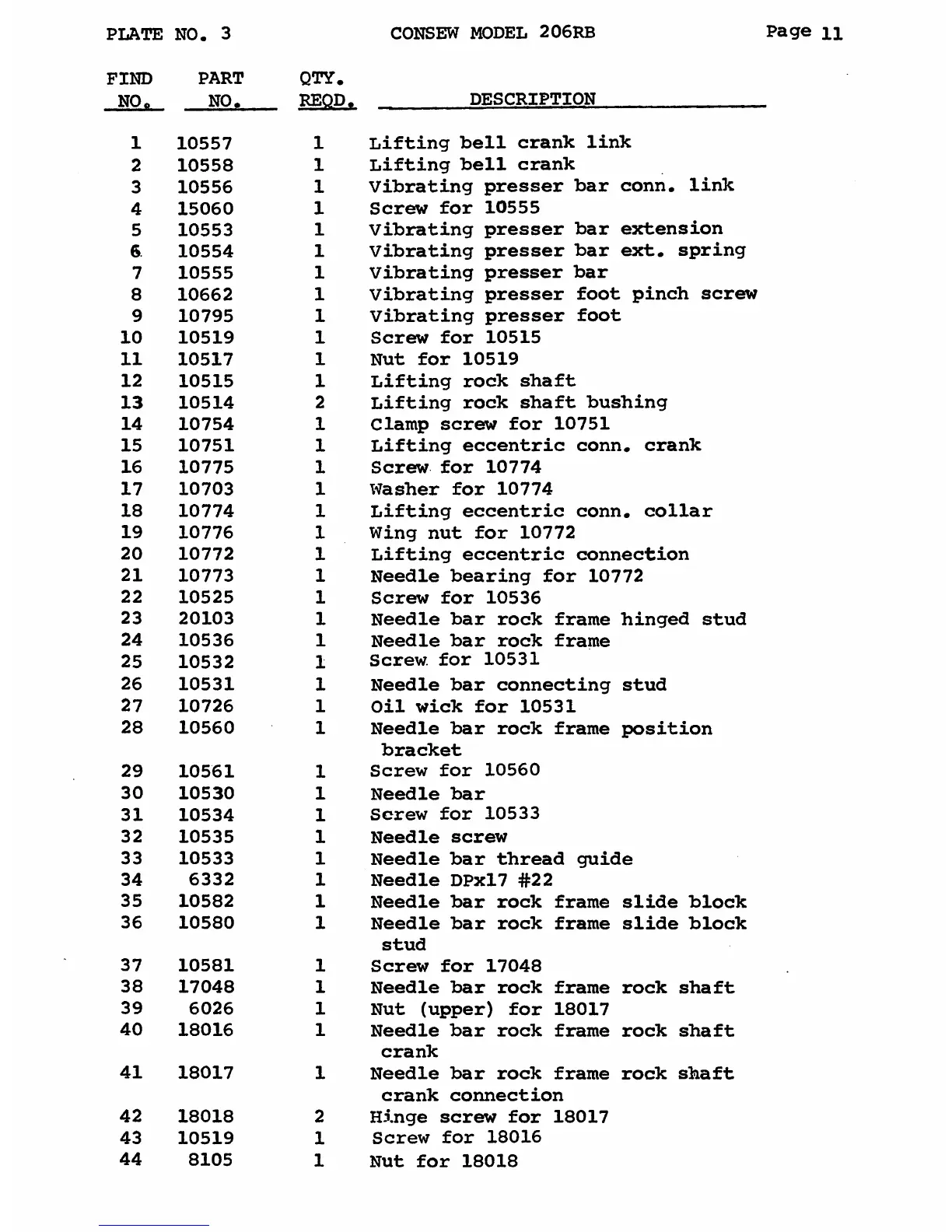

PLATE NO. 3
CONSEW MODEL 206RB
Page n
FIND
PART
QTY.
NO.
NO.
REQD.
DESCRIPTION
1
10557
1
Lifting bell crank link
2 10558
1 Lifting bell crank
3 10556
1
Vibrating presser bar conn, link
4
15060 1 Screw for 10555
5
10553
1
Vibrating presser bar extension
6 10554
1 Vibrating presser bar ext. spring
7
10555
1
Vibrating presser bar
8 10662 1 Vibrating presser foot pinch screw
9
10795
1
Vibrating presser foot
10 10519 1
Screw for 10515
11
10517
1
Nut for 10519
12
10515 1 Lifting rock shaft
13
10514 Lifting rock shaft bushing
14 10754 1 Clamp screw for 10751
15 10751 1 Lifting eccentric conn, crank
16 10775 1 Screw for 10774
17 10703 1 Washer for 10774
18
10774 1 Lifting eccentric conn, collar
19
10776
1 Wing nut for 10772
20
10772
1 Lifting eccentric connection
21
10773
1
Needle bearing for 10772
22
10525 1
Screw for 10536
23 20103
1
Needle bar rock frame hinged stud
24
10536 1
Needle bar rock frame
25
10532
1
Screw, for 10531
26
10531
1 Needle bar connecting stud
27 10726 1
Oil wick for 10531
28
10560
Needle bar rock frame position
bracket
29
10561
1
Screw for 10560
30
10530
1
Needle bar
31
10534
1
Screw for 10533
32
10535 1
Needle screw
33
10533 1
Needle bar thread guide
34
6332
1
Needle DPxl7 #22
35 10582
1
Needle bar rock frame slide block
36
10580 1
Needle bar rock frame slide block
stud
37 10581
1
Screw for 17048
38
17048 1
Needle bar rock frame rock shaft
39
6026 1
Nut (upper) for 18017
40
18016
1
Needle bar rock frame rock shaft
crank
41
18017 1
Needle bar rock frame rock shaft
crank connection
42
18018
Hinge screw for 18017
43 10519
1
Screw for 18016
44
8105
1
Nut for 18018
