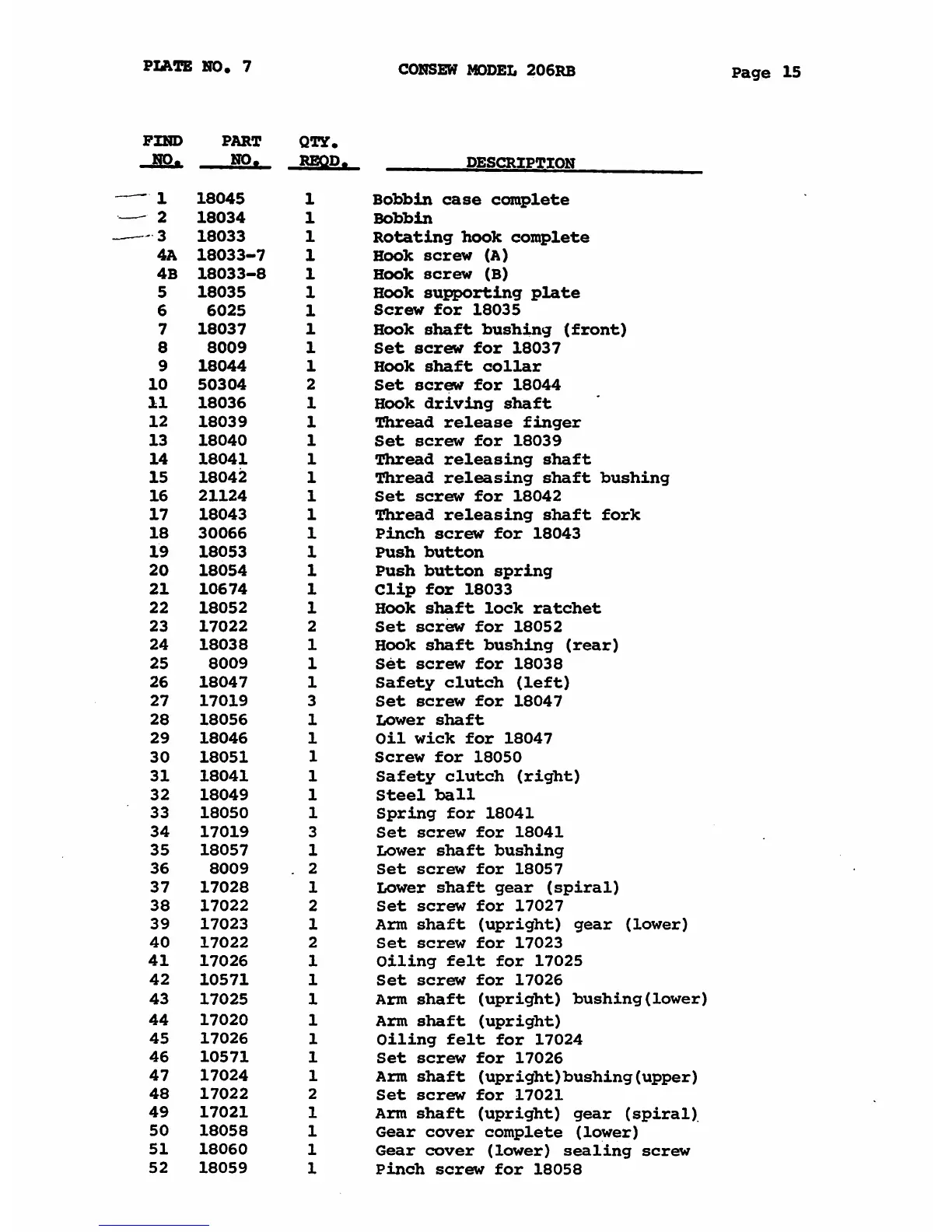

PIATE
NO. 7
CONSEN MODEL 206RB
FIND
PART
QTT.
NO.
REDD.
DESCRIPTION
- 1
18045 1
Bobbin case coiaplete
- 2
18034
1
Bobbin
-3
18033
1
Rotating hook complete
4A
18033-7 1 Hook screw (A)
4B
18033-8 1 Hook screw (B)
5 18035
1 Hook supporting plate
6 6025
1
Screw for 18035
7
18037
1
Hook shaft bushing (front)
8 8009
1
Set screw for 18037
9 18044 1 Hook shaft collar
10 50304
Set screw for 18044
11 18036
1 Hook driving shaft
12
18039
1 Thread release finger
13 18040 1
Set screw for 18039
14 18041 1 Thread releasing shaft
15
18042
1 Thread releasing shaft bushing
16 21124 1 Set screw for 18042
17
18043 1 Thread releasing shaft fork
18
30066 1
Pinch screw for 18043
19
18053 1 Push button
20
18054
1 Push button spring
21 10674
1
Clip for 18033
22
18052
1
Hook shaft lock ratchet
23 17022
Set screw for 18052
24 18038
1 Hook shaft bushing (rear)
25
8009
1 Set screw for 18038
26
18047
1 Safety clutch (left)
27
17019
Set screw for 18047
28 18056 1 Lower shaft
29 18046
1 Oil wick for 18047
30
18051
1
Screw for 18050
31 18041 1
Safety clutch (right)
32 18049
1
Steel ball
33 18050
1
Spring for 18041
34 17019
Set screw for 18041
35
18057 1 Lower shaft bushing
36 8009
Set screw for 18057
37
17028
1
Lower shaft gear (spiral)
38
17022
Set screw for 17027
39
17023 1 Arm shaft (upright) gear (lower)
40 17022
Set screw for 17023
41
17026 1 Oiling felt for 17025
42
10571
1
Set screw for 17026
43
17025 1
Airm shaft (upright) bushing (lower)
44
17020
1
Arm shaft (upright)
45
17026
1
Oiling felt for 17024
46 10571
1
Set screw for 17026
47 17024
1
Arm shaft (upright)bushing(upper)
48 17022
Set screw for 17021
49 17021
1
Arm shaft (upright) gear (spiral)
50
18058
1
Gear cover complete (lower)
51
18060
1
Gear cover (lower) sealing screw
52
18059
1
Pinch screw for 18058
Page 15
