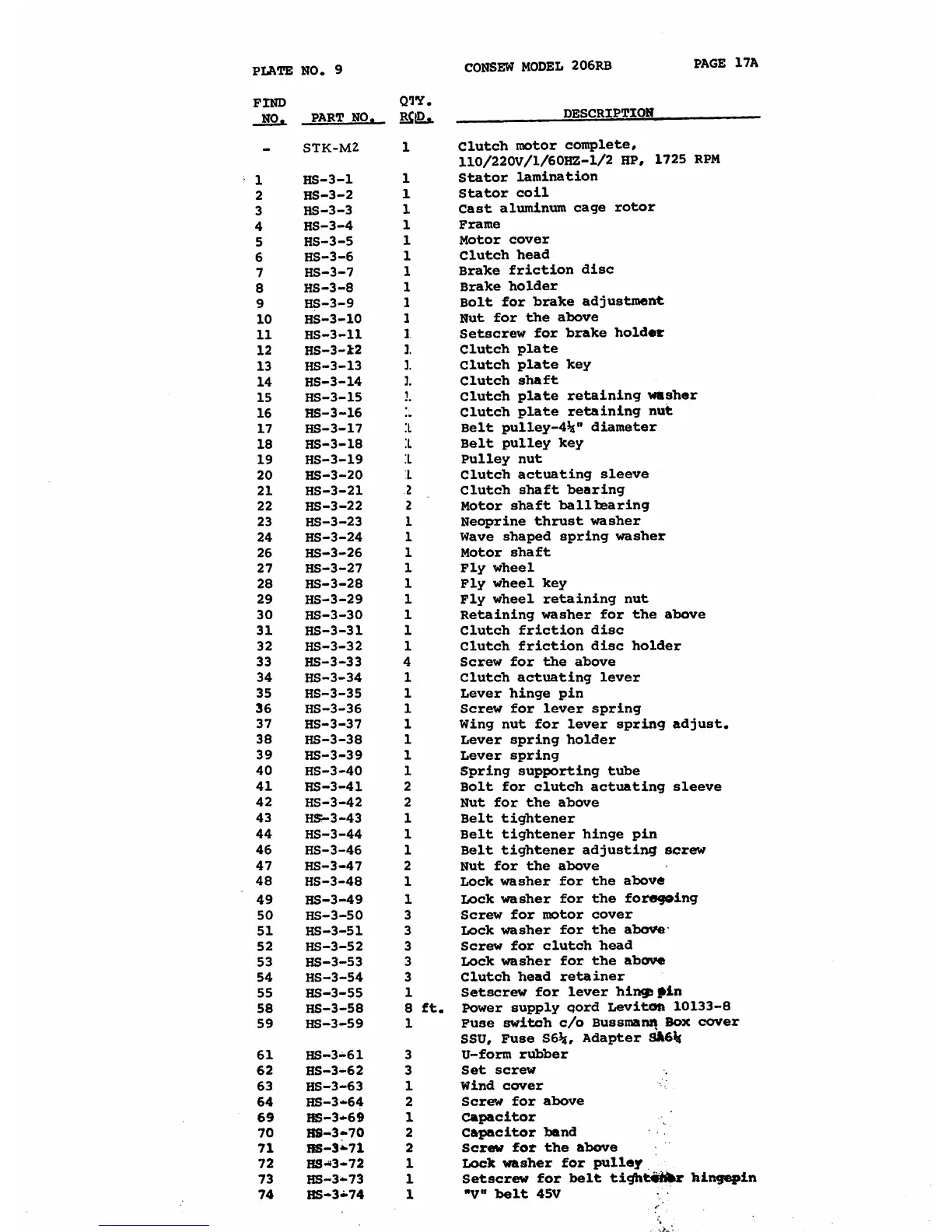

PLATE NO. 9
CONSEW MODEL 206RB PAGE 17A
FIND
QIY.
PART NO.
1
DESCRIPTION
STK-M2
Clutch motor complete.
110/220V/1/60HZ-1/2 HP, 1725 RPM
1
HS-3-1
1
Stator lamination
2
HS-3-2
1
Stator coil
3
HS-3-3
1
Cast alminum cage rotor
4
HS-3-4
1
Frame
5
HS-3-5
1
Motor cover
6
HS-3-6
1
Clutch head
7
HS-3-7
1
Bralce friction disc
8
HS-3-8
1
BraTce holder
9
HS-3-9
1
Bolt for bralce adjustment
10
HS-3-10
1
Nut for the above
11
HS-3-11
1
Setscrew for bralce holder
12
HS-3-i2 3.
Clutch plate
13
HS-3-13
3.
Clutch plate key
14
HS-3-14
].
Clutch shaft
15
HS-3-15
Clutch plate retaining \msher
16
HS-3-16
Clutch plate retaining nut
17
HS-3-17
:l
Belt pulley-4%" diameter
18
HS-3-18
1
Belt pulley key
19
HS-3-19
.1
Pulley nut
20 HS-3-20
L
Clutch actuating sleeve
21
HS-3-21
2
Clutch shaft bearing
22
HS-3-22
2
Motor shaft ballbearing
23 HS-3-23 1
Neoprine thrust washer
24 HS-3-24
1 Wave shaped spring washer
26
HS-3-26
1 Motor shaft
27
HS-3-27
1 Fly wheel
28 HS-3-28
1
Fly wheel key
29 HS-3-29
1
Fly wheel retaining nut
30
HS-3-30 1 Retaining washer for the above
31
HS-3-31 1
Clutch friction disc
32 HS-3-32 1 Clutch friction disc holder
33 HS-3-33
Screw for the above
34
HS-3-34
1 Clutch actuating lever
35
HS-3-35
1
Lever hinge pin
36 HS-3-36
1
Screw for lever spring
37
HS-3-37 1 Wing nut for lever spring adjust.
38
HS-3-38 1 Lever spring holder
39
HS-3-39
1
Lever spring
40
HS-3-40 1
Spring supporting tube
41
HS-3-41 Bolt for clutch actuating sleeve
42
HS-3-42
Nut for the above
43
HS^3-43 1 Belt tightener
44
HS-3-44 1 Belt tightener hinge pin
46 HS-3-46 1 Belt tightener adjusting screw
47
HS-3-47 Nut for the above
48
HS-3-48 1 Lock washer for the above
49
HS-3-49 1
Iiock washer for the foregoing
50 HS-3-50 3
Screw for motor cover
51
HS-3-51 3
Lock washer for the al)ove
52
HS-3-52 3
Screw for clutch head
53 HS-3-53
3
Ix>ck washer for the above
54 HS-3-54
3
Clutch head retainer
55 HS-3-55
1
Setscrew for lever hin^ pin
58
HS-3-58 8 ft.
Power supply qord Leviton 10133-8
59
HS-3-59
1
Fuse switch c/o Bussmanit Box cover
SSU, Fuse S6%, Adapter £A6%
61
HS-3-61
3
U-f03cm rubber
62 HS-3-62 3
Set screw
63
HS-3-63
1
Wind cover
64 HS-3-64
2
Screw for above
69
BS-3-69
1
Capacitor
70
HS-3-70 2
capacitor band
71 HS-3i'7l
2 Screw for the alaove
72 HS-«3-72 1
Lock washer for pulley
73
HS-3-73
1
Setscrew for laelt tight^^Mto hingepin
74
HS-3-74 1
"V belt 45V
