UNDERFLOOR HEATING
1. Before you start
Symbols explanation:
S – Volt-free contact
T – Temperature sensor
S1, S2 Terminals:
- Air or oor temperature sensor
- External volt-free contact to connect any
ON/OFF switch or occupancy sensor
S1
S2
T
S
Wall mounting
The ideal position to mount the thermostat is 1.5m above oor level and away from heat sources.
The Quantum digital thermostat-RF should not be exposed to sunlight or any extreme conditions
(including draughts).
1
2
3

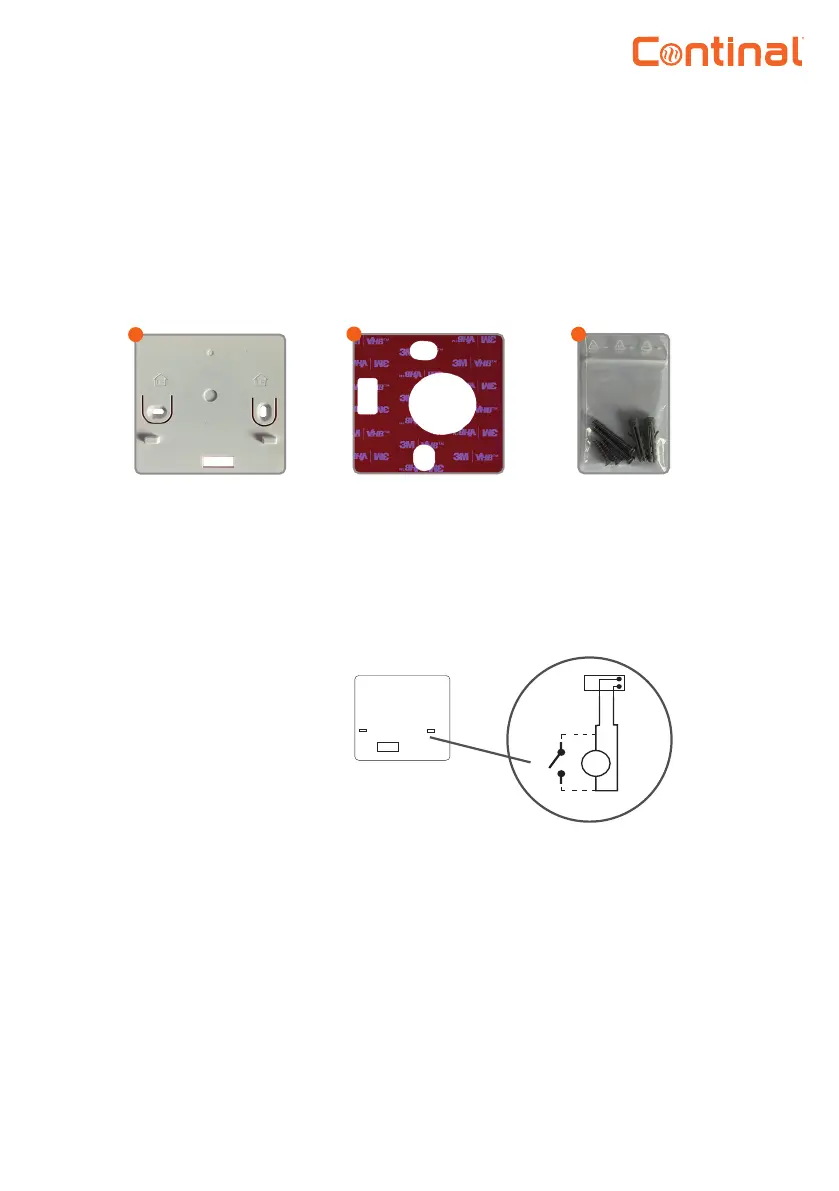

Mounting: To wall mount the thermostat, use the accessories supplied. (1) The wall plate can be
mounted by using either the supplied (2) self-adhesive mounting tape or (3) the mounting screws.
Once in place, just attach the thermostat (both thermostat and plate have built-in-magnets).
Wiring diagram
