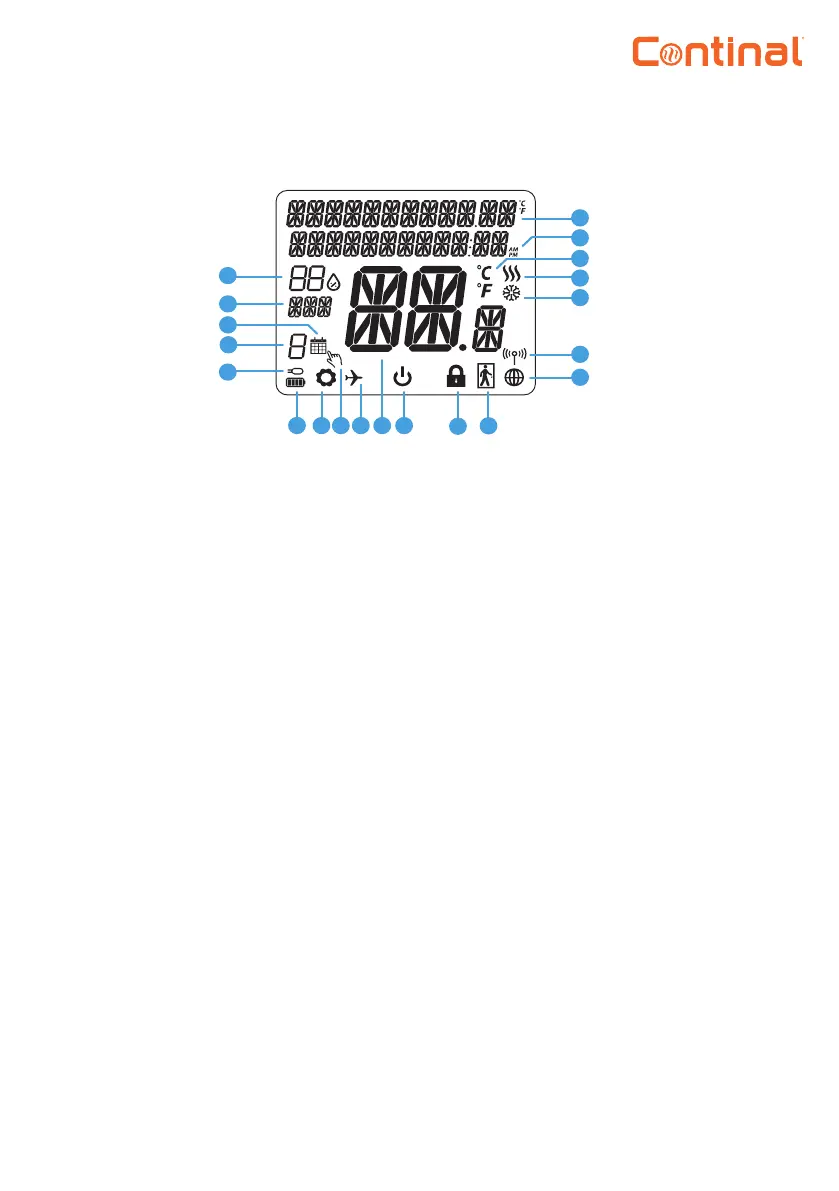

2. LCD icon description
1. Menu / Settings description + clock
2. AM / PM
3. Temperature unit
4. Heating indicator (animated when demand)
5. Cooling indicator (animated when demand)
6. RF connection indicator
7. Internet connection indicator
8. Occupancy sensor
9. Key lock function
10. Standby mode icon
2
8
9
10111214
15
20
19
18
17
16
1
3
4
5
6
7
13
11. Current temperature / setpoint temperature
12. Holiday mode
13. Temporary override mode
14. Settings icon
15. Status indicator
16. External / oor temperature sensor indicator
17. Schedule programme number
18. Schedule mode icon
19. Day indicator / SET information
20. Current humidity value
