Control Systems 3B6 SLIM - Calibration Program Confirmation; Confirming Selected Program and Parts of Line

System Password
11
3B6
Enter
ACT
a
r
h
l
STOP
Index
+
-

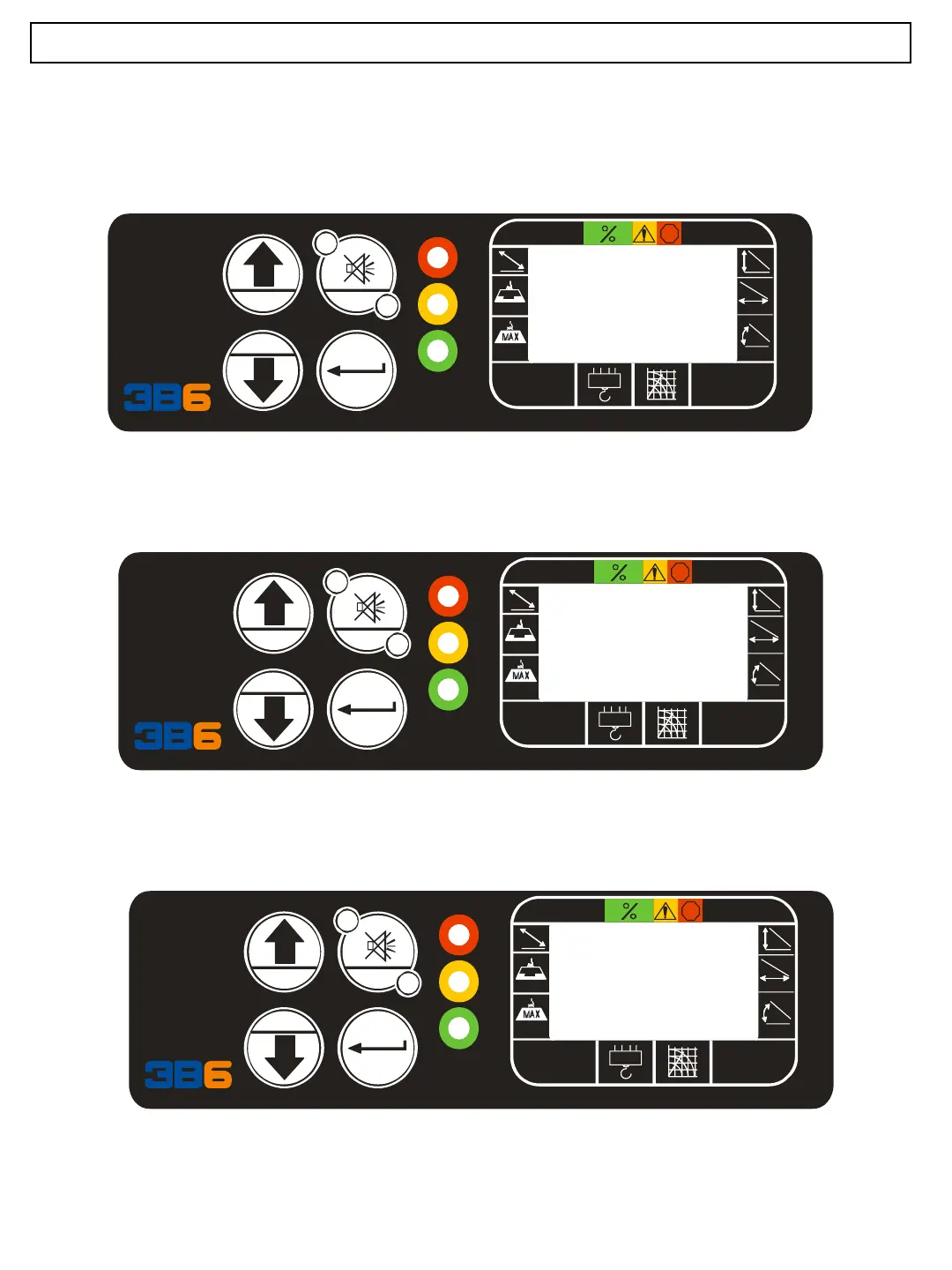

The display will require confirmation of the program in order to continue. (Note: the
display will indicate last program selected)
Enter
ACT
a
r
h
l
STOP
Index
+
-
MAIN BOOM 360
Please Confirm
Loading Table
ROPE 1
Press and release the ENTER pushbutton again to confirm the parts of line (Note: the
display will indicate last parts of line selected)
Enter
ACT
a
r
h
l
STOP
Index
+
-
0 28
1.1 10.2
34.1 6 1 68
The display now is confirmed and ready to enter the calibration area. ( Note: if an alarm
code or message is present in the top center area of the display, it will be flashing on the
display) This is normal if the angle or length has not been set yet.
