Control Systems 3B6 SLIM - Calibration Data Saving; Saving Completed Calibration Settings

Calibration Save
14

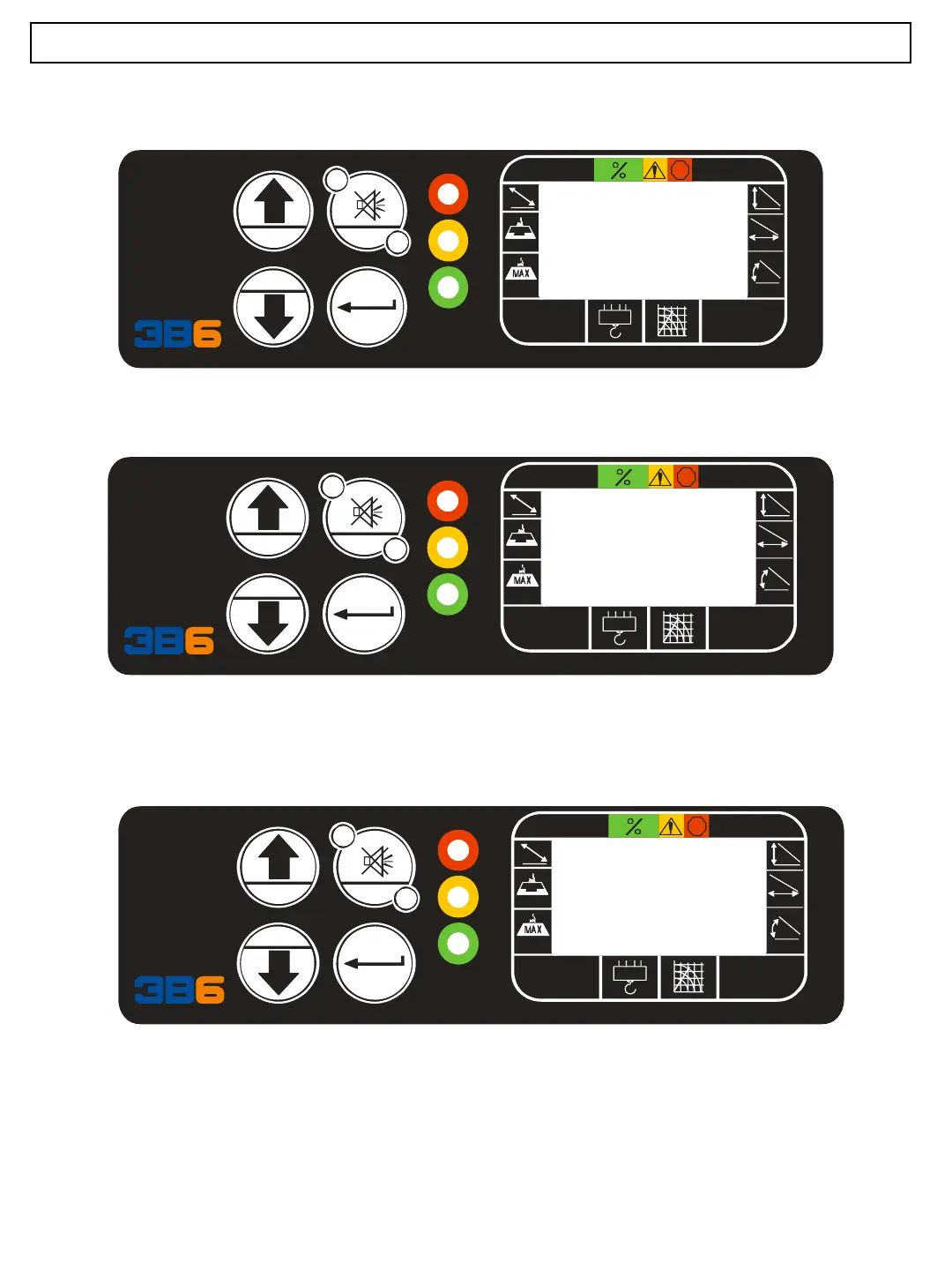

Press and release the UP arrow pushbutton until you see the 01 Save menu.
3B6
Please Confirm
Enter
ACT
a
r
h
l
STOP
Index
+
-
Enter
ACT
a
r
h
l
STOP
Index
+
-
Press and release the ENTER push button and the display will indicate “ Saving in
Progress” Do not move the machine when saving data!
Enter
ACT
a
r
h
l
STOP
Index
+
-
TRANSDUCER
01 Save
Saving In Progress
DONE !
Once it is saved it will indicate DONE! The calibration is completed. Now we
can set the rotation pot.
Press and hold the INDEX pushbutton to return to the main display screen.
