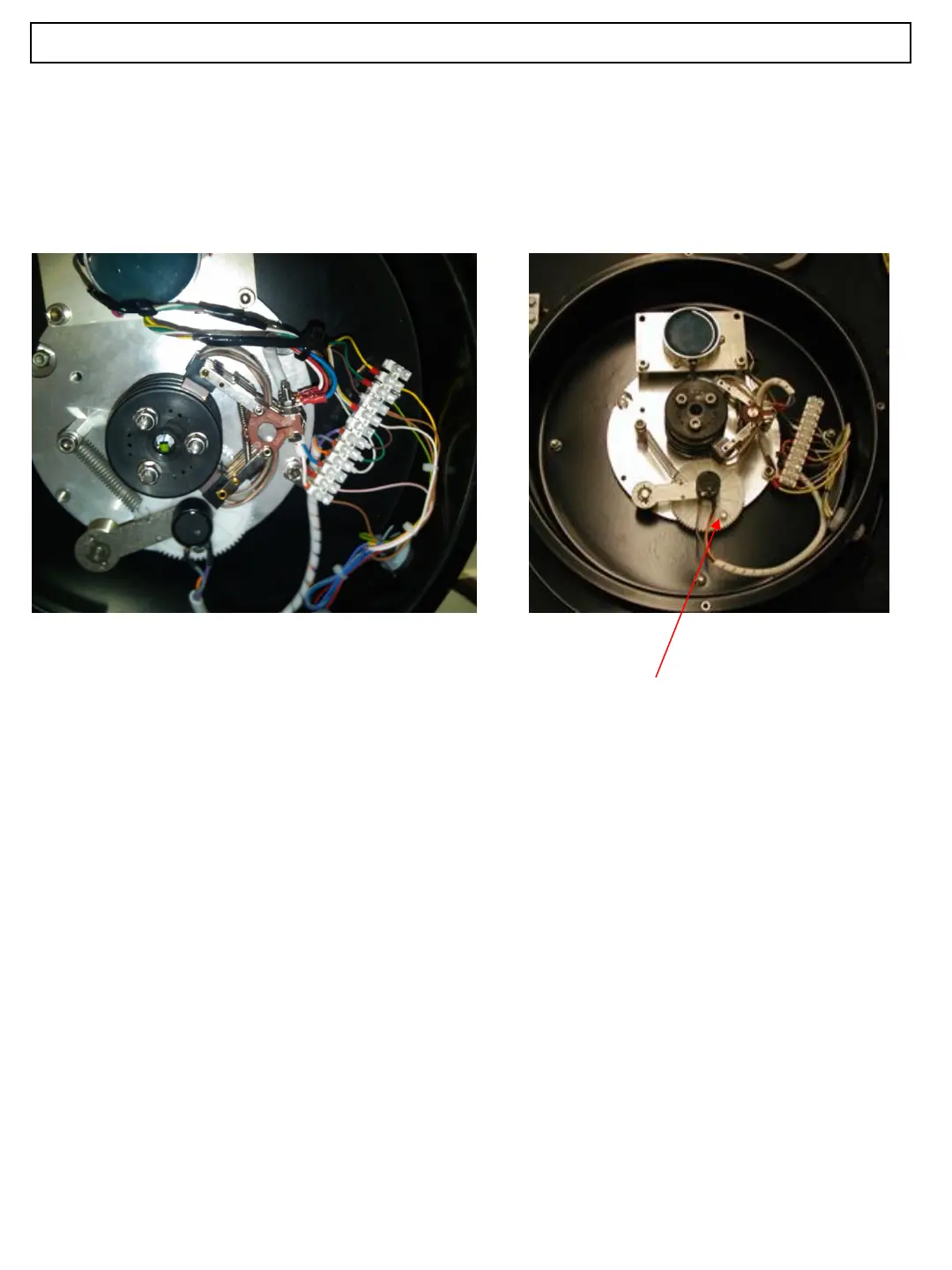

Cable Reel Set-Up
3B6
Remove the cable reel cover using a 3mm allen wrench to
connect the wiring on cable assembly (T109064) to the cable reel
terminal strip. Use the wiring diagram on page 18.
The Length gear is shipped with a bolt to disengage the length pot from
the reel drive gear to avoid damage, in case the cable is released on accident.
We will remove this and discard once we have the boom fully retracted and set the
Length start voltage at .250vdc. The range for the min length setting with the boom fully
retracted is .248 to.253 vdc. Measure between the AGND wire (ground/white) and AN1 wire
(length output/green)wire.
This must be set prior to the run in process or verification. Replace the cover and tighten
the 4 screws, make certain the rubber o-ring gaskets are on the screws to avoid
moisture intrusion later.
Note!
Make certain the cable is spooled properly on the cable reel before setting the length
By fully extending the boom and then retracting the boom allowing the wire to spool on the
drum properly..
9
